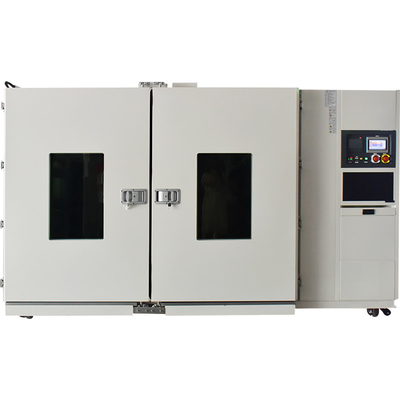

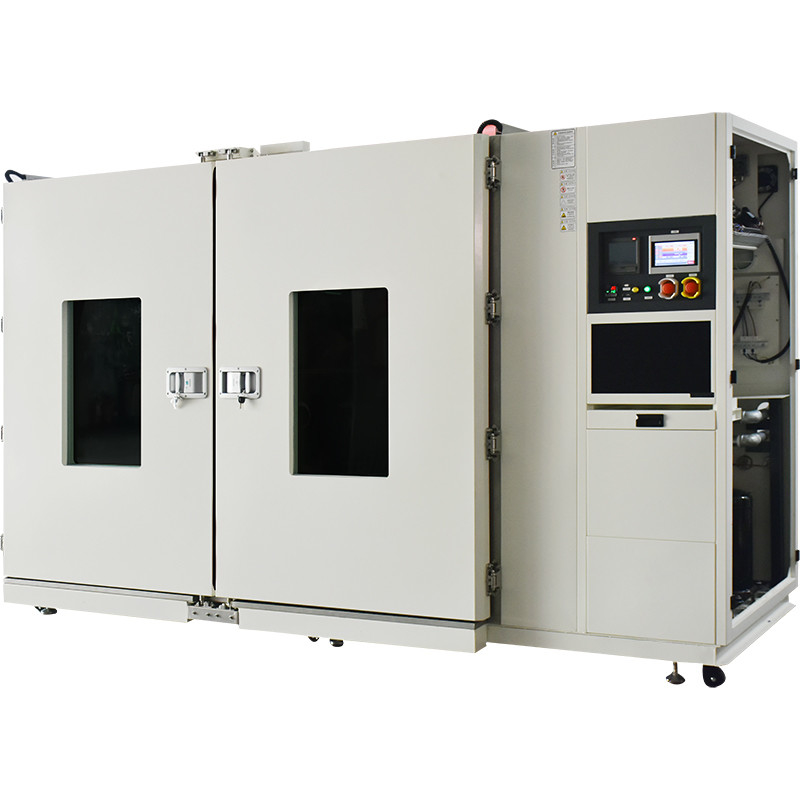

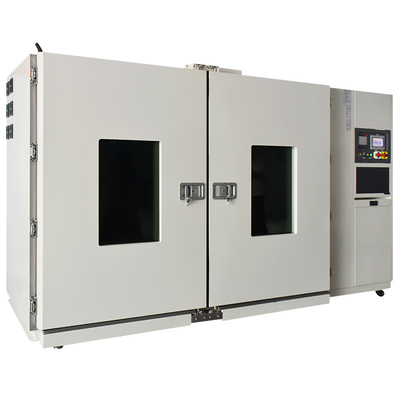

Precise SS Walk In Humidity Chamber , Medical Industry Walk In Climate Chamber

Precise SS Walk In Humidity Chamber , Medical Industry Walk In Climate Chamber

Brand Name: PRECISION
Model Number: WIC-15
MOQ: 1
Price: $6000
Payment Terms: T/T
Supply Ability: 100/month
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Customized Support:
OEM ODM
Temp Range:
+150~-70℃
Internal Material:
304 Stainless Steel
External Material:
Powder Coated #304 Stainless Steel
Temperature Uniformity ℃:
0.01
Humidity Uniformity % R. H.:
0.1
Temperature Stability ℃:
±0.3
Packaging Details:
Standard export packaging
Supply Ability:
100/month
Highlight:

Medical Industry Walk In Humidity Chamber

,

Precise Walk In Climate Chamber

,

Stainless Steel Walk In Chamber

Product Description

Custom Environmental Walk-In Stability Chambers for Medical Industry



Product Description:



Our custom-engineered environmental walk-in stability chambers are designed to meet the stringent stability testing requirements of the medical industry. These chambers provide large-scale, controlled environments for evaluating the long-term stability and shelf life of pharmaceutical products, medical devices, and other healthcare materials. By precisely controlling temperature and humidity, our chambers ensure accurate and reliable testing in compliance with industry standards and regulatory requirements.



Key Features:

  • Customizable Design:
    • Tailored to meet specific medical industry testing requirements and product dimensions.
    • Customizable interior dimensions, temperature ranges, and humidity ranges.
  • Large-Scale Testing Environment:
    • Provides ample space for testing large quantities of products or entire pallets.
    • Facilitates easy access for testing personnel during operation and maintenance.
  • Precise Environmental Control:
    • Advanced temperature and humidity control systems for stable and uniform testing conditions.
    • Ability to simulate various controlled environmental conditions, including long-term storage and accelerated aging.
  • Real-Time Monitoring and Data Logging:
    • Integrated high-precision sensors and data acquisition systems for continuous monitoring and recording of test data.
    • Provides detailed reports and data analysis for compliance and product evaluation.
  • Compliance with Industry Standards:
    • Designed to meet or exceed relevant industry standards, such as ICH guidelines and GMP requirements.
    • Robust safety features.
  • User friendly control interface.

3. Specifications

Model WIC-6 WIC-11 WIC-15 WIC-48 WIC-66 WIC-100
Inside dimension(W x D x H) mm 200 x 220 x 150 250 x 220 x 200 350 x 220 x 200 500 x 240 x 400 500 x 240 x 400 100 x 100 x 100
Outside dimension(W x D x H) mm 280 x 260 x 180 350 x 260 x 230 455 x 260 x 230 610 x 280 x 430 680 x 280 x 530 155 x 190 x 160
Internal material #304 Stainless Steel
External material Powder coated #304 Stainless Steel
Temperature range + 150℃~ - 70 ℃
Humidity range 20% ~ 98% R. H
Temperature resolution ℃ 0.01
Humidity resolution % R. H. 0.1
Temperature stability ℃ ±0.5
Humidity stability % R. H. ±2
Heating time 30min
Cooling time -40℃/50min, -20℃/30min
Air circulation system Mechanical convection system
Cooling system Sirocco Fan
Heating system Sus316 Stainless steel Efficient heater
Humidification system Steam Generator
Humidification water supply Reservoir, Sensor-controller solenoid valve, recovery-recycle system

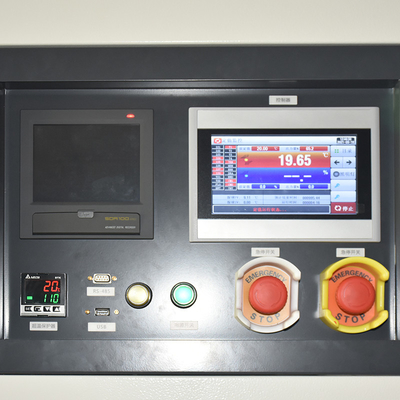

Controller Touch panel
Electrical power requirements Please contact us for requirements of specific models
Safety device Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light



Applications:

  • Pharmaceutical stability testing
  • Medical device stability testing
  • Packaging stability testing
  • Shelf-life testing of healthcare products
  • Environmental simulation for research and development

Precise SS Walk In Humidity Chamber , Medical Industry Walk In Climate Chamber 0Precise SS Walk In Humidity Chamber , Medical Industry Walk In Climate Chamber 1

Benefits:

  • Ensures compliance with regulatory requirements.
  • Enhances product stability and shelf life.
  • Accelerates product development and validation.
  • Reduces the risk of product degradation.
  • Provides accurate and reliable testing data.



Why Choose Us:

We specialize in providing high-quality environmental stability testing solutions for the medical industry. Our custom walk-in chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results. We offer comprehensive support, including design, installation, and ongoing maintenance.



Contact our expert team today to discuss your specific medical industry stability testing requirements and discover how our custom walk-in chambers can optimize your testing processes.
