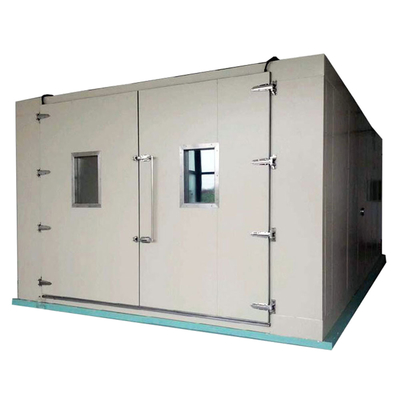

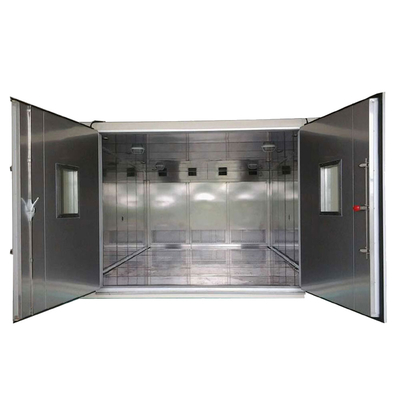

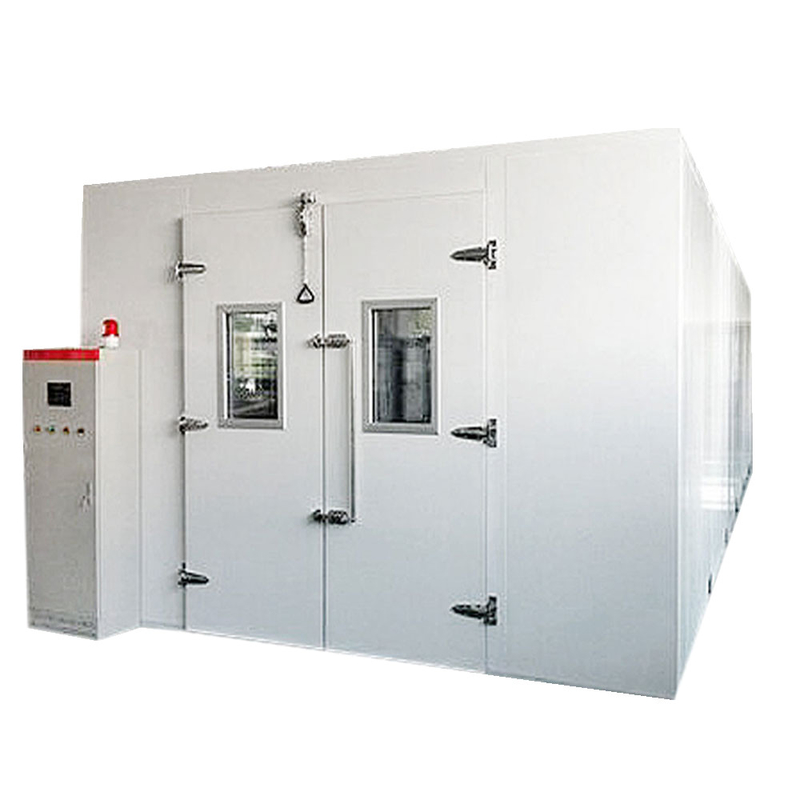

Touch Screen Walk In Stability Chambers for Pharmaceutical Industry Customized

3. Specific Parameters

• Model	WIV-6	WIC-11	WIC-15	WIC-48	WIC-66	WIC-1000
  Inside dimension(W x D x H) mm	200 x 220 x 150	250 x 220 x 200	350 x 220 x 200	500 x 240 x 400	500 x 240 x 400	100 x 100 x 100
  Outside dimension(W x D x H) mm	280 x 260 x 180	350 x 260 x 230	455 x 260 x 230	610 x 280 x 430	680 x 280 x 530	155 x 190 x 160
  Internal material	#304 Stainless Steel
  External material	Powder coated #304 Stainless Steel
  Temperature range	+ 150℃~ - 70 ℃
  Humidity range	20% ~ 98% R. H
  Temperature resolution ℃	0.01
  Humidity resolution % R. H.	0.1
  Temperature stability ℃	±0.5
  Humidity stability % R. H.	±2
  Heating time	30min
  Cooling time	-40℃/50min, -20℃/30min
  Air circulation system	Mechanical convection system
  Cooling system	Sirocco Fan
  Heating system	Sus316 Stainless steel Efficient heater
  Humidification system	Steam Generator
  Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
  Controller	Touch panel
  Electrical power requirements	Please contact us for requirements of specific models
  Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

 Application Areas and Success Stories

• Drug Stability Testing
  • A pharmaceutical company used the Customized Walk-In Environmental Chamber to test a new antibiotic formulation. The tests revealed that the drug was sensitive to high humidity, which could lead to a significant reduction in potency. By adjusting the packaging to include a desiccant and optimizing the storage conditions, they were able to maintain the drug's efficacy for a longer period, ensuring its effectiveness in treating infections.
  • An R&D institution in the pharmaceutical field utilized the chamber to study the long-term effects of temperature and humidity on a new cancer drug. The data obtained helped them develop a more stable formulation that could withstand a wider range of environmental conditions, improving the drug's shelf life and making it more accessible to patients in different regions.
• Vaccine Storage and Transportation Studies
  • A vaccine manufacturer used the test chamber to evaluate the stability of a new COVID-19 vaccine during transportation. The temperature and humidity cycling tests identified potential issues with the vaccine's vial seals, which could lead to leakage and loss of potency. By improving the seal design and packaging, they were able to ensure the safe and effective delivery of the vaccine to different parts of the world.
  • A research organization focused on vaccine development used the Customized Walk-In Environmental Chamber to study the impact of temperature excursions on different vaccine formulations. The results led to the development of new temperature-tolerant vaccine formulations and improved cold chain management strategies, reducing the risk of vaccine wastage.
• Medical Device Environmental Testing
  • A medical device company used the chamber to test the durability of a new insulin pump under different temperature and humidity conditions. The tests showed that the pump's electronics were sensitive to high humidity, which could cause malfunctions. By improving the device's waterproofing and using more humidity-resistant components, they were able to enhance the pump's reliability and safety for patients.
  • An R&D team in the medical device industry utilized the chamber to study the effects of temperature and humidity on the accuracy of a new blood glucose meter. The data obtained led to the development of a calibration algorithm that compensated for environmental changes, ensuring accurate readings in different environmental conditions.

Benefits:

• Ensures product quality, safety, and efficacy.
• Complies with regulatory requirements and industry standards.
• Accelerates product development and validation processes.
• Reduces the risk of product degradation and recalls.
• Provides accurate and reliable testing data.

Why Choose Us:

We specialize in providing high-quality, customized stability testing solutions for the pharmaceutical industry. Our walk-in chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results. We offer comprehensive support, including design, installation, validation, and ongoing maintenance.

Contact our expert team today to discuss your specific pharmaceutical stability testing requirements and discover how our customized walk-in chambers can optimize your testing processes.
