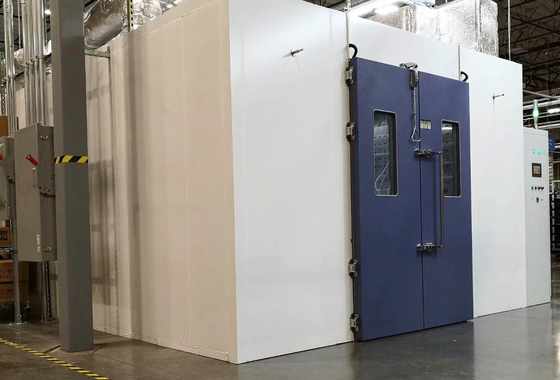

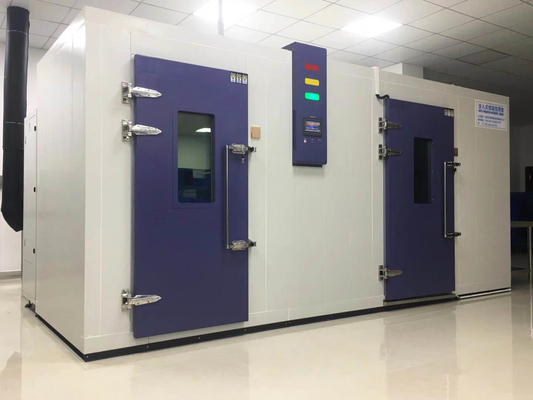

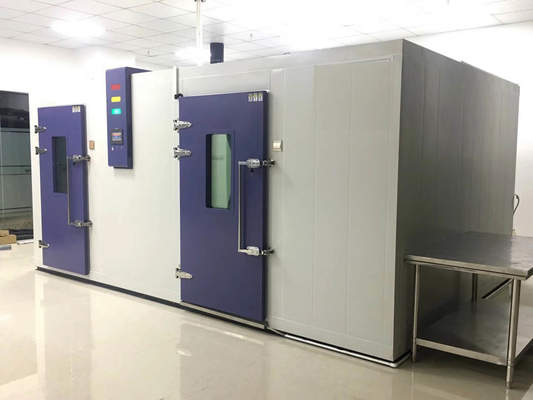

Stainless Steel Walk In Humidity Chamber For ISO 12219-1 VOC Whole Vehicle

1. Product Name and Purpose

2. Product Features

• Spacious and Controlled Chamber Environment
  • The chamber is constructed with a large interior space to accommodate whole vehicles. The walls are made of high-quality, inert materials that do not contribute to VOC emissions and provide excellent insulation. The door is designed with a reliable sealing mechanism to prevent any external contaminants from entering and to maintain a stable internal environment. The chamber is equipped with a powerful ventilation system that can control the air exchange rate precisely, ensuring accurate sampling and analysis of VOCs.
• Precision Temperature and Humidity Control
  • Temperature Control: Capable of achieving a wide temperature range from 0°C to 40°C with an accuracy of ±0.5°C. The system utilizes advanced heating and cooling units, along with multiple temperature sensors, to ensure uniform temperature distribution throughout the chamber. This is crucial as temperature can significantly affect the emission rates of VOCs from vehicle interior materials.
  • Humidity Control: The humidity range extends from 30% to 70% relative humidity, with an accuracy of ±3% RH. A combination of humidifiers and dehumidifiers, coordinated by a sophisticated control algorithm, enables precise humidity adjustments. Humidity levels can impact the adsorption and desorption of VOCs, so accurate control is essential for reliable testing.
• VOC Sampling and Analysis System
  • The chamber is integrated with a state-of-the-art VOC sampling system. It uses high-quality sorbent tubes or other sampling media to collect VOCs from the vehicle cabin air. The sampling system is connected to advanced analytical instruments such as gas chromatographs - mass spectrometers (GC-MS) or other VOC analyzers. These instruments can detect and quantify a wide range of VOCs with extremely high sensitivity and accuracy. The system is designed to comply with the sampling and analysis procedures specified in the ISO 12219-1 standard.
• Intuitive Control Panel and Data Acquisition Interface
  • The control panel is user-friendly and allows operators to easily set and adjust test parameters such as temperature, humidity, air exchange rate, and sampling time. It provides real-time displays of the current environmental conditions and sampling status. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes temperature and humidity histories, VOC concentration data over time, and any other parameters related to the test. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats.
• Safety Features and Alarms
  • Over-temperature and over-humidity protection systems are in place to prevent damage to the chamber and the vehicle being tested. Emergency stop buttons are easily accessible. Alarms are triggered for abnormal temperature fluctuations, humidity levels, ventilation system malfunctions, or any other equipment failures. The chamber is also equipped with gas detection sensors to monitor the levels of any potentially harmful gases that may be released during the test, ensuring the safety of operators.

3. Specific Parameters

• Temperature Range and Accuracy
  • The 0°C to 40°C temperature range with ±0.5°C accuracy allows for testing under different climate conditions that a vehicle may experience. For example, in hot climates, the emission of certain VOCs may increase, while in cold climates, the behavior of materials and VOC emissions may change. The accurate temperature control ensures that the test conditions are precisely maintained, providing reliable and repeatable results.
• Humidity Range and Accuracy
  • The 30% to 70% RH humidity range and ±3% RH accuracy enable a comprehensive evaluation of the effect of humidity on VOC emissions. High humidity can cause some materials to release more VOCs, while low humidity may have the opposite effect. Precise humidity control is necessary to understand and quantify these relationships.
• Air Exchange Rate and Sampling Time
  • The air exchange rate can be adjusted from 0.5 to 2.0 air changes per hour, depending on the test requirements. The sampling time can range from a few minutes to several hours, allowing for the detection of both short-term and long-term VOC emissions. These parameters are crucial for accurately measuring the concentration of VOCs in the vehicle cabin air and complying with the ISO 12219-1 standard.
• Testing Volume and Payload Capacity
  • The chamber is designed to accommodate a wide range of vehicle sizes, with a testing volume typically ranging from 20 m³ to 50 m³. The payload capacity is sufficient to handle the weight of a whole vehicle, including passenger cars, SUVs, and light trucks.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 100 Hz for environmental parameters such as temperature and humidity. For VOC concentration data, the sampling frequency depends on the analytical instrument used but can typically range from a few minutes to an hour. The resolution of the temperature data is 0.1°C, humidity data 0.1% RH, and VOC concentration data can be as low as parts per billion (ppb), depending on the analyzer.

4. Product Functions

• Accurate Simulation of Real-World Conditions
  • The chamber replicates the temperature and humidity conditions that a vehicle may encounter in different environments. By subjecting the whole vehicle to these controlled conditions, it allows for a realistic assessment of VOC emissions. This is crucial as the interior air quality of a vehicle can be affected by factors such as outdoor temperature, humidity, and the vehicle's usage patterns.
• Identification and Mitigation of VOC Sources
  • Through detailed testing and analysis, the chamber helps automotive manufacturers identify the specific components and materials that are major sources of VOC emissions. This information can then be used to select alternative materials or modify manufacturing processes to reduce VOC emissions. For example, if a particular type of upholstery is found to emit high levels of a harmful VOC, manufacturers can explore other fabric options or treatment methods.
• Product Design Optimization and Quality Control
  • The data obtained from the chamber can be used to optimize the design of vehicle interiors. Engineers can make informed decisions about material selection, component placement, and ventilation system design to improve the overall air quality inside the vehicle. The chamber also serves as a vital tool for quality control, ensuring that each vehicle model meets the required VOC emission standards.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet the ISO 12219-1 standard and other relevant regulations. The automotive industry is increasingly regulated in terms of vehicle interior air quality, and the test results obtained from the chamber can be used to certify that the vehicle meets these standards, enhancing consumer confidence.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Custom Walk-In Environmental Test Chambers for ISO 12219-1 VOC - Whole Vehicle are manufactured under strict quality control procedures. Each component, from the chamber structure and insulation materials to the temperature and humidity control units, VOC sampling and analysis system, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent automotive testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the ISO 12219-1 standard and other international and national standards for vehicle interior air quality testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the automotive industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Material Selection for Interior Components
  • An automotive manufacturer was developing a new model and used the chamber to test different upholstery materials. The testing revealed that a certain synthetic leather material had significantly higher VOC emissions compared to a natural fabric option. Based on these results, the manufacturer opted for the natural fabric, improving the interior air quality of the vehicle.
• Ventilation System Optimization
  • A research institution used the chamber to evaluate the effectiveness of a new vehicle ventilation system in reducing VOC concentrations. By testing the vehicle with different ventilation settings and analyzing the VOC levels, they were able to optimize the system design to enhance air circulation and reduce the build-up of harmful gases.
• Compliance Testing of New Vehicle Models
  • Automotive manufacturers use the chamber to conduct compliance testing of their new vehicle models before mass production. This ensures that the vehicles meet the ISO 12219-1 standard and can be marketed without any regulatory issues related to interior air quality.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of automotive air quality testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the automotive industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the vehicle models to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for vehicle interior air quality testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Custom Walk-In Environmental Test Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with ISO 12219-1 and other vehicle interior air quality testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
