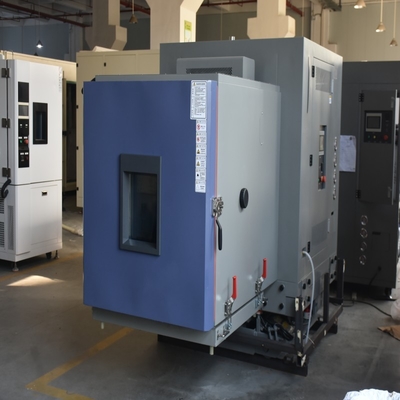

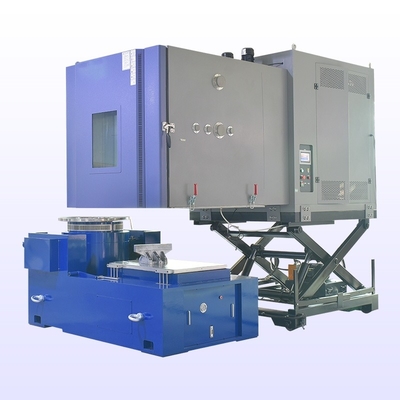

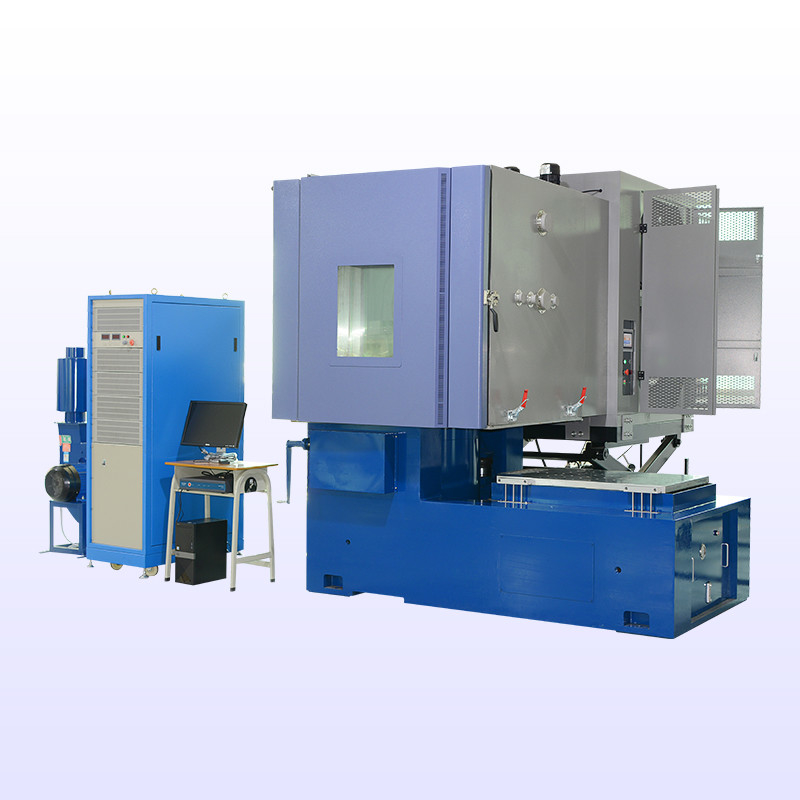

Environmental Chamber with Vibration System for Three Separate Environmental Conditions

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Vibration Force:

2000kg.f

Shock Force:

2000kg.f

Displacement:

100mmp-p

Velocity:

2.0m/s

Max Acceleration:

100g

Temperature Range:

-40°C To +150°C

Humidity Range:

10% To 95%

Dimension:

100 X 100 X 100cm

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

Building Materials Test Chambers

Random Environmental Test Chambers

Building Materials Environmental Test Chambers

Product Description

Environmental Chamber with Vibration System for Three Separate Environmental Conditions

In the ever - evolving landscape of product testing and quality assurance, the need for comprehensive and accurate environmental simulation has become increasingly crucial. Our Environmental Chamber with a Vibration System, designed to replicate three separate environmental conditions, offers a cutting - edge solution for industries seeking to evaluate the performance and reliability of their products under diverse and challenging scenarios.

Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications Across Diverse Industries

Electronics Industry

In the electronics sector, where products are becoming increasingly miniaturized and sensitive to environmental factors, our environmental chamber with a vibration system is invaluable. Printed circuit boards, microchips, and consumer electronics like smartphones, tablets, and laptops are tested to ensure they can withstand the combined effects of temperature, humidity, and vibration. For instance, a smartphone's battery life and performance can be affected by high temperatures and vibrations during transportation. By subjecting these devices to comprehensive environmental testing in our chamber, manufacturers can identify and address potential issues such as solder joint failures, corrosion of components, or malfunctioning of electronic circuits due to environmental stress. This helps in improving the quality and reliability of electronic products, reducing product returns, and enhancing customer satisfaction.

Automotive Sector

Automotive manufacturers rely on our environmental chamber to test a wide range of components. Engines, transmissions, in - car electronics, and suspension systems are all evaluated under different environmental conditions. For example, an engine's performance can be tested at high temperatures and under vibration to simulate the conditions of driving in a hot climate with rough roads. In - car electronics, such as infotainment systems and navigation units, are tested to ensure they can function properly in various humidity levels and while being subjected to vibrations from the vehicle's movement. By conducting these tests, automotive manufacturers can improve the durability and performance of their vehicles, leading to safer and more reliable products for consumers.

Aerospace and Defense

In the aerospace and defense industries, the reliability of equipment is of utmost importance. Our environmental chamber is used to test components for aircraft avionics, military communication devices, and missile guidance systems. Avionics systems need to function flawlessly in high - altitude, low - temperature environments while being subjected to vibrations during flight. Military communication devices must be able to operate in extreme humidity conditions and withstand the vibrations of military vehicles. By subjecting these components to the three - fold environmental simulation in our chamber, aerospace and defense manufacturers can ensure the safety and reliability of their equipment, which is crucial for mission success and the protection of military personnel.

If you are looking for a comprehensive and reliable solution for testing your products under multiple environmental conditions, our Environmental Chamber with a Vibration System is the ideal choice. Contact us today to discuss your specific testing requirements and let us help you enhance the quality and performance of your products.
