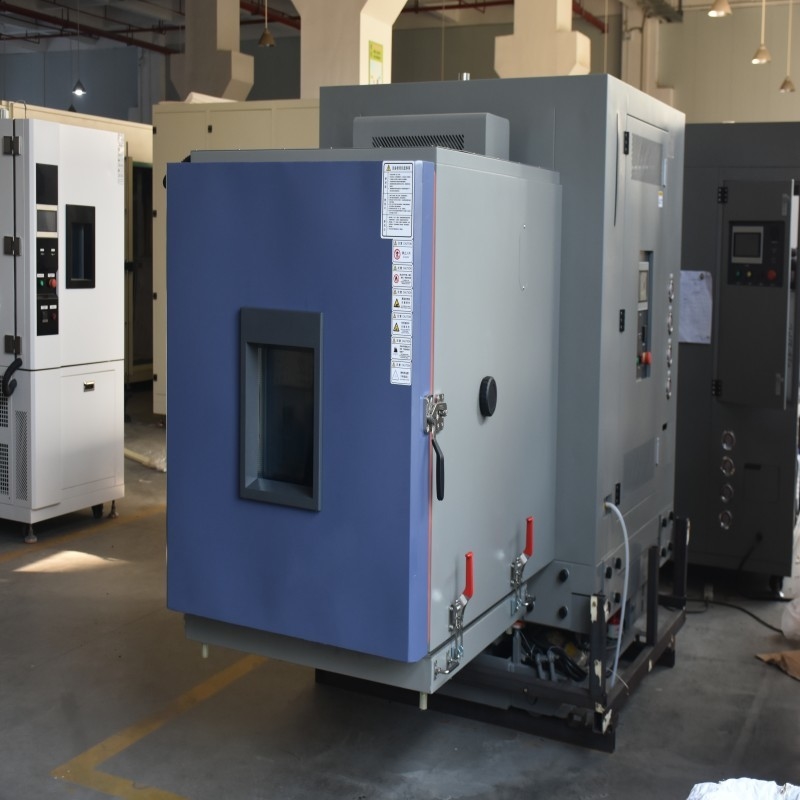

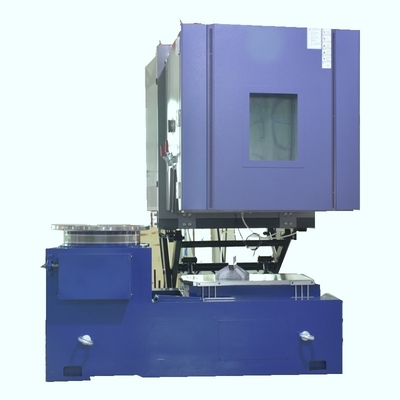

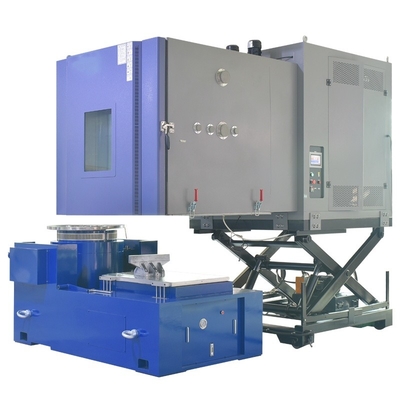

MIL-STD Compliant Vibration Test Chamber Multi Axis Vibration Testing Machine

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Displacement:

100mmp-p

Velocity:

2.0m/s

Max Acceleration:

100g

Temperature Range:

-40°C To +150°C

Humidity Range:

10% To 95%

Shock Force:

6000kg.f

Vibration Force:

3000kg.f

Dimension:

100 X 100 X 100cm

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

MIL-STD Compliant Vibration Test Chamber

Multi Axis Vibration Test Chamber

Multi Axis Vibration Testing Machine

Product Description

MIL - STD Standard Vibration Test Chambers Conforming with MIL - STD 810, 781 and 883

In the demanding worlds of military and aerospace, where equipment reliability is non - negotiable, our MIL - STD Standard Vibration Test Chambers stand as a paragon of precision and compliance. Engineered to meet the rigorous requirements of MIL - STD 810, 781, and 883, these chambers play a crucial role in ensuring that hardware and components can withstand the harshest vibration conditions.

Advanced Vibration Simulation Capabilities

Wide Frequency Range

Our MIL - STD - compliant test chambers can generate vibrations over a broad frequency range, typically from 5Hz to 2000Hz. This wide spectrum enables the simulation of a diverse range of vibration scenarios. Low - frequency vibrations around 5 - 50Hz can mimic the vibrations during transportation in trucks or the idling of engines. Higher frequencies up to 2000Hz can replicate the vibrations from high - speed machinery, weapon discharges, or the operation of internal components in aircraft. The ability to cover such a wide frequency range ensures that all types of military and aerospace equipment, from large - scale vehicles to small - scale electronic components, can be tested under relevant vibration conditions.

Precise Amplitude Control

The amplitude of vibration is a critical parameter in MIL - STD testing. Our chambers offer precise control over vibration amplitude, with the ability to adjust it according to the specific requirements of each standard and test. Whether it's a delicate microelectronic component that requires a low - amplitude vibration test or a robust military vehicle component that can withstand high - amplitude vibrations, our system can be calibrated accordingly. This precision in amplitude control ensures that the test results accurately reflect the performance of the equipment under real - world vibration stress levels.

Multi - Axis Vibration Testing

Military and aerospace equipment often experiences vibrations from multiple directions simultaneously. Our test chambers support multi - axis vibration testing, typically in the X, Y, and Z axes. This multi - axis capability provides a more realistic simulation of the complex vibration patterns that equipment encounters in actual use. For example, an aircraft's avionics systems may experience vertical vibrations during takeoff and landing (Z - axis), horizontal vibrations during acceleration and deceleration (X - axis), and lateral vibrations during turns (Y - axis). By applying vibrations along these multiple axes, our chambers can comprehensively evaluate the structural integrity and performance of equipment under real - world vibration conditions.

Technical Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications in Military and Aerospace

Military Equipment Testing

In the military, a wide range of equipment is tested using our MIL - STD - compliant vibration test chambers. This includes communication devices, weapons systems, and military vehicles. Communication devices, such as radios and satellite communication terminals, need to function reliably in all environmental conditions, including those with intense vibrations. By subjecting these devices to vibration tests in our chambers, military engineers can ensure their performance under the most challenging circumstances. Weapons systems, such as missile guidance systems and firearm components, are also tested to ensure their accuracy and reliability in the face of vibrations. Military vehicles, including tanks, armored personnel carriers, and trucks, are tested to improve their structural integrity and the performance of their on - board systems.

Aerospace Component Validation

In the aerospace industry, components such as avionics systems, landing gear components, and engine parts are tested in our MIL - STD - compliant chambers. Avionics systems, which are critical for aircraft operation, need to be able to withstand the vibrations and environmental conditions during flight. Our test chambers can simulate the high - altitude low - temperature conditions, as well as the intense vibrations during takeoff, landing, and in - flight maneuvers. This helps aerospace manufacturers ensure the safety and reliability of their aircraft components. Landing gear components and engine parts are also tested to ensure their durability and performance under the extreme vibrations and loads they experience during aircraft operations.

If you are in the military or aerospace industry and are looking for a reliable MIL - STD - compliant vibration test solution, our MIL - STD Standard Vibration Test Chambers are the ideal choice. Contact us today to discuss your specific testing requirements and let us help you ensure the quality and reliability of your equipment.
