Robust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker System

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Vibration Force:

2000kg.f

Shock Force:

2000kg.f

Displacement:

100mmp-p

Velocity:

2.0m/s

Max Acceleration:

100g

Temperature Range:

-40°C To +150°C

Humidity Range:

10% To 95%

Dimension:

100 X 100 X 100cm

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

Robust Construction Vibration Test Chamber

Vibration Test Chamber with Electrodynamic Shaker

Product Description

AGREE Vibration Test Chamber with Electrodynamic Shaker System

Product Description:

Our AGREE Vibration Test Chamber, equipped with an advanced Electrodynamic Shaker System, is engineered to meet the stringent requirements of AGREE (Advisory Group on Reliability of Electronic Equipment) testing standards. This sophisticated system combines precise temperature and humidity control with a powerful electrodynamic shaker, enabling the simulation of complex environmental and mechanical stresses. This ensures the reliability and durability of your products under extreme conditions.

Key Features:

AGREE Standard Compliance: Designed to meet or exceed AGREE testing standards.
Electrodynamic Shaker System: Equipped with a high-performance electrodynamic shaker for precise and repeatable vibration generation.
Precise Environmental Control: Advanced control systems maintain accurate and uniform temperature and humidity conditions.
Customizable Vibration Profiles: Programmable vibration profiles allow for precise simulation of various vibration environments.
Data Acquisition and Analysis: Integrated data acquisition systems for real-time monitoring and comprehensive data analysis.
Robust Construction: Durable construction ensures reliable performance under demanding testing conditions.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

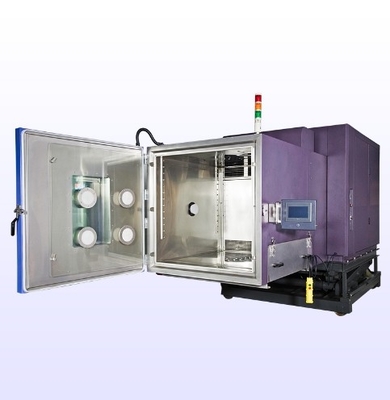

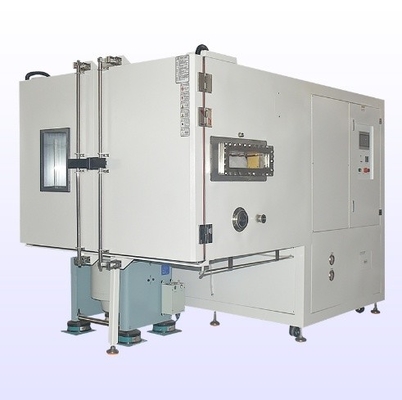

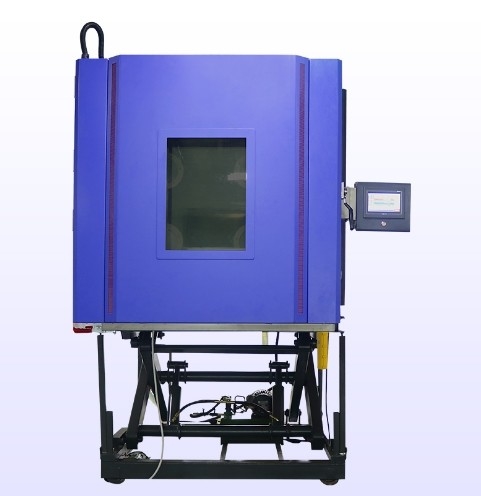

Robust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker System 0

Applications:

Environmental Stress Screening (ESS)
Reliability Testing
Product Qualification Testing
Aerospace and Defense Testing
Automotive Component Testing
Electronics Reliability Testing

Benefits:

Enhanced Product Reliability
Accelerated Product Development Cycles
Improved Quality Control
Reduced Testing Time and Costs
Increased Testing Flexibility

Why Choose Us:

We specialize in providing high-quality environmental testing solutions tailored to meet the specific needs of our customers. Our AGREE Vibration Test Chambers with Electrodynamic Shaker Systems are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.

Contact Us:

For more information about our AGREE Vibration Test Chamber with Electrodynamic Shaker System, please contact us today. We are committed to providing you with the best possible testing solutions.
