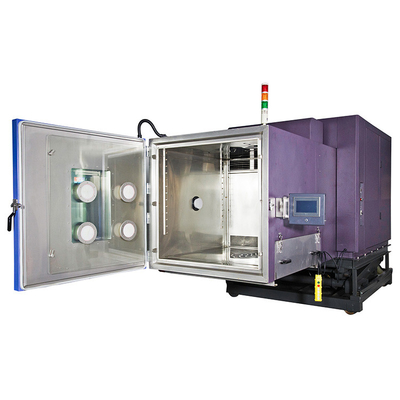

AGREE environmental Vibration Testing Instrument Modular Design Customizable

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Vibration Force:

2000kg.f

Shock Force:

2000kg.f

Displacement:

100mmp-p

Velocity:

2.0m/s

Max Acceleration:

100g

Temperature Range:

-40°C To +150°C

Humidity Range:

10% To 95%

Dimension:

100 X 100 X 100cm

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

AGREE Environmental Vibration Testing Instrument

Vibration Testing Instrument Modular Design

Product Description

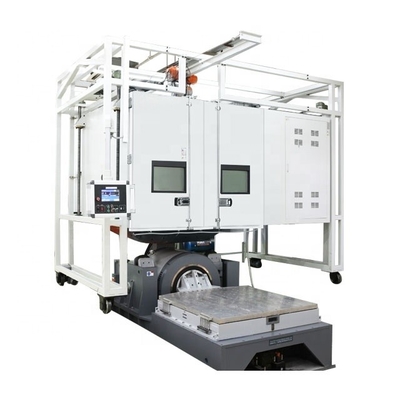

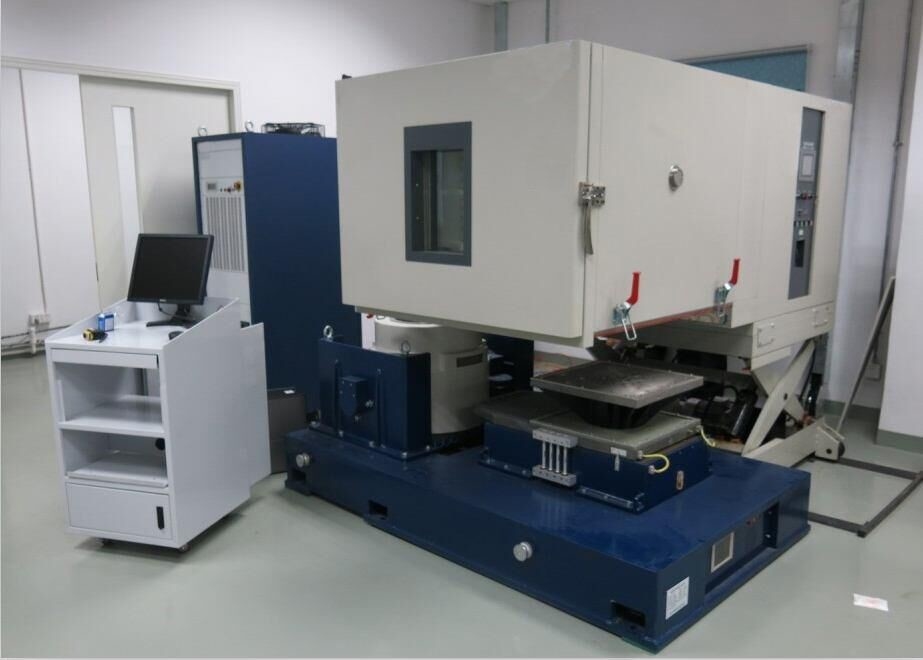

Integrated Vibration Testing Equipment for AGREE Chambers for Precision Guided Systems

Product Description:

Our advanced vibration testing equipment, integrated with our AGREE environmental chambers, is specifically engineered to meet the stringent reliability testing requirements of precision guided systems. This comprehensive solution combines precise temperature and humidity control with high-performance vibration capabilities, simulating the complex and demanding environmental conditions these systems encounter in real-world applications. Ensure the accuracy and reliability of your precision guided systems with our cutting-edge testing solutions.

Key Features:

AGREE Compliance: Designed to adhere to rigorous AGREE testing standards, ensuring reliable and repeatable test results.
High-Performance Vibration Equipment: Equipped with state-of-the-art electrodynamic or hydraulic shakers for precise and controlled vibration simulation.
Precision Environmental Control: Advanced temperature and humidity control systems for stable and uniform testing environments.
Customizable Vibration Profiles: Powerful control software allows for the creation of complex and customized vibration profiles.
Real-Time Data Acquisition and Analysis: Integrated high-precision sensors and data acquisition systems for real-time monitoring and analysis.
Robust Safety Features: Comprehensive safety measures to protect both equipment and test specimens.
Modular Design: Facilitates easy installation, maintenance, and future upgrades.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

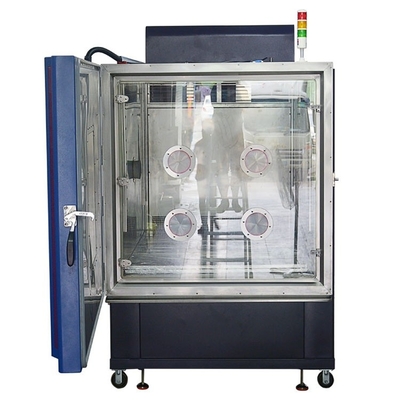

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Reliability testing of precision guided systems
Aerospace and defense equipment testing (missiles, rockets, satellites)
Military electronics testing
Navigation system testing
Inertial measurement unit (IMU) testing

Benefits:

Enhanced reliability and accuracy of precision guided systems
Reduced product development time and costs
Compliance with stringent military and aerospace standards
Improved product performance in harsh environments
Comprehensive testing solutions

AGREE environmental Vibration Testing Instrument Modular Design Customizable 0

Why Choose Us:

We are a leading provider of high-quality environmental testing equipment, with extensive experience in serving the aerospace, defense, and electronics industries. Our integrated vibration testing solutions for AGREE chambers are designed to deliver exceptional performance and reliability.

Contact us today to discuss your specific precision guided systems testing requirements and learn how our solutions can help you achieve your testing goals.
