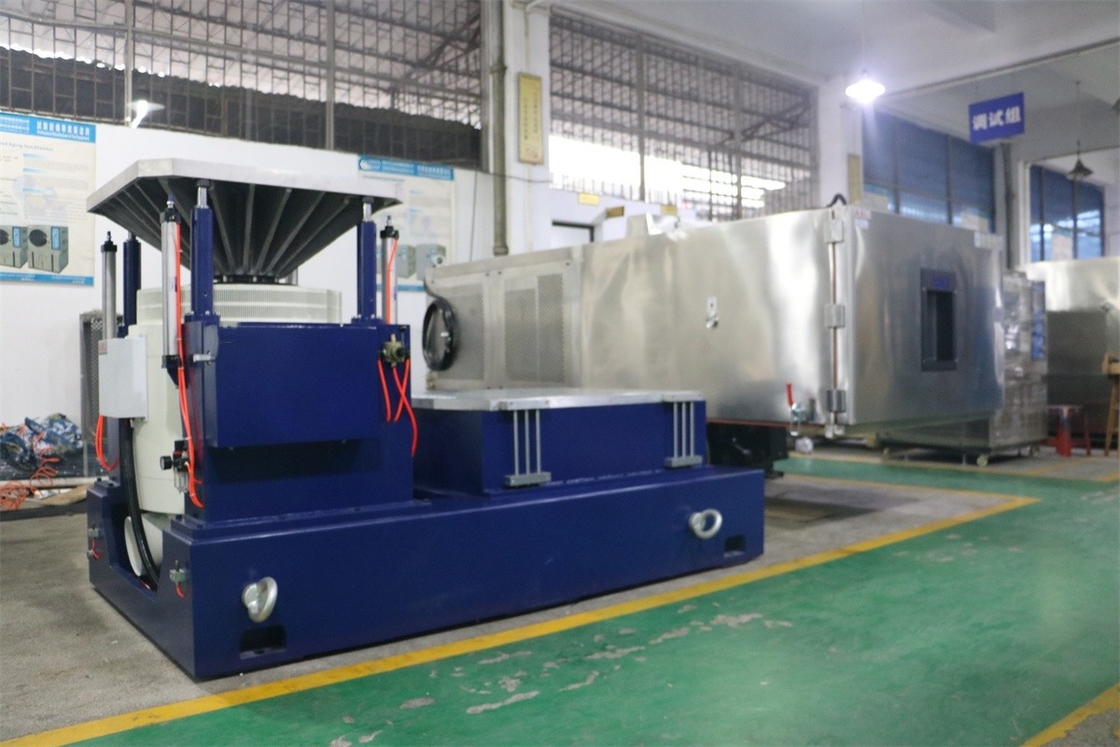

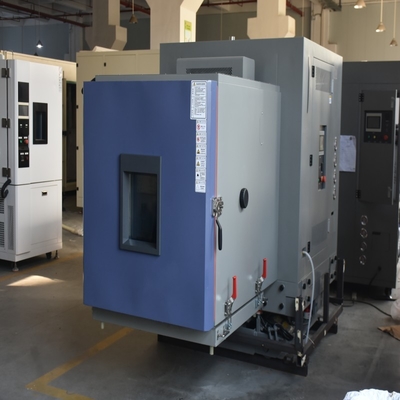

Combined Environment Chambers Vibration Shaker For Battery And Fuel Cell Testing

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Display:

LCD Touch Screen

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Heating System:

Electric Heating Wire

Temperature Range:

-70°C To 150°C

Chamber Material:

Stainless Steel

Power Supply:

AC 220V, 50/60Hz

Cooling System:

Mechanical Refrigeration

Certifications:

CE, ISO, RoHS

Humidity Range:

10% To 98% RH

Control System:

PID Microprocessor Controller

Vibration Frequency Range:

5 Hz To 2000 Hz

Insulation Material:

Polyurethane Foam

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

Fuel Cell Testing Environment Chambers

Battery Testing Environment Chambers

Touch Screen Combined Environmental Chamber

Product Description

Combined Environment Chambers for Battery & Fuel Cell Testing

Product Description:

Our Combined Environment Chambers are specifically designed for the rigorous environmental testing of batteries and fuel cells. These integrated systems combine precise temperature and humidity control with powerful vibration capabilities, allowing for the simulation of real-world operating conditions and accelerated aging. This comprehensive testing ensures the safety, reliability, and performance of these critical energy storage components.

Key Features:

Integrated Testing: Combines temperature, humidity, and vibration testing within a single, compact system.
Precise Environmental Control: Advanced control systems ensure accurate and stable temperature and humidity conditions.
Robust Vibration Capabilities: High-performance vibration systems capable of simulating a wide range of vibration profiles.
Battery & Fuel Cell Specific Design: Chambers are designed with safety features to protect both the testing equipment and the batteries/fuel cells being tested.
Data Acquisition and Analysis: Integrated data acquisition systems allow for real-time monitoring and comprehensive data analysis.
Customizable Solutions: Systems can be customized to meet specific testing requirements and industry standards.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Battery and fuel cell reliability testing
Environmental stress screening (ESS)
Product qualification testing
Research and development
Quality control

Benefits:

Ensures battery and fuel cell safety and reliability
Accelerates product development cycles
Improves product performance
Reduces testing costs
Meets industry standards

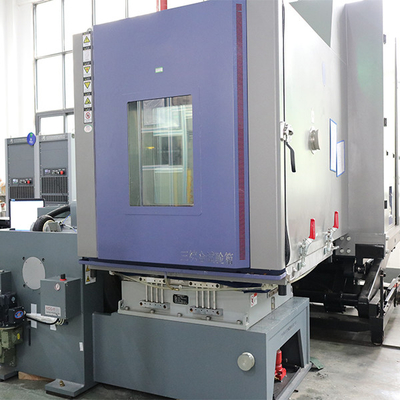

Combined Environment Chambers Vibration Shaker For Battery And Fuel Cell Testing 0

Why Choose Us:

We specialize in providing high-quality environmental testing solutions for the energy storage industry. Our Combined Environment Chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.

Contact Us:

For more information about our Combined Environment Chambers for Battery & Fuel Cell Testing, please contact us today. We are committed to providing you with the best possible testing solutions.
