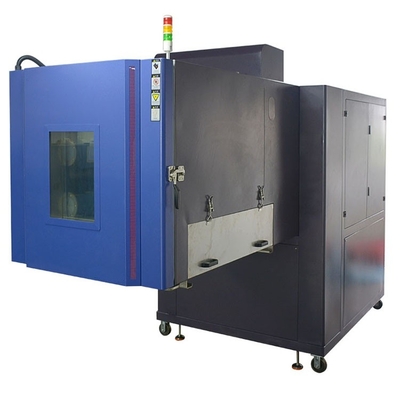

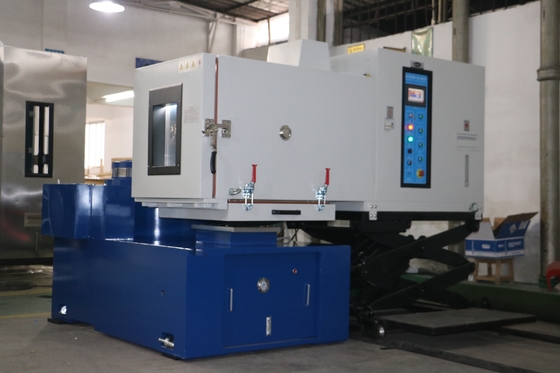

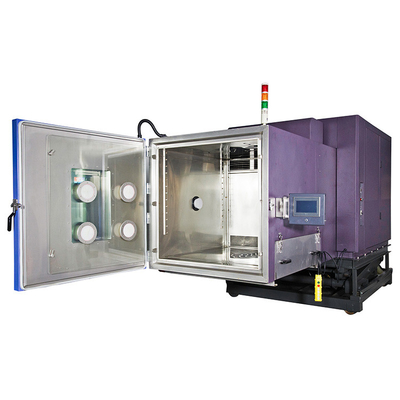

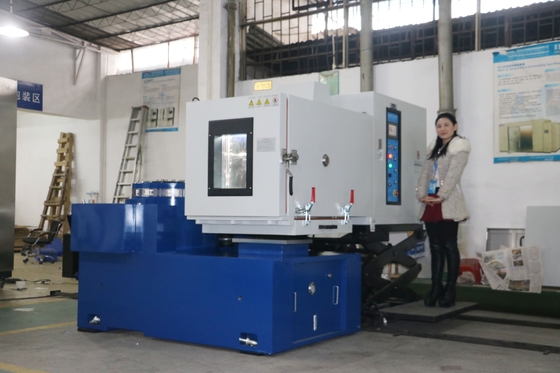

Vibration Table Combined with AGREE Chambers for Automotive Components ISO 16750-3 Compliant

3. Specific Parameters

• Model			VTHC-1000L
  Temperature and humidity chamber	Performance	Temperature range	-40°C to +150°C
  		Humidity range	20 to 98%rh
  		Temperature heat-up time	Within 80 minutes from -40°C to +150°C
  		Temperature pull-down time	Within 100 minutes from +20°C to -40°C
  	Dimensions	Inside dimensions	W1000×H1000×D1000mm
  		Outside dimensions	W3275×H2412×D1368mm
  Combination	Combined system		Direct coupling to the chamber floor method
  	Combination range		Vibration test system 2.9 kN to 80 kN
  Vibration device	Performance	Force	9.8 kN (1000 kgf) sine
  		Frequency range	1 to 2000Hz
  		Maximum displacement	100mmp-p
  		Maximum velocity	2.0m/s
  		Maximum acceleration	1000 m/s²
  		Vibration table	500×500mm

Applications:

• Avionics equipment testing
• Aerospace component qualification
• Environmental stress screening (ESS)
• Reliability testing for airborne systems
• Certification testing for aviation products

Benefits:

• Ensures compliance with critical RTCA DO-160 standards.
• Enhances the reliability and performance of avionics and aerospace equipment.
• Reduces the risk of in-flight failures.
• Accelerates product development and certification processes.
• Provides comprehensive and integrated testing solutions.

Why Choose Us:

We specialize in providing high-precision environmental and vibration testing solutions for the aerospace industry. Our AGREE chambers, compliant with RTCA DO-160, are designed and manufactured to the highest standards, ensuring reliable and accurate testing results. We offer comprehensive support, including design, installation, and ongoing maintenance.

Contact our expert team today to discuss your specific RTCA DO-160 testing requirements and discover how our AGREE chambers can optimize your testing processes.
