Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Vibration Force:

2000kg.f(20kN)

Temp. Range:

-60°C To +180°C

Humdity Range:

10% To 98%

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Vibration Environmental Chamber

Stainless Steel Environmental Chamber

ISTA Packaging Testing Environmental Chamber

Product Description

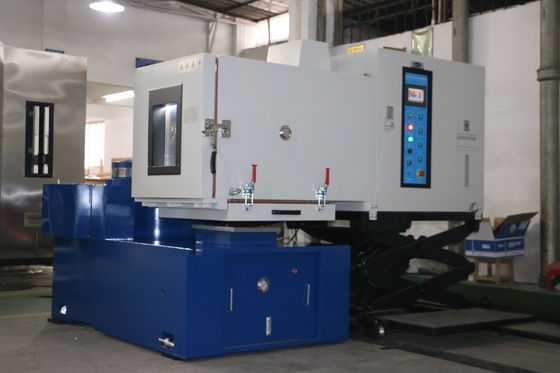

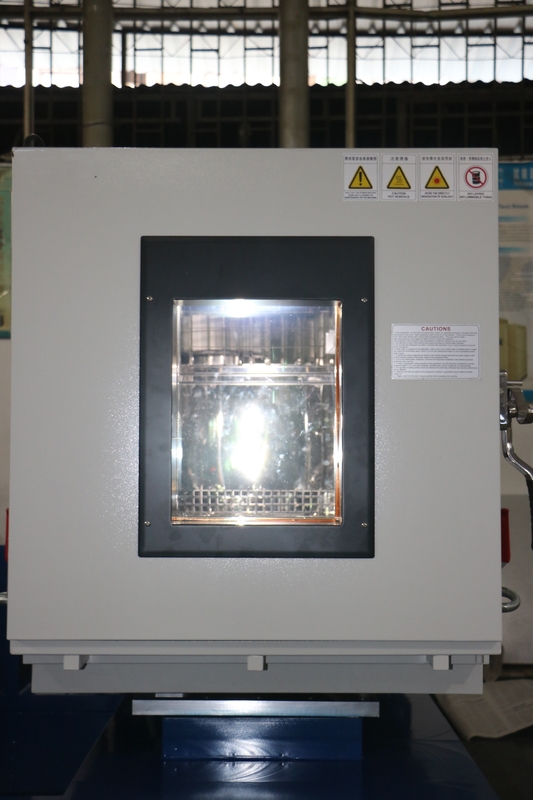

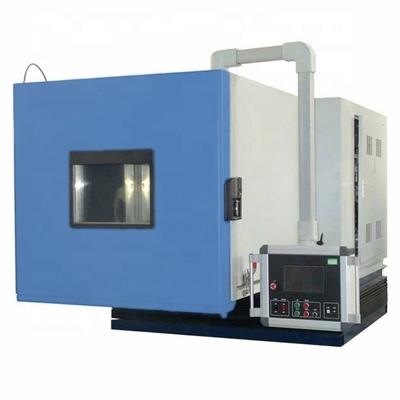

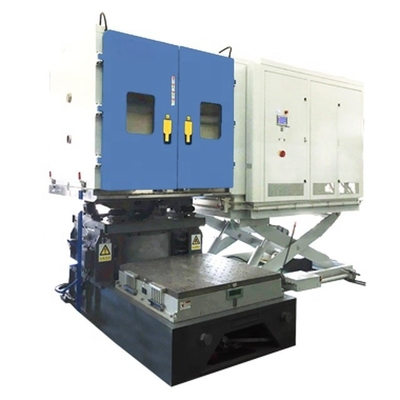

Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant

Product Description:

Our custom-engineered environmental and vibration test chambers are designed to meet the rigorous requirements of SAE J1455, ensuring the reliability and durability of automotive electronic equipment under extreme conditions. These chambers combine precise temperature, humidity, and vibration simulation, providing a comprehensive testing solution for automotive manufacturers and suppliers.

Key Features:

SAE J1455 Compliance: Engineered to meet the environmental stress testing requirements outlined in SAE J1455.
Customizable Design: Tailored to meet specific automotive component dimensions and testing parameters.
Integrated Environmental & Vibration: Combines precise temperature, humidity, and vibration testing in a single system.
Advanced Vibration Simulation: Electro-dynamic or hydraulic shakers for accurate and repeatable vibration profiles.
Precision Environmental Control: State-of-the-art temperature and humidity systems for stable and uniform testing conditions.
Real-Time Data Acquisition: Comprehensive data logging and analysis for detailed test results.
Robust Construction: Designed for continuous operation and long-term reliability.
Enhanced Safety Features: Comprehensive safety mechanisms for equipment and test specimens.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH

Applications:

Automotive electronic control unit (ECU) testing.
Automotive sensor testing.
Infotainment system testing.
Automotive lighting system testing.
Environmental stress screening (ESS) for automotive electronics.
Reliability testing of automotive electronic components.

Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant 0

Benefits:

Ensures compliance with SAE J1455 standards.
Enhances the reliability and durability of automotive electronic equipment.
Reduces the risk of in-field failures.
Accelerates product development and validation.
Provides comprehensive and integrated testing solutions.

Why Choose Us:

We specialize in providing high-quality environmental and vibration testing solutions for the automotive industry. Our custom chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.

Contact our team today to discuss your automotive electronic component testing needs and learn how our custom environmental and vibration test chambers can ensure your products meet SAE J1455 standards.
