GMW3172 Vibration Testing For Electronic Equipment
Product Description

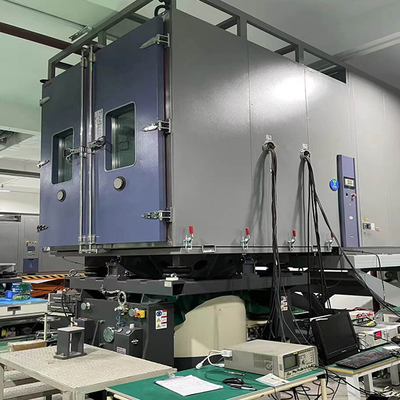

HALT HASS & AGREE Vibration Test Chambers Meets GMW3172 Electrical Component Testing
In the automotive industry, the reliability and performance of electrical components are of paramount importance. The HALT HASS & AGREE Vibration Test Chambers, designed to meet GMW3172 for electrical component testing, play a crucial role in ensuring that these components can withstand the rigors of real-world operation and deliver consistent functionality.
1. Product Name and Purpose
This state-of-the-art vibration test chamber is dedicated to subjecting automotive electrical components to a comprehensive suite of tests in accordance with GMW3172. It serves automotive manufacturers, Tier 1 suppliers, and research institutions. The primary objective is to evaluate the durability and integrity of electrical components such as sensors, connectors, control modules, and wiring harnesses under various vibration and environmental conditions. By simulating the harsh vibrations and stresses that these components may encounter during a vehicle's lifespan, manufacturers can identify potential weaknesses, optimize designs, and enhance the overall quality and reliability of automotive electrical systems.
2. Product Features
Robust and Shielded Chamber Structure

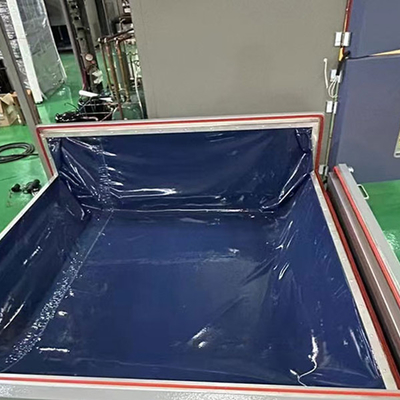

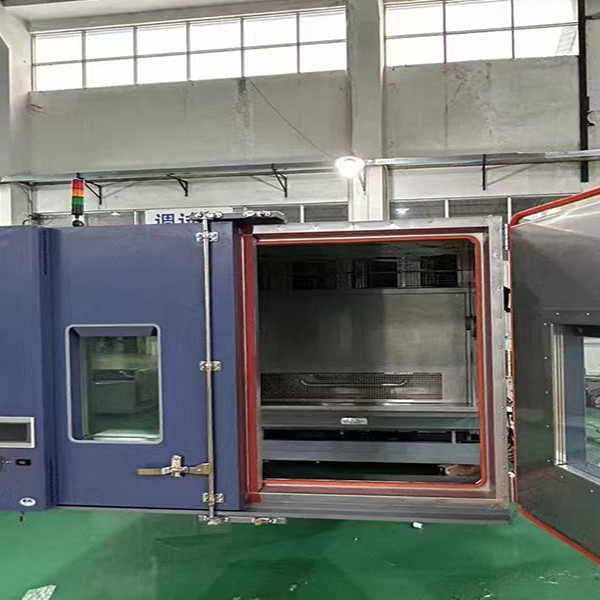

The chamber is constructed with heavy-duty materials that provide excellent protection against external electromagnetic interference. The walls are made of conductive and ferromagnetic materials, which act as a Faraday cage, shielding the internal testing environment from stray electromagnetic fields. The interior is designed to accommodate a wide variety of electrical components, with adjustable racks and fixtures to ensure proper positioning and secure mounting. The door is equipped with a reliable sealing mechanism and a viewing window, allowing operators to monitor the testing process without compromising the integrity of the shielded environment.
Precision Vibration and Environmental Control Systems
Vibration System: Capable of generating a wide range of vibration frequencies and amplitudes. It can produce vibrations from 5 Hz to 2000 Hz with amplitudes up to 50 mm. The vibration system is highly precise, allowing for the programming of complex vibration profiles to replicate different driving conditions, such as rough roads, engine vibrations, and high-speed maneuvers. The vibration platform is also designed to provide uniform vibration distribution across the test samples, ensuring accurate and consistent testing results.
Temperature and Humidity Control: The chamber can maintain a wide temperature range, typically from -40°C to +80°C, with an accuracy of ±0.5°C. The humidity control range extends from 10% to 95% relative humidity, with an accuracy of ±3% RH. These environmental controls are essential as temperature and humidity can significantly affect the performance and reliability of electrical components. For example, high humidity can cause corrosion and short circuits, while extreme temperatures can lead to component failure or altered electrical characteristics.
Intuitive Control Panel and Data Acquisition Interface
The control panel is user-friendly and allows operators to easily set and adjust test parameters such as vibration frequency, amplitude, temperature, humidity, and test duration. It provides real-time displays of the current environmental conditions and vibration status, as well as any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes vibration waveforms, temperature and humidity histories, and any observable changes in the electrical performance of the components. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats.
Safety Features and Alarms
Over-temperature, over-humidity, and over-vibration protection systems are in place to prevent damage to the chamber and the test samples. Emergency stop buttons are easily accessible. Alarms are triggered for abnormal temperature fluctuations, humidity levels, vibration malfunctions, or any other equipment failures. The chamber is also equipped with proper ventilation and exhaust systems to handle any potentially harmful gases or vapors that may be generated during the testing process. Additionally, the shielding of the chamber helps protect operators from any electromagnetic radiation that may be emitted during testing.
3. Specific Parameters
Vibration Parameters
The ability to produce vibrations from 5 Hz to 2000 Hz with amplitudes up to 50 mm allows for a comprehensive evaluation of electrical components. Low-frequency vibrations can mimic the slow oscillations caused by engine idling or driving on a bumpy road, while high-frequency vibrations can replicate the rapid vibrations associated with high-speed rotating components or electrical switching. The precise control of vibration frequency and amplitude is crucial for identifying potential resonance points and weaknesses in the components.
Temperature and Humidity Ranges and Accuracies
The -40°C to +80°C temperature range with ±0.5°C accuracy and 10% to 95% RH humidity range with ±3% RH accuracy provide a wide spectrum of environmental conditions for testing. Electrical components must be able to function reliably across different climates and operating conditions. For instance, a sensor used in a vehicle's engine compartment may experience high temperatures, while a component in the interior may be subject to more moderate temperature and humidity levels. The accurate control of these parameters ensures that the test conditions are realistic and repeatable.
Testing Volume and Payload Capacity
The chamber offers a customizable testing volume, usually ranging from 3 m³ to 15 m³, depending on the size and quantity of electrical components to be tested. The payload capacity is designed to handle a significant amount of components, with a maximum capacity of up to several tons. This flexibility allows for efficient testing of both individual components and complex assemblies.
Data Sampling Frequency and Resolution
The data acquisition system samples data at a frequency of up to 1000 Hz. The vibration data has a resolution of 0.1 Hz and 0.1 mm for frequency and amplitude respectively. The temperature data has a resolution of 0.1°C, and the humidity data has a resolution of 0.1% RH. This high-resolution and frequent sampling enable the detection of even the slightest changes in the test conditions and component performance, providing valuable insights for analysis and improvement.
4. Product Functions
Accurate Simulation of Real-World Conditions
The chamber replicates the combined effects of vibration, temperature, and humidity that automotive electrical components may face during their service life. By subjecting the components to these realistic conditions, manufacturers can ensure that they will perform reliably in the field. For example, a connector that is prone to loosening under vibration and temperature changes can be identified and redesigned before it causes issues in a vehicle.
Product Design Optimization and Quality Control
Through a series of tests on different electrical component prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the performance of various materials, geometries, and manufacturing techniques under the combined stress of vibration, temperature, and humidity. The chamber also serves as a critical tool for quality control, ensuring that each production batch of components meets the required standards. If a particular control module shows signs of electrical instability during testing, the design or manufacturing process can be adjusted to correct the issue.
Research and Development Support
In the field of automotive electrical component research and development, the HALT HASS & AGREE Vibration Test Chambers offer valuable insights. Researchers can use it to study the fundamental properties of new materials and their interactions with vibration, temperature, and humidity. They can explore innovative designs and technologies that result in more reliable and high-performance electrical components. For instance, materials scientists can test the performance of novel conductive polymers or advanced insulation materials under GMW3172 test conditions, using the chamber to evaluate their potential for future automotive applications.
Compliance Testing and Certification
The equipment is essential for conducting compliance testing to meet the GMW3172 standard. The automotive industry has strict requirements regarding the performance and durability of electrical components, and the test results obtained from the chamber can be used to certify that the components meet these standards. This is crucial for market acceptance and for ensuring the overall safety and functionality of automotive vehicles.
5. Production and Quality Assurance
Stringent Manufacturing Process
The HALT HASS & AGREE Vibration Test Chambers for GMW3172 are manufactured under strict quality control procedures. Each component, from the chamber structure and insulation materials to the vibration, temperature, and humidity control units and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
Quality Certification and Validation
Our chamber has obtained relevant quality certifications and has been validated by independent automotive testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the GMW3172 standard and other international and national automotive testing standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the automotive industry to ensure its long-term performance and compliance.
6. Application Areas and Success Stories
Sensor Testing
An automotive manufacturer used the chamber to test a new type of pressure sensor. The sensor was subjected to a combination of vibration, temperature cycling, and humidity. The testing revealed that the sensor's calibration was affected by temperature changes, leading to inaccurate readings. By modifying the sensor's internal circuitry and using a more temperature-stable material, the manufacturer was able to improve the sensor's accuracy and reliability.
Connector Durability Evaluation
A Tier 1 supplier evaluated the durability of a new connector design. The connectors were exposed to a variety of vibration frequencies and amplitudes, along with temperature and humidity variations. The results showed that the connector's locking mechanism was prone to failure under certain vibration and temperature conditions. By redesigning the locking mechanism and using a more corrosion-resistant material, the supplier was able to enhance the connector's durability and performance.
Control Module Reliability Testing
In the electronics division of an automotive company, the chamber was used to test a new engine control module. The module was subjected to a comprehensive set of tests, including vibration, temperature, and humidity. The testing identified a potential issue with the module's power supply circuitry, which was sensitive to vibration-induced voltage fluctuations. By improving the power supply design and adding additional filtering components, the company was able to increase the module's reliability and reduce the risk of in-vehicle failures.
7. Service and Support
Pre-Sales Technical Consultation
Our team of automotive testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the automotive industry, to familiarize their engineers and technicians with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the electrical components to be tested.
After-Sales Service and Maintenance
We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for GMW3172 electrical component testing.
Training and Technical Support
We conduct training programs for new users to ensure they can effectively operate the HALT HASS & AGREE Vibration Test Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with GMW3172 and other automotive testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
The HALT HASS & AGREE Vibration Test Chambers that meet GMW3172 for electrical component testing are an indispensable tool for any organization involved in automotive electrical component testing and development. If you are looking to enhance your testing capabilities, ensure compliance with industry standards, or drive innovation in automotive electrical system design, this is the ideal solution. Contact us today to learn more and get a customized quotation. Let us help you unlock the full potential of your automotive electrical component testing efforts.
