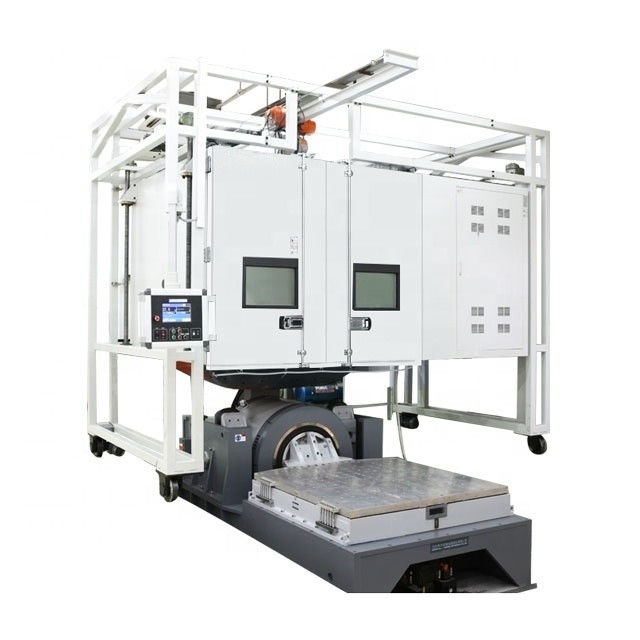

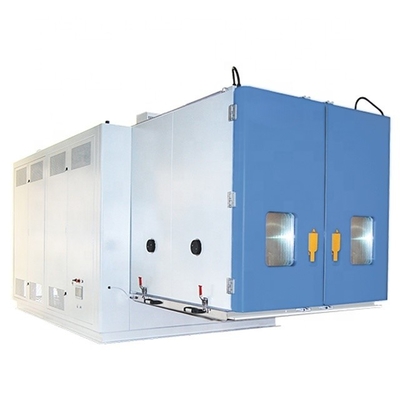

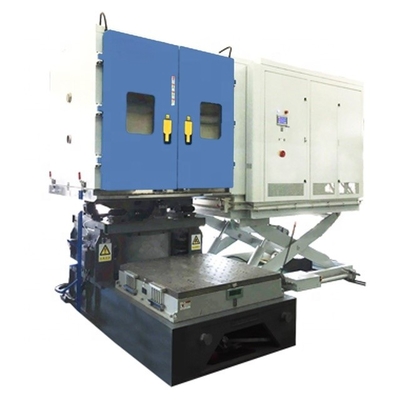

HALT HASS AGREE Vibration Test Chamber For GMW14319 Temperature Cycle Profile

1. Product Name and Purpose

2. Product Features

• Robust and Customizable Chamber Structure

  • The chamber is constructed with heavy-duty materials that can endure the rigors of high-intensity vibration and temperature cycling. The walls are made of high-strength steel with excellent thermal insulation properties. The interior dimensions are customizable to accommodate a wide variety of automotive components, from small electronic sensors to large engine assemblies. The door is equipped with a reliable sealing mechanism and a viewing window, allowing operators to monitor the testing process without compromising the integrity of the internal environment. The floor is designed to provide a stable base for the test specimens and is integrated with vibration isolation and amplification systems.

• Precision Temperature and Vibration Control Systems

  • Temperature Control: Capable of achieving a wide temperature range, typically from -60°C to +150°C, with an accuracy of ±0.5°C. The system utilizes advanced refrigeration units, heaters, and a sophisticated control algorithm to ensure rapid and accurate temperature cycling. This allows for the simulation of extreme cold and hot conditions that automotive components may encounter, such as in arctic regions or near engine bays.

  • Vibration System: The chamber is equipped with a high-performance vibration platform that can generate a wide range of vibration frequencies and amplitudes. It can produce vibrations from 5 Hz to 2000 Hz with amplitudes up to 50 mm. The vibration system is designed to replicate various real-world vibration sources, including engine vibrations, road surface irregularities, and the dynamic forces experienced during vehicle operation. The vibration control system is highly precise, allowing for the programming of complex vibration profiles and the ability to adjust the vibration intensity and frequency in real-time.

• Intuitive Control Panel and Data Acquisition Interface

  • The control panel is user-friendly and provides operators with easy access to all test parameters. They can set and adjust temperature cycling profiles, vibration frequencies, amplitudes, and test durations with minimal effort. The panel also displays real-time information about the current temperature, vibration status, and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes temperature histories, vibration waveforms, and any observable changes in the performance or integrity of the automotive components. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats.

• Safety Features and Alarms

  • To ensure the safety of operators and the protection of the test specimens and the chamber itself, a range of safety features is incorporated. These include over-temperature and over-vibration protection systems, emergency stop buttons, and alarms for abnormal temperature fluctuations, vibration malfunctions, or any other equipment failures. The chamber is also equipped with proper ventilation and exhaust systems to handle any potentially harmful gases or vapors that may be generated during the testing process.

3. Specific Parameters

• Temperature Range and Accuracy

  • The -60°C to +150°C temperature range with ±0.5°C accuracy enables the evaluation of automotive components in a wide spectrum of thermal conditions. This is crucial as different materials and components may have varying thermal expansion coefficients and performance characteristics at different temperatures. For example, metal parts may become brittle at extremely low temperatures, while plastic components may soften or degrade at high temperatures. The accurate temperature control ensures that the test conditions are precisely maintained, providing reliable and repeatable results.

• Vibration Parameters

  • The vibration system can produce frequencies from 5 Hz to 2000 Hz and amplitudes up to 50 mm. These parameters can be adjusted to mimic different driving conditions and vibration sources. For instance, low-frequency vibrations around 5 - 20 Hz can simulate the rumbling of a vehicle on a rough road, while high-frequency vibrations in the range of 500 - 2000 Hz can replicate the vibrations from an engine or a high-speed rotating component. The ability to precisely control the vibration frequency and amplitude is essential for a comprehensive assessment of the component's resistance to vibration-induced failures.

• Temperature Cycle Profile and Vibration Synchronization

  • The chamber allows for the programming of complex temperature cycle profiles in conjunction with vibration. For example, it can simulate a scenario where a component is subjected to rapid temperature changes while simultaneously experiencing vibration. The temperature cycle can be set to mimic daily or seasonal temperature variations, such as a cold start in the morning followed by a rise in temperature during operation and then a cool-down period. The vibration and temperature cycling can be synchronized to replicate real-world conditions more accurately, providing a more comprehensive and realistic test environment.

• Testing Volume and Payload Capacity

  • The testing volume can be customized, usually ranging from 3 m³ to 15 m³, depending on the size of the automotive components to be tested. The payload capacity is designed to handle heavy and bulky components, with a maximum capacity of up to several tons. This allows for the testing of a wide range of automotive parts, from small electronic components to large engine and chassis assemblies.

• Data Sampling Frequency and Resolution

  • The data acquisition system samples data at a frequency of up to 1000 Hz. The temperature data has a resolution of 0.1°C, vibration frequency data has a resolution of 0.1 Hz, and vibration amplitude data has a resolution of 0.1 mm. This high-resolution and frequent sampling enable the detection of even the slightest changes in temperature and vibration, providing valuable insights into the behavior of the automotive components during the test.

4. Product Functions

• Accurate Simulation of Real-World and Accelerated Conditions

  • The chamber replicates the combined effects of vibration and temperature cycling that automotive components experience during their service life. By subjecting the components to these realistic and accelerated stress conditions, manufacturers can identify potential failures and weaknesses that may not be apparent under normal operating conditions. This helps in improving the design and manufacturing processes to enhance the overall reliability and durability of the components.

• Product Design Optimization and Quality Control

  • Through a series of tests on different automotive component prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the performance of various materials, geometries, and manufacturing techniques under the combined stress of vibration and temperature cycling. The chamber also serves as a critical tool for quality control, ensuring that each production batch of components meets the required standards for durability and performance. For example, if a particular component shows signs of cracking or malfunction under specific vibration and temperature conditions, the design can be modified to address the issue.

• Research and Development Support

  • In the field of automotive research and development, the HALT HASS & AGREE Vibration Test Chambers offer valuable insights. Researchers can use it to study the fundamental properties of new materials and their interactions with vibration and temperature. They can explore innovative designs and technologies that result in more reliable and high-performance automotive components. For instance, materials scientists can test the performance of novel alloys or composite materials under extreme vibration and temperature conditions, using the chamber to evaluate their potential for use in future automotive applications.

• Compliance Testing and Certification

  • The equipment is essential for conducting compliance testing to meet the GMW14319 standard and other relevant automotive industry regulations. The automotive industry has strict requirements regarding the durability and performance of components, and the test results obtained from the chamber can be used to certify that the components meet these standards. This is crucial for ensuring the safety and reliability of automotive products and for market acceptance.

5. Production and Quality Assurance

• Stringent Manufacturing Process

  • The HALT HASS & AGREE Vibration Test Chambers for GMW14319 are manufactured under strict quality control procedures. Each component, from the chamber structure and insulation materials to the temperature and vibration control units and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.

• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent automotive testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the GMW14319 standard and other international and national automotive testing standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the automotive industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Engine Component Testing

  • An automotive manufacturer used the chamber to test a new engine design. The engine components were subjected to a combination of high-temperature cycling and intense vibration. The testing revealed that a particular bearing had a tendency to wear out prematurely under the combined stress. By modifying the bearing material and design, the manufacturer was able to improve the engine's durability and reliability.

• Chassis and Suspension Component Evaluation

  • A Tier 1 supplier evaluated the performance of a new suspension system in the chamber. The components were exposed to a variety of vibration frequencies and amplitudes, along with temperature changes simulating different driving conditions. The results showed that a specific bushing material had poor performance in cold temperatures and high-frequency vibrations. By switching to a more suitable material, the supplier was able to enhance the overall performance and ride quality of the suspension system.

• Electronic Module Reliability Testing

  • In the electronics division of an automotive company, the chamber was used to test the reliability of a new electronic control module. The module was subjected to temperature cycling and vibration to simulate the harsh environment inside a vehicle. The testing identified a potential issue with the solder joints, which were prone to cracking under the combined stress. By improving the soldering process and using more robust components, the company was able to increase the module's reliability and reduce the risk of in-vehicle failures.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of automotive testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the automotive industry, to familiarize their engineers and technicians with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the automotive components to be tested.

• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for GMW14319 vibration and temperature cycling testing of automotive components.

• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the HALT HASS & AGREE Vibration Test Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with GMW14319 and other automotive testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
