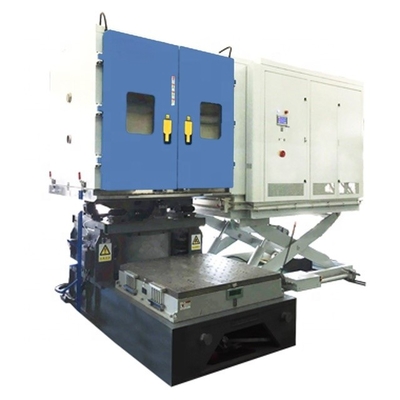

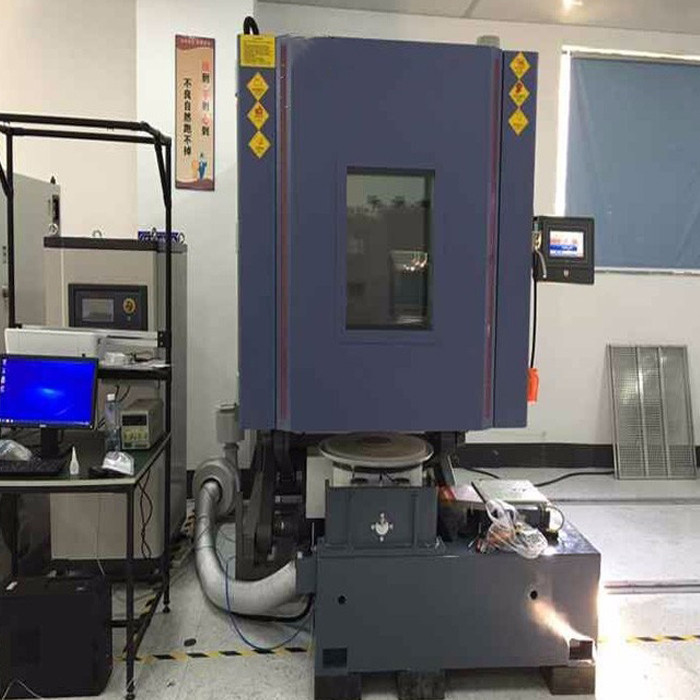

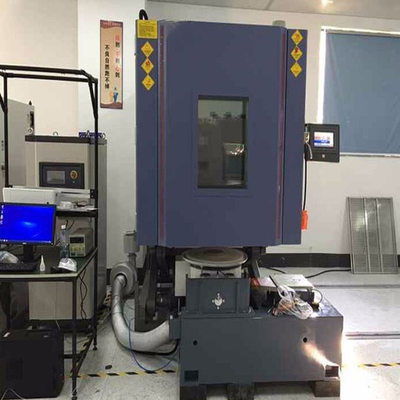

Vibration Test System Combined with Climate Chamber: Meeting ASTM D4169-16 Standard

3. Specific Parameters

• Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
  Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
  Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
  Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
  Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
  Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
  Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
  Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg







  PA10K Power Amplifier Specifications		Blower Specifications
  Rated Output Capacity	10kVA	Bl ewer Power	4kW
  Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
  Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
  System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
  Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
  Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg







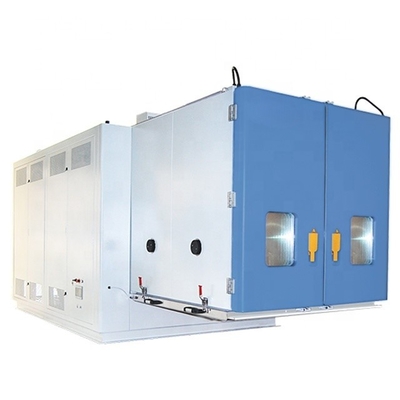

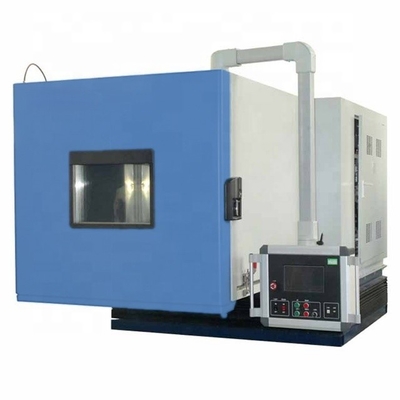

  Chamber	Dimensions (mm)
  Capacity	512L
  Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
  Temperature Range	-40℃～+150℃
  Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
  Humidity Range	20%RH～98%RH
  Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
  Weight	1500kg

6. Application Areas and Success Stories

• Consumer Electronics
  • A leading smartphone manufacturer used the system to test the durability of their new model. The tests involved subjecting the phones to a combination of vibration, temperature, and humidity conditions. The results showed that a particular component was prone to failure under high humidity and vibration. By redesigning the component and improving its sealing, the manufacturer was able to enhance the overall durability of the smartphone and reduce the number of warranty claims.
• Industrial Electrical Equipment
  • An industrial electrical equipment manufacturer tested a new series of motor controllers. The controllers were exposed to extreme temperature and humidity conditions while being subjected to vibration. The testing identified a problem with the thermal management of the controllers under high-temperature and vibration conditions. By modifying the heat sink design and using more durable components, the manufacturer was able to improve the performance and reliability of the motor controllers, ensuring their proper functioning in industrial applications.
• Telecommunications
  • A telecommunications company tested their outdoor base station equipment. The equipment was tested under a wide range of temperature, humidity, and vibration conditions as per ASTM D4169-16. The tests revealed a weakness in the equipment's enclosure, which could lead to water ingress and component damage. By improving the enclosure design and using a more corrosion-resistant material, the company was able able to enhance the equipment's resistance to environmental factors and reduce maintenance costs.

Benefits:

• Ensures compliance with ASTM D4169-16 transportation standards.
• Improved reliability and durability of electrical products.
• Reduced product damage during shipping.
• Enhanced customer satisfaction.
• Optimized packaging design for electrical equipment.

Why Choose Us:

We specialize in providing customized environmental and vibration testing solutions for the electrical industry. Our systems are designed to meet the stringent requirements of ASTM D4169-16, ensuring reliable and accurate results.

Contact Us:

Contact us today to discuss your electrical product testing needs and request a personalized quote.
