Custom AGREE Chambers with Both Vertical and Horizontal Vibration Systems

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Vibration Force:

2000kg.f(20kN)

Temp. Range:

-60°C To +180°C

Humdity Range:

10% To 98%

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Customized Climate Chamber

Heat Humidity Test Climate Chamber

Vibration Test Climate Chamber

Product Description

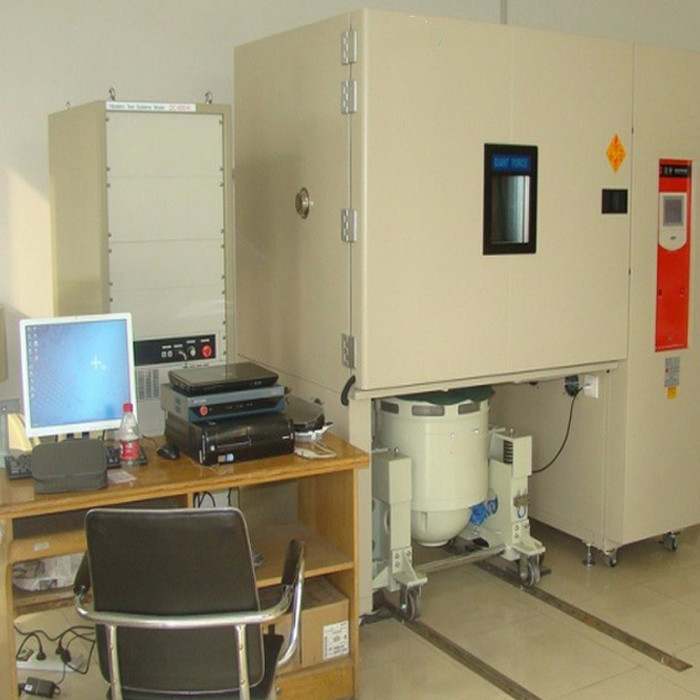

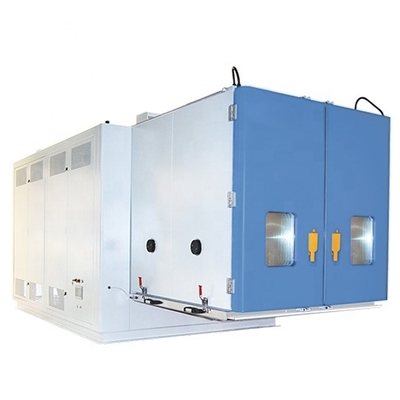

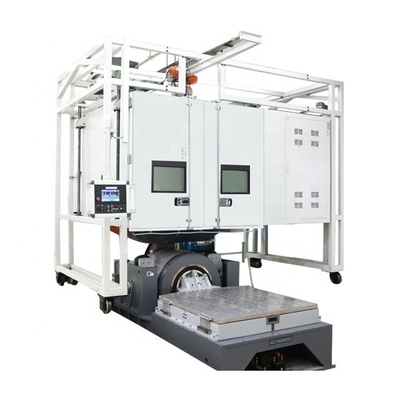

Custom AGREE Chambers with Both Vertical and Horizontal Vibration Systems

Product Description:

Our Custom AGREE Chambers, equipped with both vertical and horizontal vibration systems, are designed to provide comprehensive environmental and vibration testing capabilities. These chambers meet the rigorous standards of the Advisory Group on Reliability of Electronic Equipment (AGREE), ensuring the reliability and durability of your products under complex environmental stresses.

Key Features:

AGREE Standard Compliance:
- Meets or exceeds AGREE standards for combined temperature, humidity, and vibration testing.
- Ensures accurate simulation of real-world environmental conditions.
Dual Vibration Systems (Vertical & Horizontal):
- Independent vertical and horizontal vibration shakers for multi-axis simulation.
- Allows for comprehensive testing of products under diverse vibration orientations.
- Adjustable frequency, amplitude, and duration for each axis.
Precise Temperature and Humidity Control:
- Advanced control systems for stable and accurate environmental conditions.
- Wide temperature and humidity ranges to simulate diverse operating environments.
Customizable Chamber Sizes:
- Tailored to accommodate various product sizes and configurations.
- Ensures efficient testing of diverse product types.
Data Acquisition and Analysis:
- Comprehensive data logging and analysis software for detailed test results.
- Real-time monitoring of test parameters for immediate feedback.
User-Friendly Interface:
- Intuitive software and control panels for easy operation and test setup.
- Programmable test sequences for automated testing.
Safety Features:
- Built-in safety mechanisms to protect test specimens and operators.
- Emergency stop functions for immediate shutdown.
Compliance with Industry Standards:
- Meets or exceeds relevant industry standards, including IEC, ASTM, and MIL-STD.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Application Areas and Success Stories

Aerospace Industry
- A leading aerospace company used the chamber to test the avionics systems of a new aircraft. The tests involved subjecting the systems to extreme temperature and humidity conditions while simulating the vibrations experienced during flight. The results revealed a potential issue with the soldering joints of a circuit board, which could have led to a failure during operation. By redesigning the circuit board and using more reliable soldering techniques, the company was able to enhance the reliability of the avionics systems and ensure the safety of the aircraft.
Automotive Sector
- An automotive manufacturer tested the durability of their new engine mounts in the chamber. The mounts were subjected to a combination of high temperatures, humidity, and intense vibrations. The tests showed that the original design had a limited lifespan under these conditions. By modifying the material composition and the structural design of the mounts, the manufacturer was able to increase their durability and reduce the risk of engine misalignment and vibration transfer, improving the overall performance and comfort of the vehicle.
Electronics and Telecommunications
- A telecommunications equipment manufacturer used the chamber to test the reliability of their outdoor base station equipment. The equipment was exposed to a wide range of temperature and humidity levels, along with vibrations caused by wind and nearby machinery. The tests identified a problem with the moisture sealing of a critical component. By improving the sealing design and using a more moisture-resistant material, the manufacturer was able to enhance the equipment's resistance to environmental factors and reduce the frequency of maintenance and repair.

Custom AGREE Chambers with Both Vertical and Horizontal Vibration Systems 0

Benefits:

Ensures compliance with AGREE standards for electronic equipment reliability.
Improved product reliability and durability.
Reduced warranty costs and product failures.
Enhanced product quality and customer satisfaction.
Accelerated product development cycles.
Comprehensive multi-axis vibration testing.

Why Choose Us:

We are a leading provider of advanced environmental testing solutions, specializing in custom AGREE chambers with both vertical and horizontal vibration systems. Our expertise and commitment to quality ensure reliable and accurate results.
