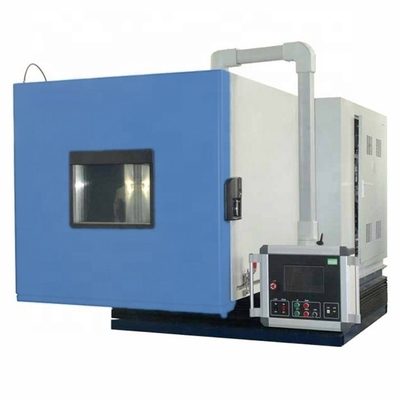

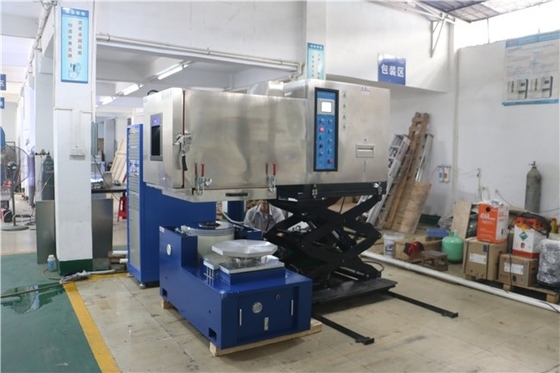

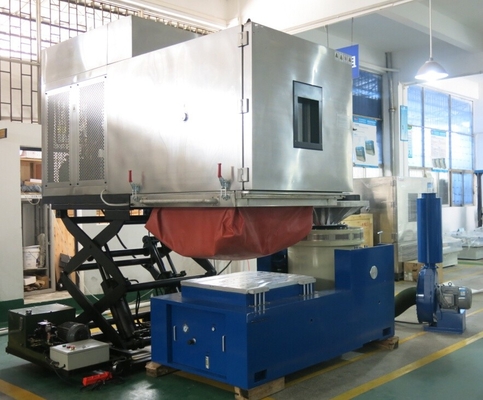

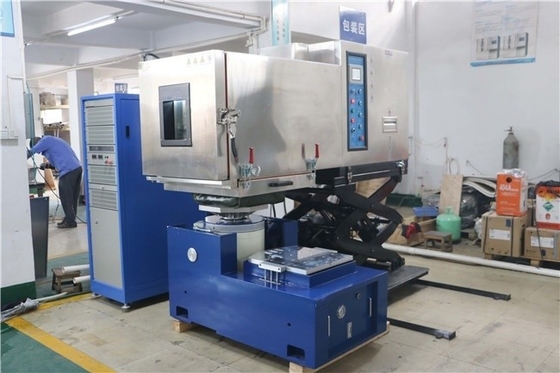

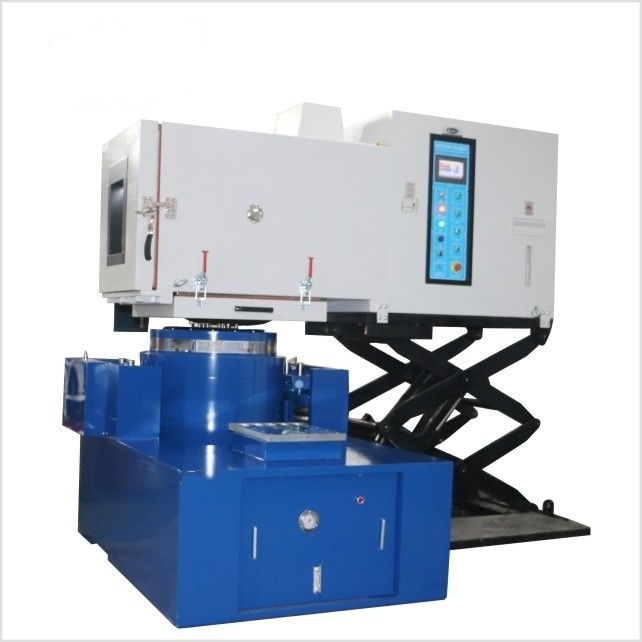

AGREE Test Chambers with Vibration Table for Combined Environmental Testing

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Vibration Force:

2000kg.f(20kN)

Temp. Range:

-60°C To +180°C

Humdity Range:

10% To 98%

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Stainless Steel Climatic Testing Chamber

Rotating Table Climatic Testing Chamber

Single Axis Climatic Testing Chamber

Product Description

AGREE Test Chambers with Vibration Table for Combined Environmental Testing

Product Description:

Our AGREE Test Chambers, equipped with integrated vibration tables, are designed to provide comprehensive environmental and vibration testing capabilities. These chambers meet the rigorous standards of the Advisory Group on Reliability of Electronic Equipment (AGREE), ensuring the reliability and durability of your products under complex combined environmental stresses.

Key Features:

AGREE Standard Compliance:
- Meets or exceeds AGREE standards for combined temperature, humidity, and vibration testing.
- Ensures accurate simulation of real-world environmental conditions.
Integrated Vibration Table:
- High-performance vibration shakers to simulate various vibration profiles.
- Adjustable frequency, amplitude, and duration to match specific testing requirements.
Precise Temperature and Humidity Control:
- Advanced control systems for stable and accurate environmental conditions.
- Wide temperature and humidity ranges to simulate diverse operating environments.
Customizable Chamber Sizes:
- Tailored to accommodate various product sizes and configurations.
- Ensures efficient testing of diverse product types.
Data Acquisition and Analysis:
- Comprehensive data logging and analysis software for detailed test results.
- Real-time monitoring of test parameters for immediate feedback.
User-Friendly Interface:
- Intuitive software and control panels for easy operation and test setup.
- Programmable test sequences for automated testing.
Safety Features:
- Built-in safety mechanisms to protect test specimens and operators.
- Emergency stop functions for immediate shutdown.
Compliance with Industry Standards:
- Meets or exceeds relevant industry standards, including IEC, ASTM, and MIL-STD.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Reliability testing of electronic components and assemblies.
Durability testing of electronic equipment.
Environmental stress screening (ESS) of electronic products.
Quality assurance for electronic devices.
Research and development for new electronic technologies.
aerospace and automotive components testing.

AGREE Test Chambers with Vibration Table for Combined Environmental Testing 0

Benefits:

Ensures compliance with AGREE standards for electronic equipment reliability.
Improved product reliability and durability.
Reduced warranty costs and product failures.
Enhanced product quality and customer satisfaction.
Accelerated product development cycles.
Combined environmental and vibration testing.

Why Choose Us:

We are a leading provider of advanced environmental testing solutions, specializing in AGREE chambers with integrated vibration tables for combined environmental testing. Our expertise and commitment to quality ensure reliable and accurate results.
