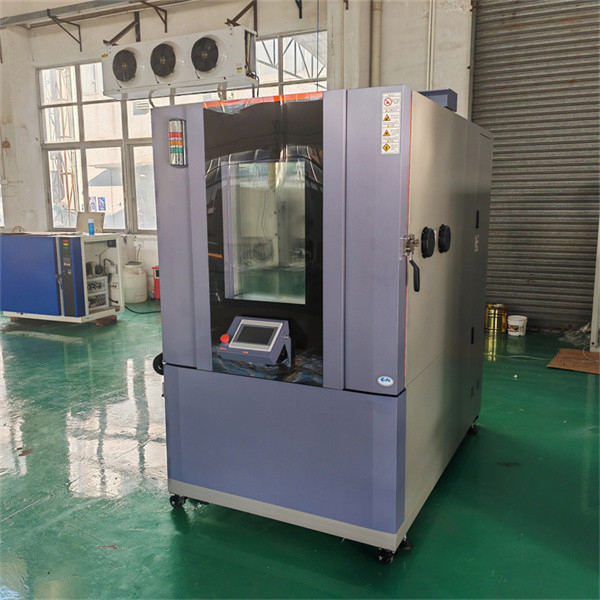

Customized Environmental Test Chamber High And Low Temperature Humidity Change

1. Product Name and Purpose

2. Product Features

• Robust and Versatile Construction
• Precision Temperature and Humidity Control Systems
• Advanced Instrumentation and Data Acquisition

3. Specific Parameters

• Model	TC-80	TC-150	TC-225	TC-408	TC-800	TC-1000
  Inside dimension(W x D x H)cm	40 x 50 x40	50 x 60 x 50	50 x 75 x 60	60 x 85 x 80	100 x 100 x 80	100 x 100 x 100
  Outside dimension(W x D x H) cm	95 x 140 x 95	105 x 150 x 105	105 x 165 x 115	115 x 175 x 140	155 x 190 x 140	155 x 190 x 160
  Internal material	#304 Stainless Steel
  External material	Powder coated #304 Stainless Steel
  Temperature range	+ 150℃~ - 70 ℃
  Humidity range	10% ~ 98% R. H
  Temperature Uniformity ℃	0.01
  Humidity Uniformity % R. H.	0.1
  Temperature stability ℃	±0.3
  Humidity stability % R. H.	±2
  High temperature ℃	100	100	100	100	100	100
  Heating time (min)	20	30	30	30	30	30
  Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
  Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
  Air circulation system	Mechanical convection system

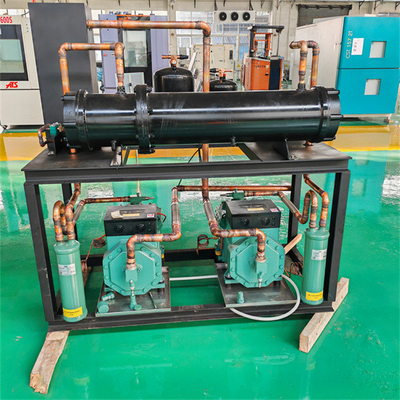

  Cooling system	Imported compressor, fin evaporator, gas condenser
  Heating system	Sus304 Stainless steel High-speed heater
  Humidification system	Steam Generator
  Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
  Controller	Touch panel
  Electrical power requirements	Please contact us for requirements of specific models
  Accessories	Multi-layer enhanced glass window,test hole, action indicator light, case lighting barrier shelf x2
  Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

 Application Areas and Success Stories

• Electronics Industry
  • An electronics manufacturer used the chamber to test a new smartphone model. The tests, which included cycles of high temperature (40°C) and high humidity (90% RH) followed by rapid cooling to -10°C, revealed a problem with the touchscreen's adhesive. By developing a new adhesive with better temperature and humidity resistance, they were able to enhance the product's durability and user experience.
  • A semiconductor research institute used the Customization Stability High and Low Temperature and Humidity Change Test Chamber to study the effects of temperature and humidity on the performance of new chip packaging materials. The data obtained led to the development of more reliable packaging solutions that could withstand harsh environmental conditions.
• Pharmaceutical Industry
  • A pharmaceutical company used the test chamber to evaluate the stability of a new vaccine formulation. The temperature and humidity cycling tests helped them determine the optimal storage conditions and shelf life of the vaccine, ensuring its effectiveness and safety.
  • A research institution in the pharmaceutical field used the chamber to study the degradation of drug compounds under different temperature and humidity profiles. The results led to the development of new formulation strategies to improve the stability of drugs.
• Food and Beverage Industry
  • A food manufacturer used the chamber to test the shelf life of a new snack product. The tests under varying temperature and humidity conditions allowed them to optimize the packaging and storage recommendations, reducing waste and ensuring product quality.
  • A beverage company used the Customization Stability High and Low Temperature and Humidity Change Test Chamber to assess the stability of a new flavored water product. The testing helped them identify potential flavor and quality changes under different environmental conditions, enabling them to make adjustments to the formulation and packaging.
