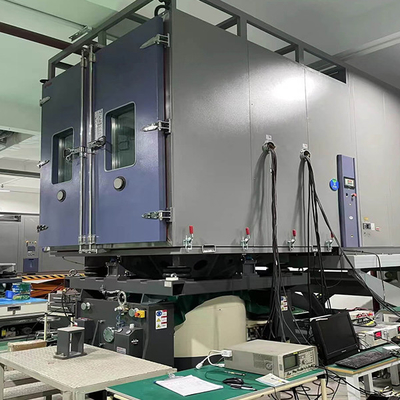

Low Maintenance Climatic Chamber Combined Temperature Humidity Vibration Test

1. Product Name and Purpose

2. Product Features

• Robust & Controlled Environment:
  • Durable, corrosion-resistant chamber with precise temperature (±0.1°C) and humidity (±2% RH) control.
  • High-performance vibration system with wide frequency (5-2000 Hz) and amplitude range.
  • Sealed, insulated design prevents condensation and ensures accurate test results.
• Precision Measurement & Data:
  • High-accuracy temperature, humidity, and vibration sensors.
  • Real-time data acquisition and detailed reporting/graphing.
  • Programmable control system for complex environmental simulations.
• Flexible Testing Modes:
  • Single-factor (temperature, humidity, vibration) or combined environmental stress testing.
  • Customizable test profiles to simulate diverse real-world conditions.
  • Adjustable temperature (-70°C to +150°C), humidity (10% to 98% RH), and vibration parameters.

3. Specific Parameters

• Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
  Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
  Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
  Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
  Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
  Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
  Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
  Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg







  PA10K Power Amplifier Specifications		Blower Specifications
  Rated Output Capacity	10kVA	Bl ewer Power	4kW
  Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
  Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
  System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
  Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
  Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

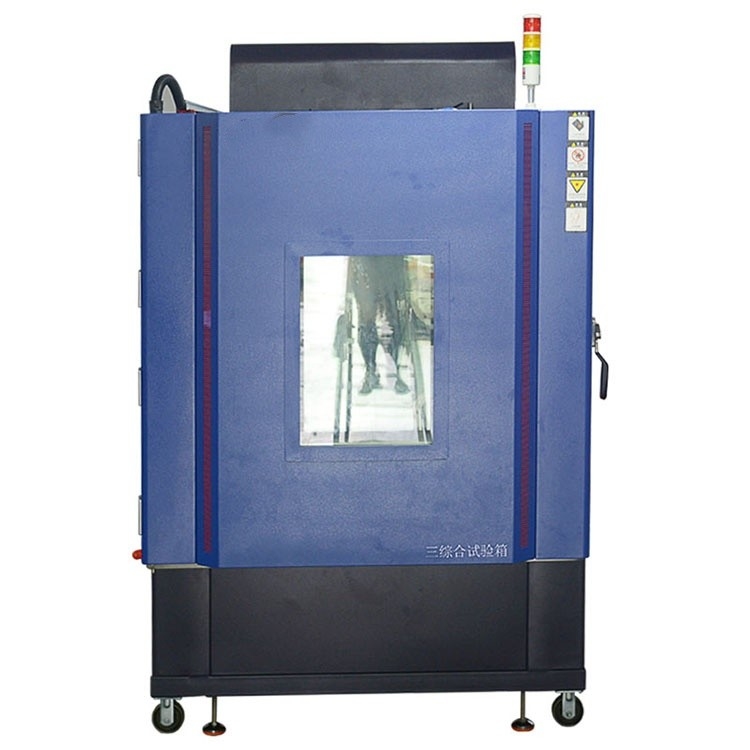

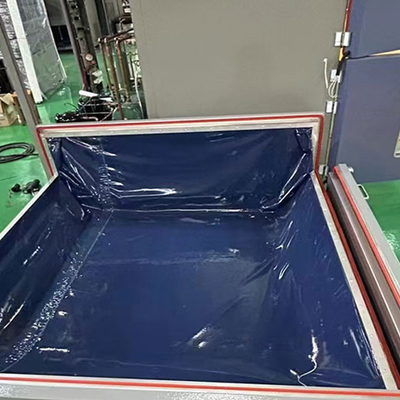

  Chamber specifications



  Chamber	Dimensions (mm)
  Capacity	512L

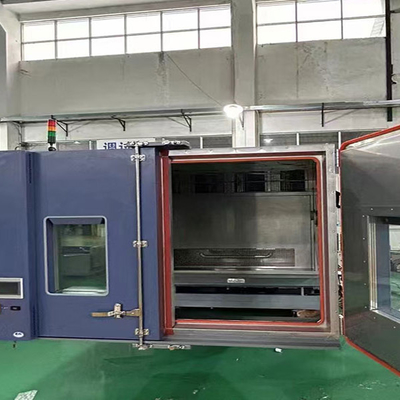

  Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
  Temperature Range	-40℃～+150℃
  Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
  Humidity Range	20%RH～98%RH
  Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
  Weight	1500kg



4. Product Functions

• Precise Environmental Stress Evaluation:
  • Accurately simulates combined temperature, humidity, and vibration stresses.
  • Identifies failure mechanisms and optimizes product design for enhanced durability.
  • Provides detailed data for improved product quality and reliability.
• Industry Standards Compliance:
  • Ensures adherence to ISO, IEC, and automotive-specific standards.
  • Facilitates market access and builds consumer confidence.
  • Supports regulatory enforcement of safety and quality standards.
• Research & Development Support:
  • Enables evaluation of new materials and prototypes under diverse environmental conditions.
  • Provides data for innovation and development of advanced, reliable products.

• • Manufacturing & Quality Assurance:

  • Stringent Manufacturing Process:
    • High-quality component sourcing and inspection.
    • Precise assembly by trained technicians in a controlled environment.
    • Regular calibration with traceable reference standards.
    • Rigorous quality audits and inspections.
  • Quality Certification & Validation:
    • Certified and validated by independent testing laboratories.
    • Compliance with international and national standards.
    • Continuous product improvement based on technology and customer feedback.

5. Application Areas and Success Stories

• Electronics Industry
  • A leading electronics manufacturer used the Temperature Humidity Vibration Combined Climatic Test Chamber to test a new generation of smartphone components. The test results showed that a particular type of connector had a tendency to loosen under a combination of high temperature and vibration. By redesigning the connector and using more suitable materials, they were able to improve the product's reliability and reduce the number of field failures. The company's reputation for quality was enhanced, and they gained a competitive edge in the market.
  • An electronics research institution utilized the chamber to study the long-term stability of new semiconductor materials. The data obtained helped them develop a new manufacturing process that improved the material's resistance to environmental stress, leading to the production of more durable and efficient semiconductors.
• Automotive Industry
  • An automotive parts manufacturer used the test chamber to evaluate the performance of a new engine control unit (ECU). The combined environmental testing revealed that the ECU had issues with its circuitry in a high-humidity and vibration environment. They were able to make design changes and improve the sealing and component layout, resulting in a more reliable ECU that met the strict automotive industry standards.
  • A major automotive manufacturer used the chamber to test the durability of their vehicle interiors. By subjecting the materials to temperature, humidity, and vibration cycles, they were able to select more suitable fabrics and plastics that could withstand the rigors of daily use and different climatic conditions, enhancing customer satisfaction.
• Aerospace Industry
  • An aerospace component supplier used the Temperature Humidity Vibration Combined Climatic Test Chamber to test a new type of avionics housing. The testing helped them identify potential weaknesses in the housing's design and material under extreme temperature and vibration conditions. They were able to make improvements and ensure that the housing met the stringent requirements of the aerospace industry, contributing to the safety and reliability of aircraft systems.
  • A research center focused on aerospace materials used the chamber to study the behavior of composite materials in space-like environments. The data they gathered led to the development of new composite formulations with enhanced resistance to temperature fluctuations and radiation, advancing the technology for future spacecraft.

7. Service and Support

• Pre-Sales Consultation:

• • Expert technical advice, demonstrations, and training.
  • Assistance with test method and accessory selection.
• After-Sales Service:
  • On-site installation, commissioning, and maintenance.
  • Spare parts, upgrades, and service contracts for ongoing support.
• Training & Technical Support:
  • User training programs for effective operation and data interpretation.
  • 24/7 technical support and troubleshooting assistance.
  • Software updates and support for data analysis systems.
