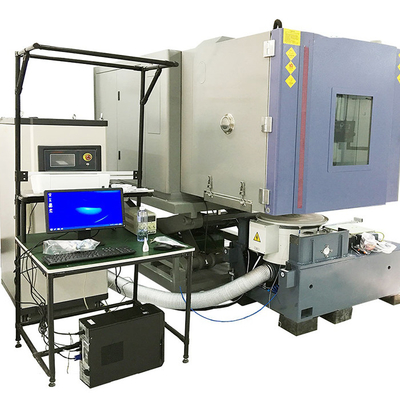

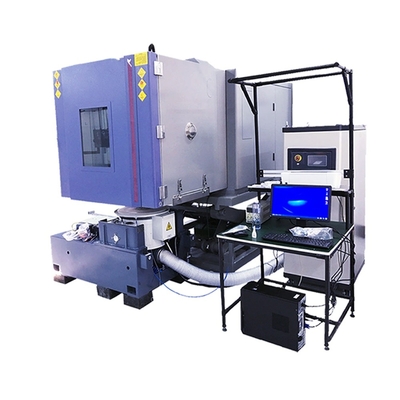

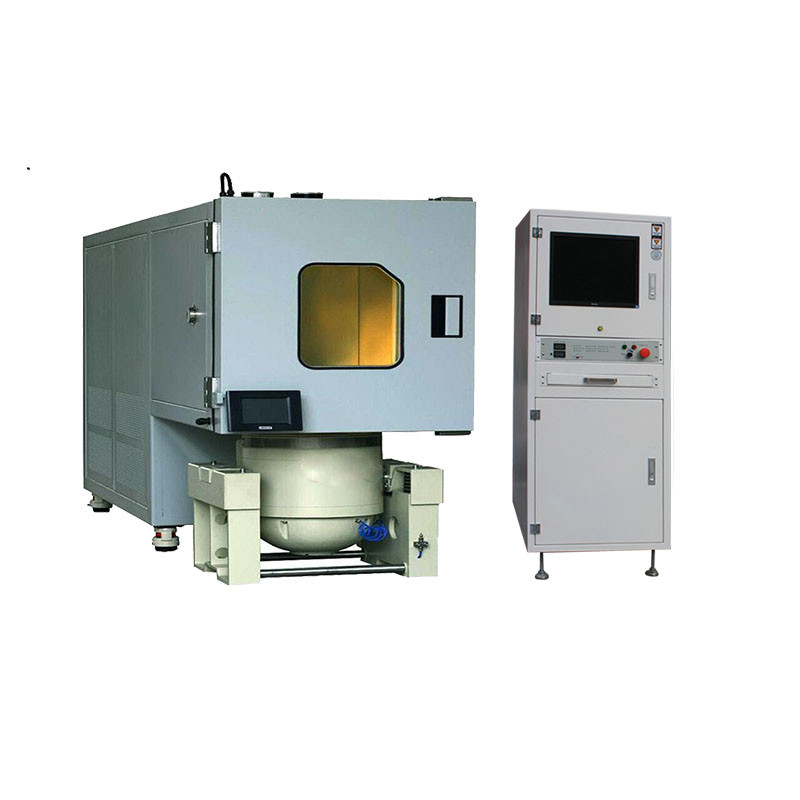

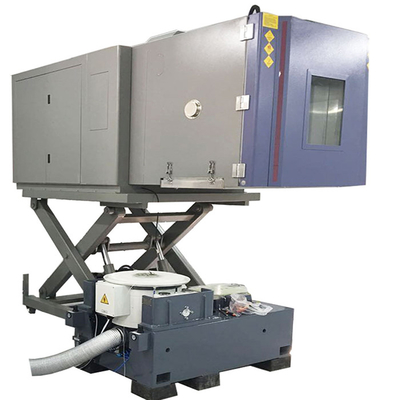

Multi - Functional Vibration Test Systems for Lithium Battery Temperature Humidity Vibration Test

Model Number:	VTS20/TH1000L
MOQ:	1
Price:	10000
Payment Terms:	T/T
Supply Ability:	20sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Vibration Control:

Closed Loop Control

Internal Volume:

10 Liters To 1000 Liters

Vibration Frequency Range:

5 Hz To 2000 Hz

Temperature Range:

-70°C To +180°C

Power Supply:

220V/380V, 50Hz/60Hz

Material:

Stainless Steel

Cooling System:

Air-cooled Or Water-cooled

Vibration Modes:

Random, Sine, Sine On Random, Random On Random

Display:

LCD Touch Screen

Warranty:

1 Year

Humidity Range:

10% To 98% RH

Packaging Details:

Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Supply Ability:

20sets/month

Highlight:

lithium battery vibration test chamber

lithium battery temperature humidity test chamber

touch screen vibration test chamber

Product Description

Multi - Functional Vibration Test Systems for Lithium Battery Temperature Humidity Vibration Test

In the rapidly evolving landscape of energy storage, the safety and reliability of lithium - ion batteries are of paramount importance. Our Multi - Functional Vibration Test Systems are purpose - built to conduct comprehensive temperature, humidity, and vibration tests on lithium batteries, ensuring they meet the highest industry standards.

Unparalleled Testing Capabilities

Precise Vibration Simulation

Our systems are equipped with state - of - the - art vibration generators capable of producing a wide range of vibration frequencies. The frequency span typically ranges from 5Hz to 2000Hz, enabling the simulation of various real - world vibration scenarios. Whether it's the gentle vibrations during transportation in a delivery van or the more intense vibrations in an industrial setting where the battery - powered equipment is operating, our test systems can replicate these vibrations accurately. The vibration amplitude is also fully adjustable, with a maximum displacement of up to ±25mm (peak - to - peak). This flexibility allows for the application of the exact vibration stress levels required to assess the battery's integrity under different conditions.

Comprehensive Environmental Control

Temperature Control: The temperature control in our test systems is highly advanced. It offers an extensive temperature range, from a frigid - 40°C to a sweltering + 85°C. This wide spectrum is essential for mimicking the diverse environmental conditions that lithium batteries may encounter. For example, batteries used in electric vehicles in cold - climate regions need to function properly at low temperatures, while those in tropical areas or in high - heat industrial applications must withstand elevated temperatures. The temperature uniformity within the test chamber is maintained at ±1.0°C, ensuring that all parts of the battery are exposed to the same thermal environment. The temperature deviation is kept to a minimum, at ±0.5°C, providing highly accurate temperature control for reliable test results.

Humidity Control: Humidity can significantly impact the performance and lifespan of lithium batteries. Our test systems can precisely regulate humidity levels, ranging from a dry 10%RH to a humid 95%RH. This wide humidity range is crucial for testing batteries in different geographical locations and usage scenarios. High - humidity environments, such as coastal areas or in equipment used in damp conditions, can cause corrosion and other issues in batteries. By subjecting batteries to controlled humidity conditions in our test chambers, manufacturers can identify potential weaknesses and take preventive measures. The humidity control system ensures a high degree of uniformity, with a uniformity of ±2.0%RH, and a low deviation of ±3%RH, guaranteeing consistent and accurate humidity conditions throughout the test.

Meeting Lithium - Battery - Specific Requirements

Safety and Integrity Testing

Lithium batteries are known for their potential safety risks if not properly designed and tested. Our multi - functional test systems play a crucial role in assessing the safety and integrity of these batteries. By subjecting them to combined temperature, humidity, and vibration stresses, we can identify any potential issues such as electrolyte leakage, thermal runaway, or electrode degradation. For example, vibrations can cause internal components of the battery to shift or loosen, and high temperatures can accelerate chemical reactions that may lead to safety hazards. Through our comprehensive testing, manufacturers can make design improvements to enhance the safety of their lithium - ion batteries.

Performance Optimization

In addition to safety, the performance of lithium batteries is also a key consideration. Our test systems allow for the evaluation of battery performance under different environmental conditions. By measuring parameters such as capacity retention, charge - discharge efficiency, and power output during the combined temperature, humidity, and vibration tests, manufacturers can optimize the battery's performance. For instance, they can determine the ideal operating temperature and humidity ranges for their batteries and develop strategies to mitigate the negative effects of environmental factors on performance.

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications in the Lithium - Battery Industry

Battery Manufacturers

Battery manufacturers rely on our multi - functional vibration test systems to ensure the quality of their products. Whether they are producing lithium - ion batteries for electric vehicles, portable electronics, or energy storage systems, these tests are essential. By conducting in - house testing using our systems, manufacturers can identify and address any design or manufacturing flaws early in the production process. This helps in reducing product recalls, improving customer satisfaction, and enhancing their competitiveness in the market.

Research and Development

In the field of lithium - battery research and development, our test systems are invaluable tools. Researchers can use them to explore new battery chemistries, materials, and designs. By subjecting experimental batteries to a wide range of environmental conditions and vibrations, they can gain insights into the performance and durability of these new concepts. This knowledge can then be used to develop more advanced and reliable lithium - ion batteries for future applications.

Quality Control and Certification

For quality control purposes and to obtain certifications, our test systems are widely used. Third - party testing laboratories and certification bodies use our multi - functional test systems to evaluate lithium batteries according to international standards. These standards often require batteries to undergo combined temperature, humidity, and vibration tests to prove their reliability and safety. By using our accurate and reliable test systems, these organizations can provide objective and trustworthy certification results.

If you are in the lithium - battery industry, whether it's manufacturing, research, or quality control, and are looking for a reliable multi - functional test solution for temperature, humidity, and vibration testing, our systems are the perfect choice. Contact us today to discuss your specific testing requirements and let us help you ensure the safety, reliability, and performance of your lithium - ion batteries.
