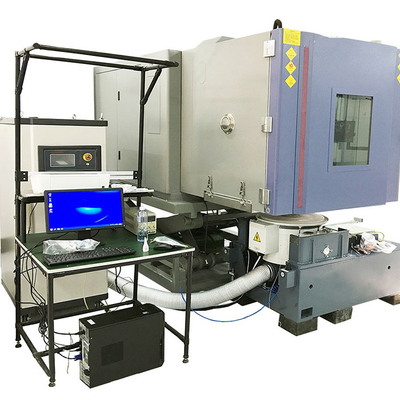

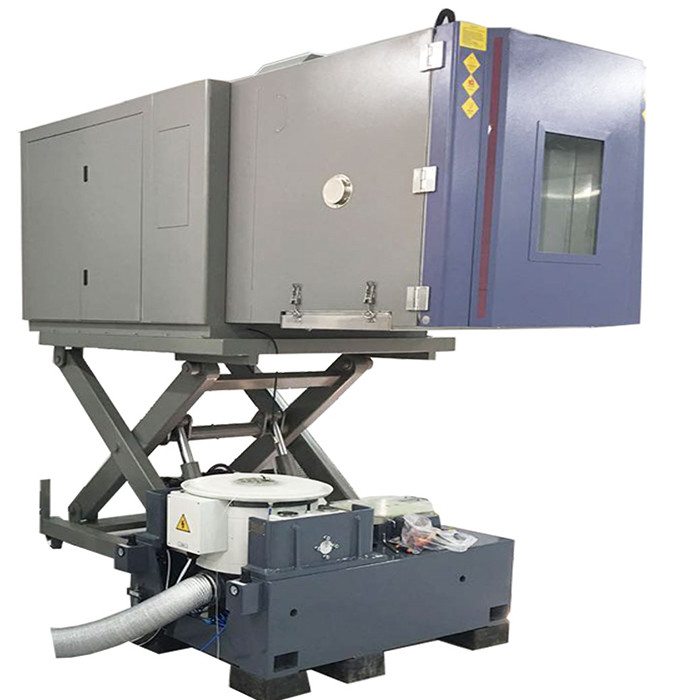

IEC 60721 Vibration Combined Environmental Test Systems for Mobile Phone and Tablet

Model Number:	VTS20/TH1000L
MOQ:	1
Price:	10000
Payment Terms:	T/T
Supply Ability:	20sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Vibration Control:

Closed Loop Control

Internal Volume:

10 Liters To 1000 Liters

Vibration Frequency Range:

5 Hz To 2000 Hz

Temperature Range:

-70°C To +180°C

Power Supply:

220V/380V, 50Hz/60Hz

Material:

Stainless Steel

Cooling System:

Air-cooled Or Water-cooled

Vibration Modes:

Random, Sine, Sine On Random, Random On Random

Display:

LCD Touch Screen

Warranty:

1 Year

Humidity Range:

10% To 98% RH

Packaging Details:

Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Supply Ability:

20sets/month

Highlight:

touch screen vibration test chamber

stainless steel vibration test chamber

touch screen temperature humidity test chamber

Product Description

IEC 60721 Vibration Combined Environmental Test Systems for Mobile Phone and Tablet

In the fast - paced world of mobile technology, ensuring the reliability and durability of mobile phones and tablets is of utmost importance. Our IEC 60721 compliant Vibration Combined Environmental Test Systems are specifically designed to meet the rigorous testing needs of these consumer electronics, subjecting them to a variety of real - world conditions to guarantee their performance.

Adherence to IEC 60721 Standards

IEC 60721 is a comprehensive standard that outlines environmental conditions and their severities for equipment during transportation, storage, and use. Our test systems are meticulously engineered to comply with every aspect of this standard. From the precise control of environmental factors like temperature and humidity to the accurate replication of vibration profiles, we ensure that mobile phones and tablets tested in our systems meet the highest international quality benchmarks. This compliance not only instills confidence in manufacturers but also safeguards the interests of consumers by ensuring that the devices can withstand the challenges of everyday use and transportation.

Precise Vibration Simulation

Vibration Frequency Range

Our test systems can generate vibrations within a wide frequency range, typically from 5Hz to 2000Hz. This broad spectrum allows for the simulation of various real - world vibration scenarios that mobile phones and tablets may encounter. For example, the low - frequency vibrations around 5 - 50Hz can mimic the vibrations during transportation in a vehicle, whether it's a car on a bumpy road or a delivery truck on a long - distance journey. Higher frequencies, up to 2000Hz, can replicate the vibrations caused by the operation of internal components such as the camera autofocus mechanism or the haptic feedback motor. By accurately reproducing these frequencies, we can test how the devices' internal components, such as circuit boards, batteries, and displays, respond to different vibration levels.

Vibration Axes

Mobile devices experience vibrations from multiple directions in real - life situations. Our test systems support multi - axis vibration testing, usually in the X, Y, and Z axes. This multi - axis capability enables a more realistic simulation of the complex vibration patterns that mobile phones and tablets are subjected to. For instance, when a phone is dropped or placed on a vibrating surface, it may experience vertical vibrations (Z - axis), horizontal vibrations from side - to - side movement (X - axis), and rotational vibrations (Y - axis). By simultaneously applying vibrations from these multiple axes, we can comprehensively evaluate the device's structural integrity and the reliability of its components.

Comprehensive Environmental Simulation

Temperature Control

Our test systems offer a wide temperature range, from a cold - 20°C to a hot + 70°C. This range is sufficient to simulate the diverse environmental temperatures that mobile phones and tablets may be exposed to. Whether it's a device being used in a cold outdoor environment during winter or left in a hot car during summer, our chambers can replicate these conditions. The temperature uniformity within the chamber is maintained at ±1.0°C, ensuring that all parts of the device are exposed to the same thermal conditions. The temperature deviation is kept to a minimum, at ±0.5°C, providing highly accurate temperature control for reliable test results. This precise temperature control is crucial for testing the performance of batteries, displays, and other temperature - sensitive components in mobile devices.

Humidity Control

Humidity can significantly affect the performance of mobile phones and tablets. Our systems can precisely control humidity levels, ranging from a dry 10%RH to a humid 95%RH. This wide humidity range is essential for simulating the different climates and usage environments that these devices may encounter. For example, in a bathroom or a tropical region, the high humidity can cause condensation inside the device, potentially leading to short - circuits or corrosion of components. By subjecting the devices to these varying humidity conditions in our test chambers, manufacturers can identify and address potential issues related to moisture sensitivity. The humidity control system ensures a high degree of uniformity, with a uniformity of ±2.0%RH, and a low deviation of ±3%RH, guaranteeing consistent and accurate humidity conditions throughout the test.

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications in Mobile Device Testing

Durability Testing

Our IEC 60721 compliant test systems are used to conduct durability tests on mobile phones and tablets. By subjecting the devices to a combination of vibrations, temperature changes, and humidity variations, manufacturers can assess how well the devices can withstand the rigors of daily use and transportation. For example, repeated exposure to vibrations during transportation can cause components to loosen or become damaged over time. By simulating these conditions in our test chambers, manufacturers can identify weak points in the device's design and make improvements to enhance its durability.

Component Reliability Testing

The test systems are also used to test the reliability of individual components in mobile devices. For instance, the battery's performance can be evaluated under different temperature and humidity conditions while being subjected to vibrations. This helps manufacturers ensure that the battery can maintain its capacity and functionality even in challenging environments. Similarly, the reliability of the display, camera, and other components can be tested to ensure that they function properly under various environmental stressors.

Quality Assurance

In the highly competitive mobile device market, quality assurance is crucial. Our test systems play a vital role in ensuring that only high - quality mobile phones and tablets reach the market. By conducting comprehensive tests in accordance with the IEC 60721 standard, manufacturers can identify and rectify any potential issues before the products are released. This not only reduces the number of product returns and customer complaints but also enhances the brand reputation of the manufacturer.

If you are involved in the mobile phone or tablet manufacturing industry and are looking for a reliable IEC 60721 compliant test solution, our Vibration Combined Environmental Test Systems are the ideal choice. Contact us today to discuss your specific testing requirements and let us help you improve the quality and reliability of your mobile devices.
