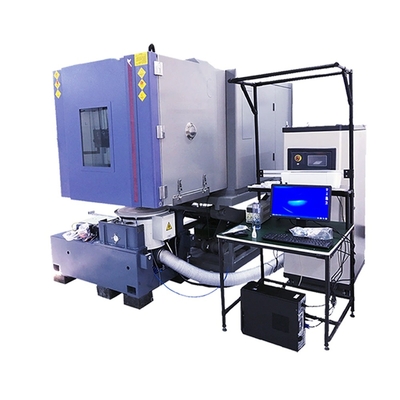

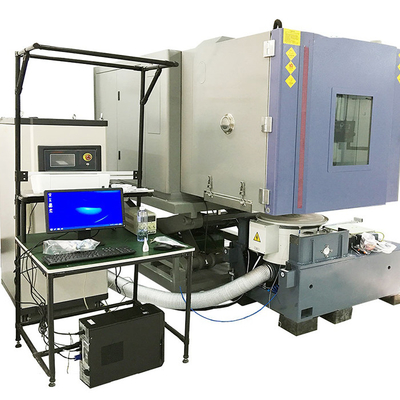

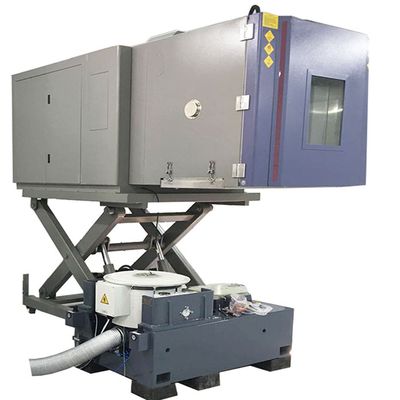

MIL - STD - 202 Temperature Humidity Vibration Test Chambers for Defense and Aerospace Industry

Model Number:	VTS20/TH1000L
MOQ:	1
Price:	10000
Payment Terms:	T/T
Supply Ability:	20sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Vibration Control:

Closed Loop Control

Internal Volume:

10 Liters To 1000 Liters

Vibration Frequency Range:

5 Hz To 2000 Hz

Temperature Range:

-70°C To +180°C

Power Supply:

220V/380V, 50Hz/60Hz

Material:

Stainless Steel

Cooling System:

Air-cooled Or Water-cooled

Vibration Modes:

Random, Sine, Sine On Random, Random On Random

Display:

LCD Touch Screen

Warranty:

1 Year

Humidity Range:

10% To 98% RH

Packaging Details:

Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Supply Ability:

20sets/month

Highlight:

touch screen vibration test chamber

stainless steel vibration test chamber

touch screen temperature humidity test chamber

Product Description

MIL - STD - 202 Temperature Humidity Vibration Test Chambers for Defense and Aerospace Industry

In the defense and aerospace sectors, where the margin for error is minimal and equipment reliability is non - negotiable, our MIL - STD - 202 compliant Temperature Humidity Vibration Test Chambers play a pivotal role. These chambers are engineered to subject components and systems to the harsh environmental conditions they may encounter during military operations and space missions, ensuring their performance and durability.

Stringent MIL - STD - 202 Compliance

MIL - STD - 202 is a comprehensive standard that outlines a series of environmental and mechanical tests for electronic and electrical components used in military and aerospace applications. Our test chambers are meticulously designed to meet every requirement of this standard. From the precise control of temperature and humidity levels to the accurate replication of vibration profiles, we leave no room for deviation. This compliance not only guarantees that the tested equipment can withstand the rigors of real - world scenarios but also ensures that it meets the strict regulatory and quality control demands of the defense and aerospace industries.

Precise Temperature Control

Wide Temperature Range

Our test chambers offer an extensive temperature range, spanning from a bone - chilling - 65°C to a sweltering + 150°C. This broad spectrum allows for the simulation of diverse environmental conditions, from the frigid temperatures of high - altitude flights and polar military operations to the intense heat generated by equipment during extended use or in desert - like environments. Whether it's testing the performance of a missile guidance system in the cold of outer space or an aircraft's engine components in the heat of a combat zone, our chambers can provide the exact temperature conditions required.

High - Precision Temperature Regulation

The temperature uniformity within the chamber is maintained at an impressive ±1.0°C. This means that all components placed inside the chamber are exposed to the same thermal environment, eliminating any variations that could skew test results. Additionally, the temperature deviation is kept to a minimum, at ±0.5°C. This high - level precision in temperature control ensures that the tests are consistent and reliable, enabling accurate evaluation of how components will perform under specific temperature conditions.

Accurate Humidity Control

Humidity Range

Humidity is a critical factor that can significantly impact the performance of electronic and electrical components. Our test chambers can precisely control humidity levels, ranging from a dry 10%RH to a humid 98%RH. This wide humidity range is essential for simulating the diverse climates that defense and aerospace equipment may encounter, from the arid deserts of the Middle East to the humid jungles of Southeast Asia. By subjecting components to these varying humidity conditions, we can identify potential issues such as corrosion, short - circuits, or degradation of materials due to moisture.

Humidity Uniformity and Deviation

The humidity control system in our chambers ensures a high degree of uniformity, with a uniformity of ±2.0%RH. This ensures that all parts of the test sample are exposed to the same humidity levels. The humidity deviation is also tightly controlled, at ±3%RH, providing consistent and accurate humidity conditions throughout the test. This level of precision in humidity control is crucial for obtaining reliable test results, especially when testing components that are sensitive to moisture.

Realistic Vibration Simulation

Vibration Frequency Range

Our test chambers are equipped with advanced vibration generation systems that can produce vibrations within a wide frequency range, typically from 1Hz to 2000Hz. This range covers the frequencies associated with various real - world scenarios, such as the vibrations caused by aircraft engines, the movement of military vehicles over rough terrain, or the shockwaves from explosions. Whether it's testing the resilience of a satellite's communication equipment to the vibrations during launch or the durability of a soldier's portable electronics in a combat zone, our chambers can accurately replicate the relevant vibration frequencies.

Vibration Axes

To provide a more comprehensive and realistic test environment, our chambers support multi - axis vibration testing, typically in the X, Y, and Z axes. This allows for the simulation of complex vibration patterns that components may experience in actual use. For example, an aircraft's avionics systems are subjected to vibrations from multiple directions during flight, including vertical vibrations during takeoff and landing (Z - axis), horizontal vibrations during acceleration and deceleration (X - axis), and lateral vibrations during turns (Y - axis). By applying vibrations along these three axes simultaneously, our test chambers can more accurately assess the performance and integrity of components under real - world vibration conditions.

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications in Defense and Aerospace

Defense Equipment Testing

In the defense industry, our MIL - STD - 202 test chambers are used to test a wide range of equipment. This includes communication devices, weapons systems, and military vehicles. For example, communication radios need to function reliably in all environmental conditions, from the hot and humid jungles of Southeast Asia to the cold and dry deserts of the Middle East. By subjecting these radios to combined temperature, humidity, and vibration tests in our chambers, military engineers can ensure their performance under the most challenging circumstances. Weapons systems, such as missile guidance systems and firearm components, are also tested to ensure their accuracy and reliability in extreme conditions.

Aerospace Component Validation

In the aerospace sector, our test chambers are essential for validating the performance of various components. Avionics systems, which are critical for aircraft operation, need to be able to withstand the vibrations and environmental conditions during flight. Our chambers can simulate the high - altitude low - temperature conditions, as well as the intense vibrations during takeoff, landing, and in - flight maneuvers. This helps aerospace manufacturers ensure the safety and reliability of their aircraft components. Additionally, components for satellites and spacecraft are tested in our chambers to ensure their functionality in the harsh environment of space, where temperature extremes, high humidity (in some cases), and vibrations during launch are significant challenges.

If you are involved in the defense or aerospace industry and are looking for a reliable MIL - STD - 202 compliant test solution, our Temperature Humidity Vibration Test Chambers are the ideal choice. Contact us today to discuss your specific testing requirements and let us help you ensure the quality and reliability of your equipment.
