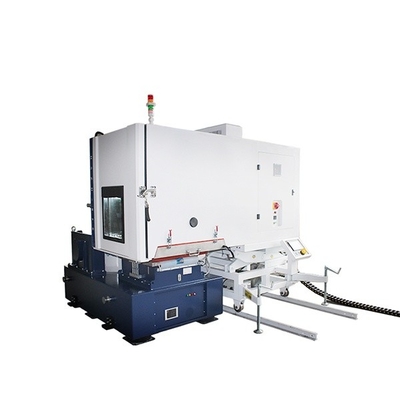

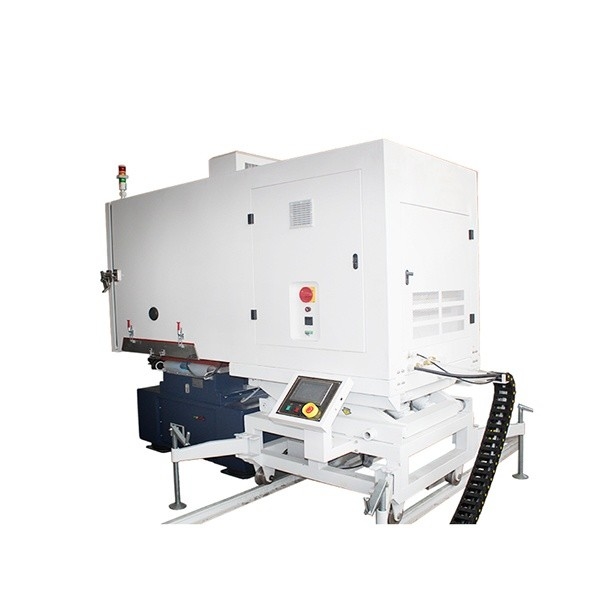

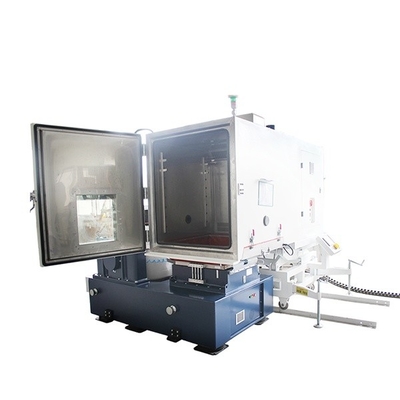

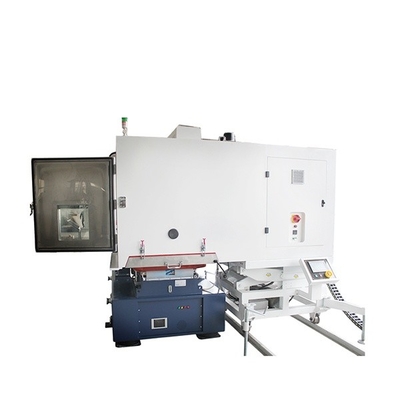

IEC 60068 Compliant Combined Environmental Vibration Test Systems for Electronic Components

Model Number:	VTS20/TH1000L
MOQ:	1
Price:	10000
Payment Terms:	T/T
Supply Ability:	20sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Vibration Control:

Closed Loop Control

Internal Volume:

10 Liters To 1000 Liters

Vibration Frequency Range:

5 Hz To 2000 Hz

Temperature Range:

-70°C To +180°C

Power Supply:

220V/380V, 50Hz/60Hz

Material:

Stainless Steel

Cooling System:

Air-cooled Or Water-cooled

Vibration Modes:

Random, Sine, Sine On Random, Random On Random

Display:

LCD Touch Screen

Warranty:

1 Year

Humidity Range:

10% To 98% RH

Packaging Details:

Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Supply Ability:

20sets/month

Highlight:

iec 60068 vibration test chamber

iec 60068 temperature humidity test chamber

electronic components vibration test chamber

Product Description

IEC 60068 Compliant Combined Environmental Vibration Test Systems for Electronic Components

In the fast - paced world of electronics, the reliability of components is paramount. Electronic components are expected to function flawlessly across a wide range of environmental conditions. Our IEC 60068 - compliant Combined Environmental Vibration Test Systems are designed to precisely simulate these conditions, ensuring that your electronic components meet the highest standards of quality and durability.

Meeting IEC 60068 Standards

The IEC 60068 standard sets rigorous guidelines for environmental testing of electronic components. Our test systems are meticulously engineered to adhere to every aspect of this standard. From the precise control of temperature and humidity to the accurate generation of vibration profiles, we ensure full compliance. This compliance not only gives you the confidence that your components are tested according to international norms but also helps you meet regulatory requirements in various markets around the world.

Comprehensive Environmental Simulation

Temperature Control

Our systems offer an extensive temperature range, from a frigid - 55°C to a sweltering + 125°C. This wide span allows for the simulation of diverse environmental conditions, from the cold storage of electronic devices in Arctic regions to their operation in hot industrial environments. The temperature uniformity within the test chamber is maintained at ±1.0°C, ensuring that all components within the chamber are exposed to the same thermal conditions. The temperature deviation is kept to a minimum, at ±0.5°C, providing highly accurate temperature control for reliable test results.

Humidity Control

Humidity can significantly affect the performance of electronic components. Our systems can precisely control humidity levels, ranging from a dry 10%RH to a humid 95%RH. This is crucial for testing components that are sensitive to moisture, such as printed circuit boards and microchips. The humidity control system ensures a uniformity of ±2.0%RH and a deviation of ±3%RH, guaranteeing consistent and accurate humidity conditions throughout the test.

Precise Vibration Simulation

Vibration Frequency Range

The vibration test capabilities of our systems are equally impressive. They can generate vibrations with frequencies ranging from 5Hz to 2000Hz. This wide frequency spectrum allows for the simulation of various real - world vibration scenarios, such as the vibrations experienced during transportation in trucks or the vibrations in industrial machinery where the components are installed. Whether it's the low - frequency vibrations that can cause mechanical fatigue or the high - frequency vibrations that can affect electrical connections, our systems can replicate them accurately.

Vibration Axes

Our test systems support multi - axis vibration testing. Components can be subjected to vibrations along the X, Y, and Z axes simultaneously. This multi - axis testing provides a more realistic simulation of the complex vibration patterns that electronic components may encounter in their actual operating environments. For example, in a moving vehicle, electronic components are often exposed to vibrations from multiple directions, and our test systems can mimic these conditions precisely.

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications in Electronic Component Testing

Consumer Electronics

In the consumer electronics industry, where products are used in a variety of environments, our test systems are invaluable. Whether it's testing the components in smartphones, tablets, or wearable devices, we can simulate the environmental conditions they may face during daily use, such as temperature changes in different seasons, humidity in bathrooms or kitchens, and vibrations during transportation in a user's pocket or bag. By ensuring the reliability of components at this level, manufacturers can reduce product returns and enhance customer satisfaction.

Automotive Electronics

Automotive electronic components need to withstand extreme environmental conditions. Our IEC 60068 - compliant test systems are used to test components such as engine control units, in - car infotainment systems, and sensors. By subjecting these components to combined environmental and vibration tests, automotive manufacturers can ensure that their products perform reliably under the harsh conditions of vehicle operation, including high temperatures under the hood, vibrations from the engine and road, and humidity in the cabin.

Aerospace and Defense Electronics

In the aerospace and defense sectors, the reliability of electronic components is a matter of safety and mission success. Our test systems are used to test components for aircraft avionics, military communication devices, and missile guidance systems. These components are tested under the most extreme environmental conditions, including high - altitude low - temperature environments, intense vibrations during flight or missile launch, and high humidity in tropical regions. Our systems help ensure that these critical components function flawlessly in the most challenging situations.

If you are involved in the design, manufacturing, or testing of electronic components and are looking for a reliable, IEC 60068 - compliant test solution, our Combined Environmental Vibration Test Systems are the ideal choice. Contact us today to discuss your specific testing requirements and let us help you ensure the quality and reliability of your electronic components.
