Negative Pressure Seal Test Environmental Test Chamber

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-MFY-01A
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Warranty: 1 Year Application: Negative Pressure Seal Tester Machine
Vacuum Chamber Size: 270mm*200 Mm Vacuum Degree: 0~ -90kPa
Gas Source Pressure: 0.7MPa Power: AC 220V 50Hz
Gas Inlet: 6mm Polyurethane Pipe Accuracy: ±1% Of Reading Force
High Light:

0.7MPa Vacuum Seal Leak Detector


Pressure Vacuum sealability tester


12 Kg Seal Leak tester

Product Description

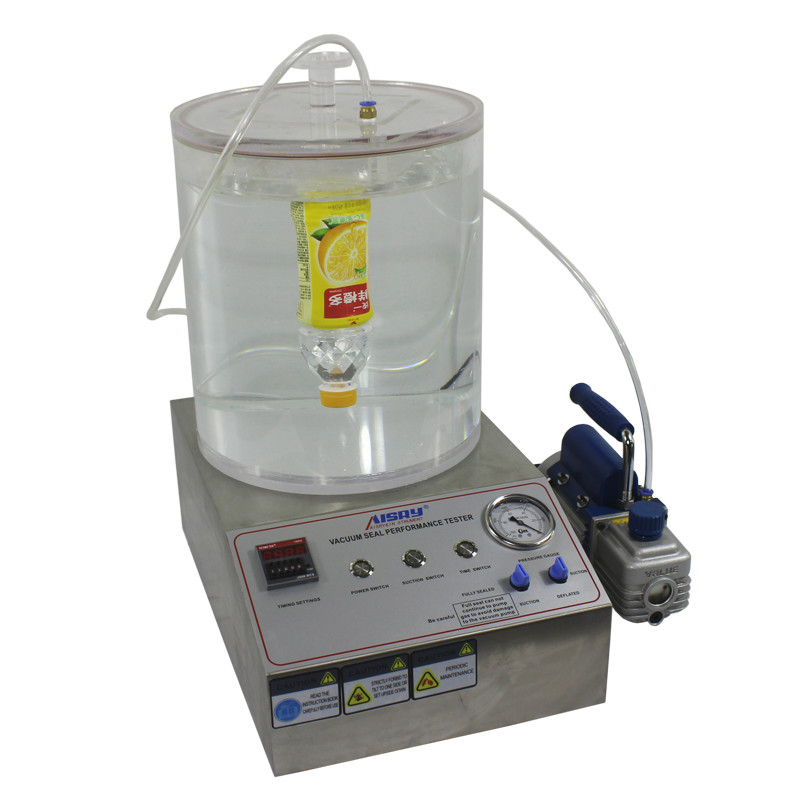

High Quality Vacuum Seal Leak Detector


Application :

Air Leakage Tester use compression air to produce negative pressure by vacuum device to test the seal capability and processing technique of soft plastic packaging material.

It has advantages of easy operation, novel design, convenient to observe test result, especially to detect some tiny pole leak.



It is applicable in testing the seal of soft packaging in food and pharmaceutical industry, etc. It can test the seal capability of soft packaging accurately, which provides scientific date for relative technical requirement. It also can test the specimen which has done drop and compression test.



GB/T 15171, ASTM D3078 -1994.



Technical parameter:

Items Parameter
Accuracy ±1% of reading force
Vacuum Degree 0~ -90kPa
Size of Vacuum Chamber

270mm x 210mm(H) (Standard)

360mm x 585mm(H) (Optional)

460mm x 330mm(H) (Optional)

Gas Source Pressure 0.7MPa (Users provide gas source themselves)
Gas Inlet 6mm polyurethane pipe
Dimensions 470 mm(L)×300 mm(W)×190 mm(H)
Power AC 220V 50Hz
Net Weight 12 Kg


Negative Pressure Seal Test Environmental Test Chamber 0Negative Pressure Seal Test Environmental Test Chamber 1


Negative Pressure Seal Test Environmental Test Chamber 2
