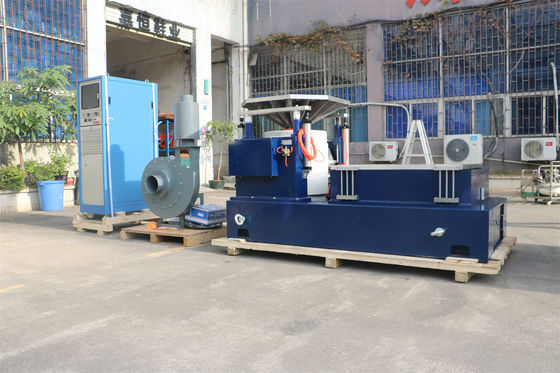

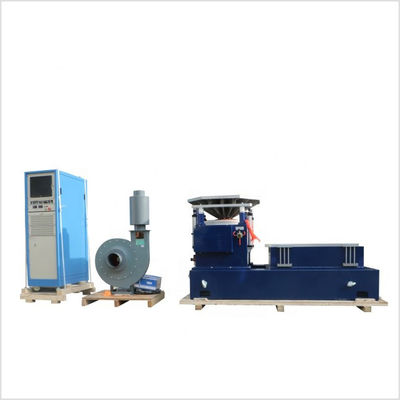

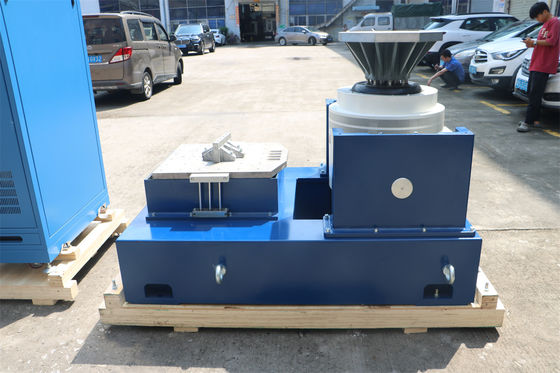

10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table for Three-Axis Vibration Testing

10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table for Three-Axis Vibration Testing

Brand Name: PRECISION
Model Number: VTS-10
MOQ: 1
Price: $6000
Payment Terms: T/T
Supply Ability: 100/month
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Customized Support:
OEM ODM
Sine Force:
10kN
Random Force:
10kN
Shock Force:
20kN
Frequency Range:
1-3000Hz
Displacement:
51mm
Velocity:
2.0
Table Size:
800x800mm
Packaging Details:
Standard export packaging
Supply Ability:
100/month
Highlight:

800x800mm Horizontal Slip Table Electrodynamic Shaker Machine

,

Three-Axis Vibration Capability Vibration Test System

,

Electrodynamic Control Electrodynamic Vibration Tester

Product Description

10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table



Our 10kN Electrodynamic Shaker Machine is a versatile and cost-effective system, engineered for precise, multi-axis testing of medium-sized components and assemblies. Delivering a controlled 10 kN (1,000 kgf) of force and featuring a practical 800mm x 800mm Horizontal Slip Table, this integrated unit provides ample space and the necessary power for rigorous product validation across the horizontal (X and Y) axes, complemented by vertical (Z-axis) testing on the shaker. It is the ideal tool for laboratories seeking a combination of precision, versatility, and efficiency.



Key Features



  • Precision 10 kN Force Output: Provides stable and accurate force, suitable for rigorous durability and fatigue testing of sensitive components and prototypes, ensuring high data fidelity.

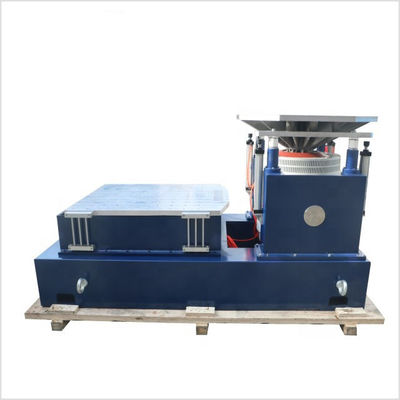

  • Large 800mm x 800mm Horizontal Slip Table: The expansive platform efficiently accommodates a wide range of medium-to-large components, sub-assemblies, and packaged products, maximizing testing throughput and flexibility.

  • Three-Axis Vibration Capability: This integrated system allows for comprehensive testing in the vertical (Z-axis) on the shaker and the critical horizontal (X and Y-axes) on the slip table. This is essential for replicating the complex, multi-directional dynamic loads of real-world use.

  • Electrodynamic Control: Our high-performance shaker utilizes advanced electrodynamic technology to provide accurate, repeatable, and controlled generation of all complex vibration profiles (sine, random, shock, etc.).

  • Highly Stable Horizontal Slip Table: The oil-film slip table is built for high stability and rigidity, effectively handling overturning moments and maintaining precise, low-distortion movement across the horizontal axes.

  • User-Friendly Control System: Features intuitive software that simplifies test programming, execution, and data reporting, making advanced multi-axis testing accessible to all technicians.

  • Versatile Fixturing: The large platform simplifies the mounting of diverse test articles, from individual components to medium-sized packed cartons.



Applications



  • Automotive: Multi-axis durability testing of electronic control units (ECUs), sensors, interior components, and smaller battery modules.

  • Packaging Testing: Rigorous validation of packaged products against multi-directional transit stresses, particularly relevant for simulating shipping environments.

  • Electronics & Telecom: Validation of network devices, electronic enclosures, and larger printed circuit board (PCB) assemblies.

  • Aerospace Components: Qualification of small avionics units, transducers, and structural sub-assemblies for multi-axis dynamic loads.

  • Research & Development: Detailed structural dynamics analysis, resonance searches, and fatigue testing on prototype components.



Benefits



  • Enhanced Versatility: The combination of a large horizontal area and three-axis capability makes this a single, cost-effective solution for diverse testing requirements.

  • Superior Durability Validation: Rigorously tests components under realistic, multi-axis dynamic loads, leading to fewer field failures and enhanced product reliability.

  • High Data Fidelity: The precision control ensures maximum accuracy and repeatability, critical for advanced R&D and quality assurance.

  • Increased Throughput: The 800x800mm table size allows for simultaneous testing of multiple items, maximizing lab efficiency.

Specifications



Rated Sine/ Random/ Shock Force 1,100 kgf/1,100 kgf/2.200 kgf Armature Mass 11kg
Frequency Range 5-3.000 Hz Inserts Size (Standard) M8
Max./Continuous Displacement p-p 51 mm/ 51 mm Load Attachment Points (Standard) 17
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 100/60g Mac Vertical Load Support 300 kg
Armature Diameter 235 mm Stray field @ 152 mm above table ≤1mT (10 gauss)
Fundamental Resonance frequency 2,500 Hz (nom.) ± 5% Dimension LxWxH 940 mmx715 mmx780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg


10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table for Three-Axis Vibration Testing 0



10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table for Three-Axis Vibration Testing 1



Ready to acquire a powerful, precise, and highly versatile multi-axis testing system? Contact our experts today to discuss your requirements for the 10kN Electrodynamic Shaker Machine with 800x800mm Horizontal Slip Table.
