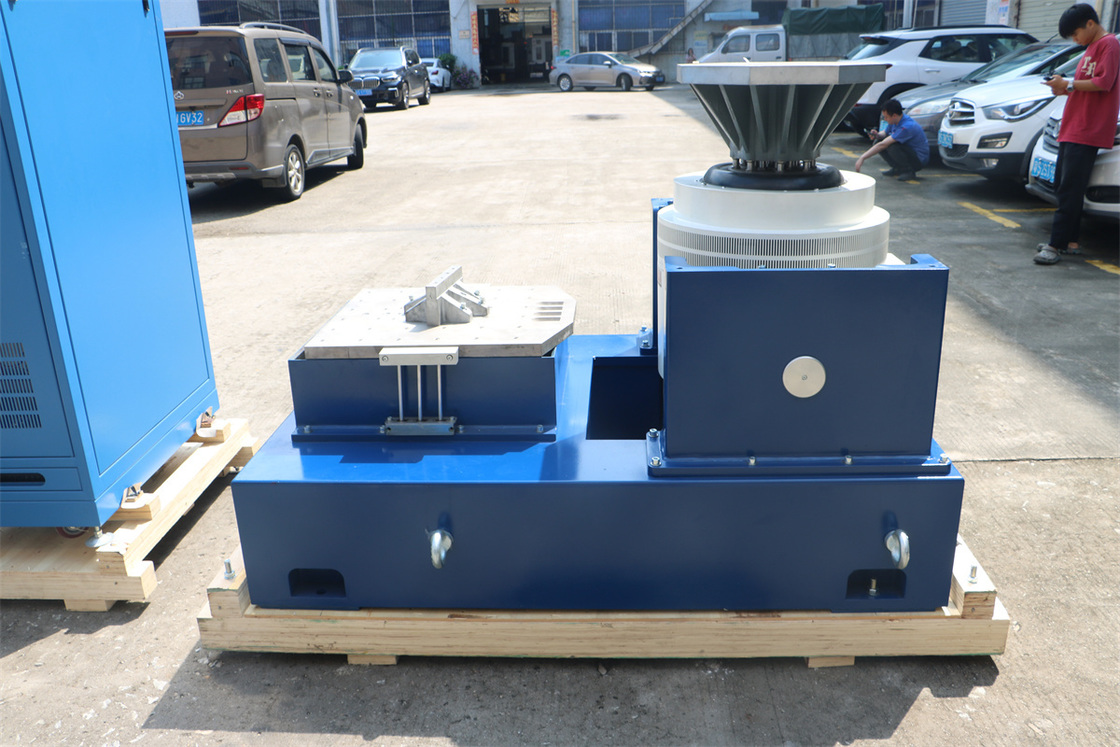

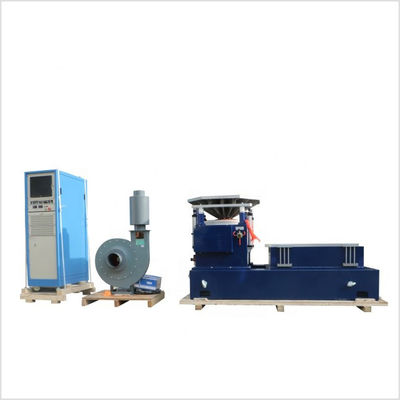

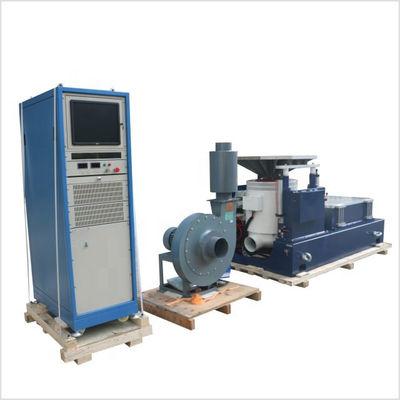

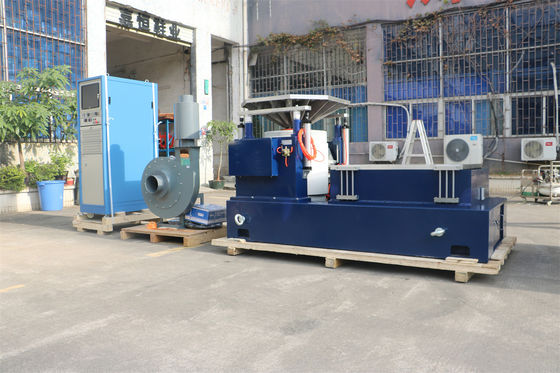

Precision Controlled 10kN Vibration Shaker with 500x500mm Table for Multi-Axis Testing

Precision Controlled 10kN Vibration Shaker with 500x500mm Vertical and Horizontal Table

Our Precision Controlled 10kN Vibration Shaker is a versatile and highly accurate system designed for the rigorous validation of small to medium-sized components. Delivering a controlled 10 kN (1,000 kgf) of force and featuring a practical 500mm x 500mm testing platform for both vertical and horizontal applications, this system is the ideal choice for laboratories requiring high fidelity, multi-axis testing within a compact footprint. It is the perfect tool for R&D, quality assurance, and compliance testing in the electronics, automotive, and medical device sectors.

Key Features

• Precision 10 kN Force Output: Provides stable and controlled force suitable for accurately testing sensitive components and prototypes, ensuring high data fidelity crucial for detailed analysis.

• Compact 500mm x 500mm Platform: The optimized size of the armature (for vertical testing) and the integrated horizontal slip table (for X and Y-axis testing) efficiently accommodates most small and medium-sized components and sub-assemblies.

• Three-Axis Vibration Capability: This integrated system allows for comprehensive testing in the vertical (Z-axis) on the shaker and the horizontal (X and Y-axes) on the slip table. This is essential for replicating the complex, multi-directional dynamic loads of real-world use.

• Precision Electrodynamic Control: Our high-performance shaker provides accurate, repeatable, and controlled generation of all complex vibration profiles (sine, random, shock, etc.), ensuring test results are reliable and auditable.

• Highly Stable Horizontal Slip Table: The integrated oil-film slip table is built for high stability and rigidity, effectively handling overturning moments and maintaining precise movement across the horizontal axes.

• User-Friendly Control System: Features intuitive software that simplifies test programming, execution, and data reporting, making advanced testing accessible to all technicians.

• Quiet & Lab-Friendly Operation: Designed for integration into research and development laboratories, the system operates efficiently while maintaining a lower noise profile compared to larger, higher-force systems.

Applications

• Electronics & Semiconductors: Durability and fatigue testing of printed circuit boards (PCBs), connectors, sensors, and IC packages.

• Automotive: Multi-axis validation of small ECUs, automotive sensors, lighting assemblies, and interior components.

• Medical Devices: Reliability testing of sensitive electronic and mechanical components used in life-critical medical equipment.

• Aerospace Components: Qualification of small avionics units and transducers for multi-axis dynamic loads.

• Research & Development: Detailed structural dynamics analysis and resonance searches on prototype components.

Benefits

• High Data Fidelity: The precision control ensures maximum accuracy and repeatability, critical for advanced R&D and failure analysis.

• Space & Cost Efficient: Provides essential multi-axis testing capability in a compact footprint, offering exceptional value and maximizing laboratory space.

• Superior Durability Validation: Rigorously tests components under realistic, multi-axis dynamic loads, leading to fewer field failures and enhanced product reliability.

• Versatility for Diverse Industries: A flexible platform that meets the needs of R&D, quality assurance, and compliance testing across multiple high-tech sectors.

Specifications

Ready to acquire a powerful, precise, and compact multi-axis testing system? Contact our experts today to discuss your requirements for the Precision Controlled 10kN Vibration Shaker with 500x500mm Vertical and Horizontal Table
