High-Payload 50kN Vibration Table with 1200x1200mm Table and Three-Axis Vibration Capability

High-Payload 50kN Vibration Table with 1200x1200mm Vertical and Horizontal Table

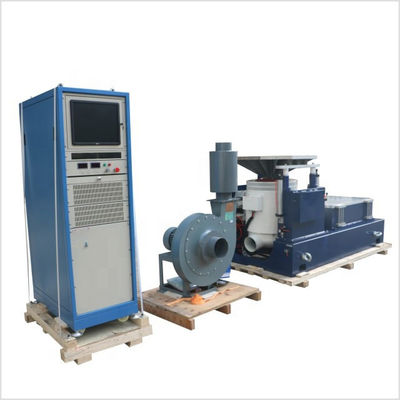

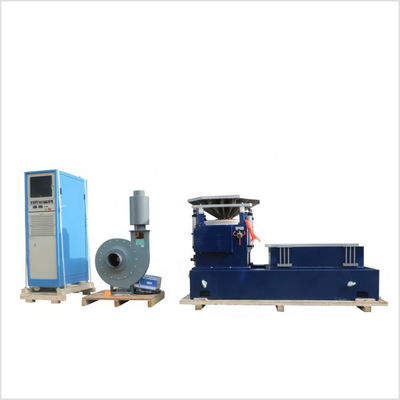

Our High-Payload 50kN Vibration Table is a supremely versatile and robust system, engineered for the comprehensive, multi-axis testing of large and heavy products. Delivering a substantial 50 kN (5,000 kgf) of force and featuring an expansive 1200mm x 1200mm testing platform for both vertical and horizontal applications, this system is the definitive solution for rigorous product validation across various industries. It provides the necessary power and space to subject bulky assemblies to the dynamic stresses of real-world operation and transport.

Key Features

• High-Payload 50 kN Force Output: Provides the immense force required for rigorously testing heavy products and large assemblies, ensuring accurate, full-force compliance with international and OEM testing standards.

• Large 1200mm x 1200mm Testing Platform: The generous size of the armature (for vertical testing) and the integrated horizontal slip table (for X and Y-axis testing) accommodates large components, full cartons, palletized loads, and multi-sample testing.

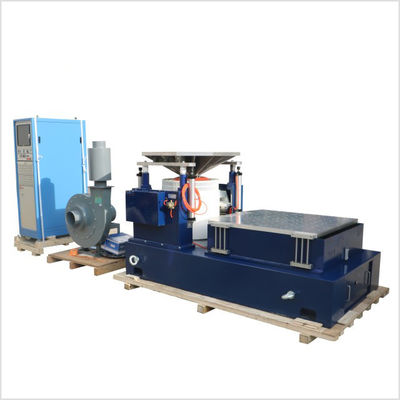

• Three-Axis Vibration Capability: This integrated system allows you to perform tests in the vertical (Z-axis) on the shaker and the horizontal (X and Y-axes) on the slip table. This is crucial for accurately replicating the complex, multi-directional dynamic loads of real-world use.

• Precision Electrodynamic Shaker: Our high-performance shaker provides accurate, repeatable, and controlled generation of complex vibration profiles (sine, random, shock, etc.), ensuring high fidelity across the entire test platform.

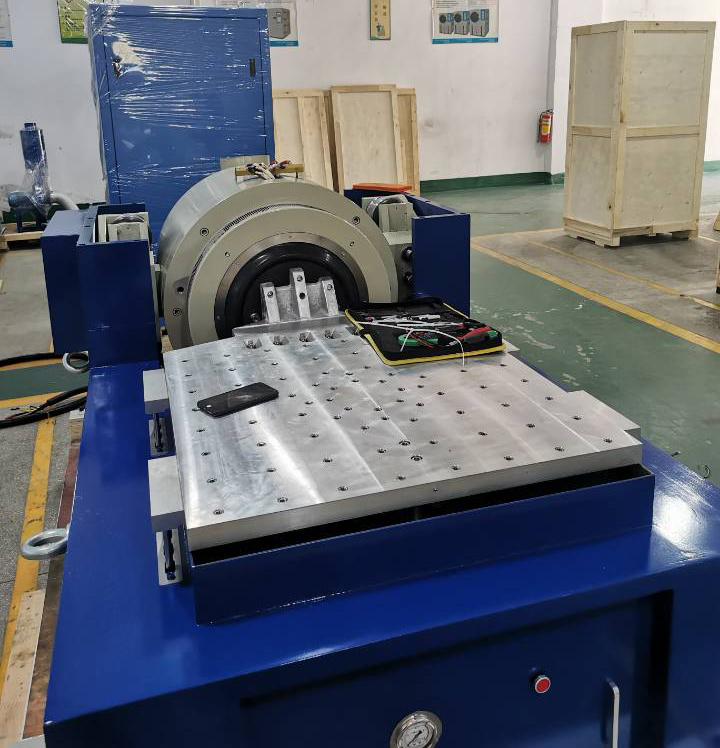

• Robust Horizontal Slip Table: The integrated oil-film slip table is built with a high-rigidity structure and advanced bearing technology to handle significant overturning moments and maximize stability, even with large or eccentric payloads.

• Comprehensive Data Acquisition: Continuously monitors and records all vibration data (acceleration, displacement, force), providing detailed insights and auditable data for analysis, failure mode identification, and design validation.

• Versatile Fixturing: The large platform is designed for easy and secure mounting of a wide variety of test articles, maximizing testing flexibility and throughput.

Applications

• Automotive & EV: Comprehensive multi-axis durability and structural testing of large EV battery packs, powertrain assemblies, and full vehicle interior modules.

• Aerospace & Defense: Qualification of large avionics racks, communication equipment, and structural components for multi-axis dynamic loads.

• Packaging Testing: Rigorous validation of large shipping containers and consolidated palletized loads against multi-directional transit stresses.

• Industrial Equipment: Vibration testing of large electronic enclosures, control panels, and heavy machinery components.

• Structural Dynamics Analysis: Advanced R&D for analyzing the dynamic behavior and identifying resonance frequencies of large prototypes.

Benefits

• Maximum Throughput: The large testing area and high force rating maximize efficiency, allowing for high-volume or large-scale product validation in fewer cycles.

• Unrivaled Test Realism: The multi-axis capability and high-payload capacity ensure the most accurate simulation of severe, real-world dynamic environments.

• Superior Durability Validation: Rigorously tests products under realistic, multi-axis dynamic loads, leading to fewer field failures and enhanced product reliability.

• Versatility for All Industries: Provides a flexible platform that meets the needs of advanced R&D and high-volume quality assurance across multiple sectors.

Specifications

Ready to test your large, heavy products with high force and multi-axis capability? Contact our experts today to discuss your requirements for the High-Payload 50kN Vibration Table with 1200x1200mm Vertical and Horizontal Table..
