High-Frequency 50kN Electrodynamic Vibration Test System with 1000x1000mm Testing Table

High-Frequency 50kN Vibration Test System with 1000x1000mm Testing Table

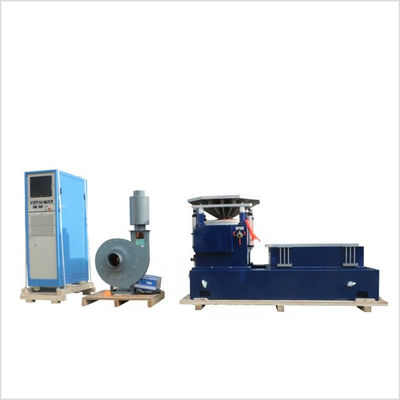

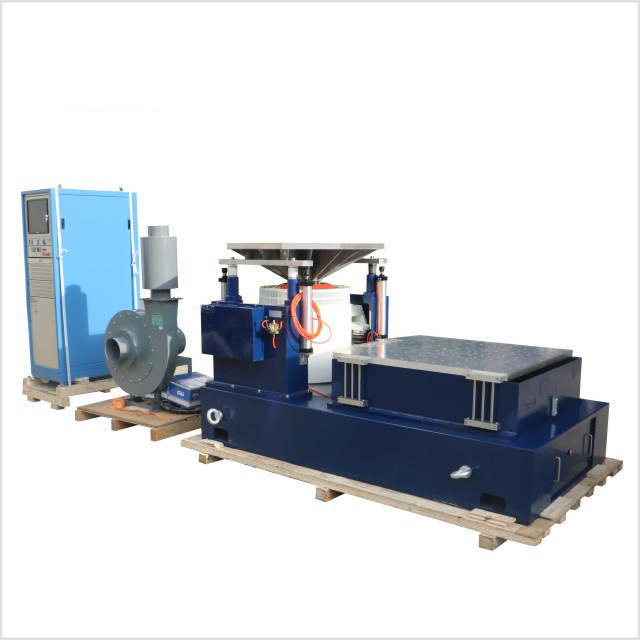

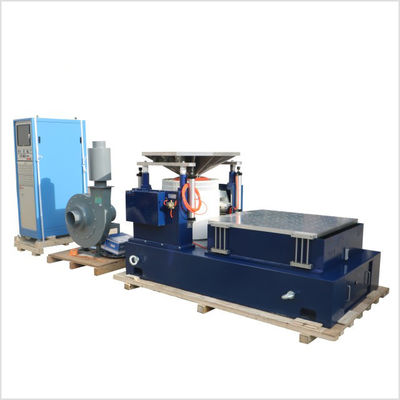

Our High-Frequency 50kN Vibration Test System is a top-tier solution combining powerful force with an expansive testing area, specifically engineered for the advanced validation of large, high-tech components. Delivering a substantial 50 kN (5,000 kgf) of force and featuring a large 1000mm x 1000mm Testing Table, this system provides the platform and precision necessary for subjecting large assemblies to high-frequency stresses (up to 3,000 Hz or more). It is the ideal tool for engineers conducting comprehensive structural dynamics analysis and product durability testing where both size and high-frequency fidelity are critical.

Key Features

• High-Force & High-Frequency Capability: Delivers a powerful 50 kN force rating while maintaining exceptional performance across an extended frequency range (typically 5 Hz to 3,000 Hz). This allows you to simulate high-energy operational stresses and pinpoint hidden resonance issues in large structures.

• Large 1000mm x 1000mm Testing Table: The expansive, highly rigid testing table (or head expander) provides a generous mounting surface, ideal for the simultaneous testing of multiple items or single, large assemblies like automotive components, avionics racks, or full electronic enclosures.

• Precision Electrodynamic Shaker: Our high-performance shaker utilizes advanced electrodynamic technology to provide accurate, repeatable, and controlled generation of complex vibration profiles (sine, random, shock, etc.), ensuring high waveform fidelity even at high frequencies.

• High Structural Rigidity: The testing table and armature are engineered with high rigidity to minimize distortion and maximize stability, allowing for the accurate transmission of high-frequency energy across the entire test article.

• Versatile Test Modes: Capable of generating high-precision sine vibration for resonance searches, and complex wide-band random vibration for simulating demanding real-world operational environments.

• Advanced Digital Control System: Features a powerful, intuitive controller for programming and executing complex, multi-variable test sequences, streamlining the validation process.

• Comprehensive Data Acquisition: Continuously monitors and records all vibration data (acceleration, displacement, force), providing detailed insights and auditable data for analysis.

Applications

• Automotive & EV: Structural dynamics analysis and high-frequency durability testing of large EV battery packs, complex electronic control units (ECUs), and full dashboard assemblies.

• Aerospace & Defense: Qualification of large avionics racks, communication equipment, and structural components that experience high-frequency engine or airframe vibrations.

• Electronics & Telecommunications: Durability testing of large server racks, base station equipment, and complex electronic enclosures.

• Structural Dynamics Analysis: Advanced R&D for analyzing the high-frequency dynamic behavior and identifying resonance frequencies of large prototypes.

• Manufacturing QA/QC: Implementing rigorous high-frequency stress screening on large-scale products to uncover latent manufacturing defects.

Benefits

• Unrivaled Testing Scope: The combination of high force, high frequency, and large testing area allows for comprehensive, realistic testing that smaller shakers cannot achieve.

• Superior Data Fidelity: The high-precision system ensures exceptional data accuracy and repeatability, critical for advanced R&D and strict regulatory compliance.

• Accelerated Defect Discovery: The ability to efficiently test large products at high frequencies rapidly uncovers structural and component weaknesses, speeding up the development cycle.

• Maximum Throughput: The large testing table maximizes efficiency, allowing for high-volume or large-scale product validation in fewer cycles.

Specifications

Ready to push the boundaries of high-frequency testing for your large products? Contact our experts today to discuss your requirements for a High-Frequency 50kN Vibration Test System with a 1000x1000mm Testing Table.
