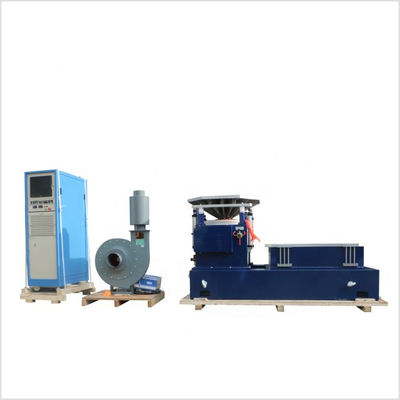

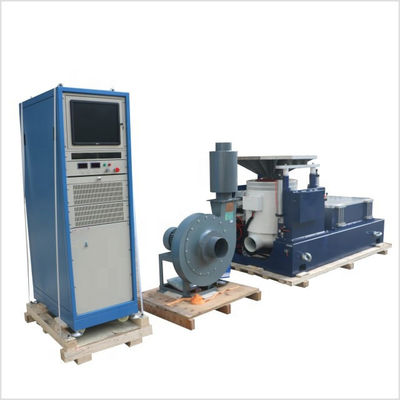

High Precision 60kN Vibration Test Machine with 1000x1000mm Horizontal Slip Table for Multi-Axis Testing

High Precision 60kN Vibration Test Machine with 1000x1000mm Horizontal Slip Table

Our High Precision 60kN Vibration Test Machine is the definitive system for advanced, large-scale product validation. This powerful equipment delivers a substantial 60 kN of force, perfectly integrated with an expansive 1000mm x 1000mm Horizontal Slip Table. Engineered for maximum accuracy and stability, this system provides the ultimate platform for comprehensive, multi-axis testing of large and heavy components, ensuring your products meet the highest standards of reliability and durability.

Key Features

• High-Precision 60 kN Force Output: Delivers a powerful and controlled 60 kN (6,000 kgf) force rating, suitable for rigorous testing of heavy payloads with exceptional waveform fidelity, crucial for high-precision R&D and validation.

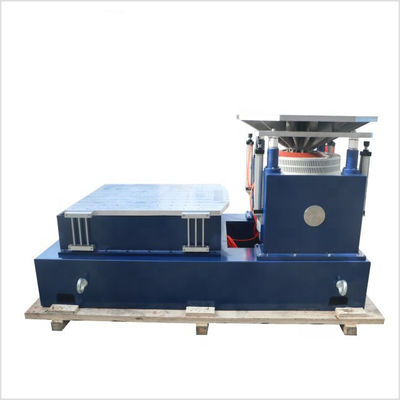

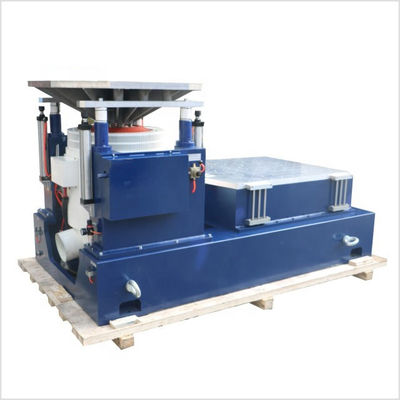

• Large 1000x1000mm Horizontal Slip Table: The expansive, oil-film slip table provides a large, ultra-rigid platform for horizontal (X and Y-axis) testing. This is ideal for mounting large assemblies, full automotive dashboards, or complex electronic racks.

• Three-Axis Vibration Capability: The integrated system allows you to perform tests in the vertical (Z-axis) on the shaker and the horizontal (X and Y-axes) on the slip table. This is essential for accurately replicating the multi-directional dynamic stresses of real-world use.

• Precision Electrodynamic Shaker: Our high-performance shaker provides accurate, repeatable, and controlled generation of complex vibration profiles (sine, random, shock, etc.), ensuring test results are reliable and auditable.

• High Rigidity and Stability: The slip table is engineered with a high-rigidity structure and advanced bearing technology to handle significant overturning moments and maximize stability, even with large or eccentric payloads.

• Advanced Digital Control System: Features a powerful, intuitive controller for programming and executing complex, multi-variable test sequences, streamlining the validation process.

• Comprehensive Data Acquisition: Continuously monitors and records all vibration data (acceleration, displacement, force), providing detailed insights and auditable data for analysis.

Applications

• Automotive & EV: Comprehensive multi-axis testing of heavy EV battery packs, powertrain assemblies, and full interior/exterior modules.

• Aerospace & Defense: Qualification of large avionics racks, payloads, and satellite sub-assemblies for multi-axis dynamic loads.

• Industrial & Heavy Equipment: Vibration testing of large electronic enclosures, control panels, and machinery components.

• Structural Dynamics Analysis: Advanced R&D for analyzing the dynamic behavior and identifying resonance frequencies of large prototypes.

• Packaging Testing: Qualification of large shipping containers and palletized loads using high-force standards.

Benefits

• Unrivaled Test Accuracy: The high-precision shaker and stable slip table ensure exceptional data fidelity, which is critical for meeting stringent OEM and international standards.

• Maximum Throughput: The large testing area maximizes efficiency, allowing for the simultaneous testing of multiple items or single, very large products.

• Superior Durability Validation: Rigorously tests products under realistic, multi-axis dynamic loads, leading to fewer field failures and enhanced product reliability.

• Versatility for R&D: Provides a flexible platform that meets both advanced R&D needs and high-volume product validation requirements.

Specifications

Ready to elevate your testing capabilities with high force and multi-axis precision? Contact our experts today to discuss your requirements for the High Precision 60kN Vibration Test Machine with 1000x1000mm Horizontal Slip Table.
