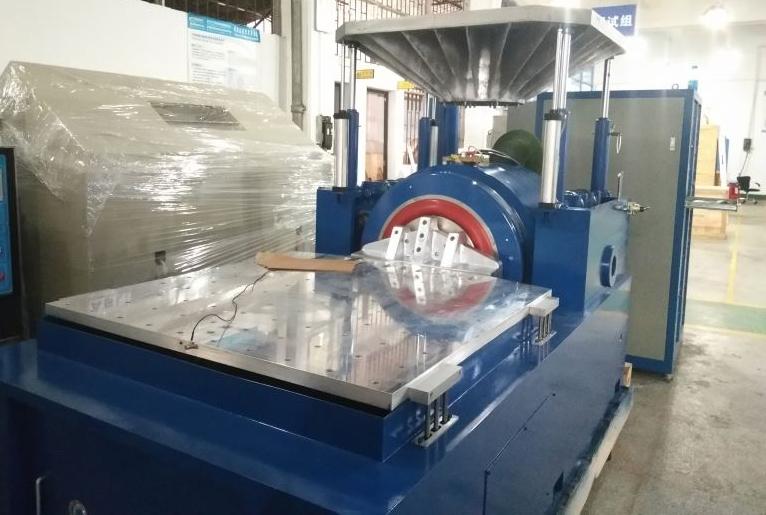

40kN Electro-Dynamic Shaker for EV Battery Testing 1500x1500mm

Our High G-Force Output Electro-Dynamic Shaker is a specialized and powerful solution for the rigorous safety and durability testing of Electric Vehicle (EV) battery packs. As the core of EV technology, the integrity of the battery is critical. Our system is engineered to subject battery packs to extreme acceleration and dynamic stresses, accurately simulating severe road impacts, crashes, and other worst-case scenarios. This is an indispensable tool for guaranteeing that your batteries can withstand the most demanding conditions, ensuring safety, and meeting stringent regulatory standards.

Key Features

• Extreme G-Force Capability: Engineered to deliver exceptional acceleration, often exceeding 100g, to accurately simulate high-impact events and the brutal forces of a crash. This capability is essential for validating the structural integrity of large battery packs.

• High-Payload Capacity: Designed to support the substantial weight of full EV battery packs and modules, ensuring robust performance and precision even with heavy test articles.

• Precision Electrodynamic Control: Provides accurate, repeatable, and controlled generation of complex vibration profiles, including sine, random, and shock, crucial for fulfilling specific automotive and international safety standards.

• EV-Specific Safety Features: Includes integrated safety protocols vital for testing high-voltage batteries, such as dedicated fire suppression ports, high-voltage isolation, over-current protection, and thermal monitoring.

• Compliance-Focused Software: The advanced digital controller is equipped with software that can execute pre-programmed test profiles required by key standards like UN 38.3 and SAE J2380, streamlining your certification process.

• Robust Construction: Built with a reinforced armature and sturdy frame designed to withstand the immense forces generated during high-G testing, ensuring long-term reliability and stability.

Technical Specifications

• Rated Sine/Random/Shock Force: 4,000 kgf / 4,000 kgf / 8,000 kgf

• Armature Mass: 35 kg

• Frequency Range: 5–3,000 Hz

• Inserts Size (Standard): M10

• Max./Continuous Displacement p-p: 100mm / 90mm

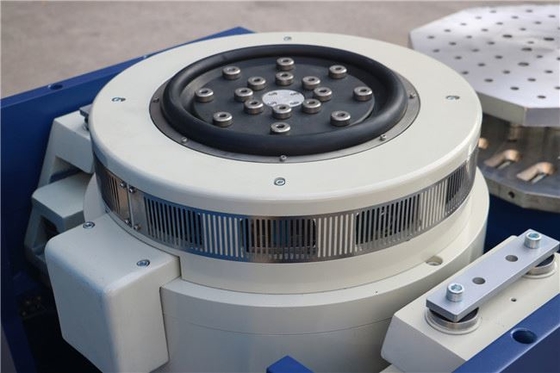

• Load Attachment Points (Standard): 17

• Max. Velocity: 1.8 m/s

• Natural Frequency - Thrust Axis: <3Hz

• Max. Sine/Random Acceleration: 100g / 60g

• Max. Vertical Load Support: 500 kg

• Armature Diameter: 440 mm

• Stray field @152 mm above table: ≤1mT (10 gauss)

• Fundamental Resonance Frequency: 2,500Hz(nom.) ±5%

• Dimension (L x W x H): 1,270 mm x 980mm x 1,135mm

• Allowable Armature Overturning Moment: 500 Nm

• Weight (Uncrated): 2,500 kg
