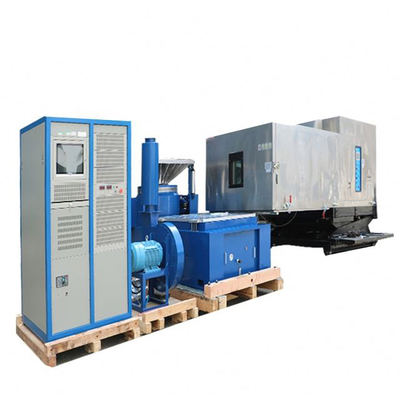

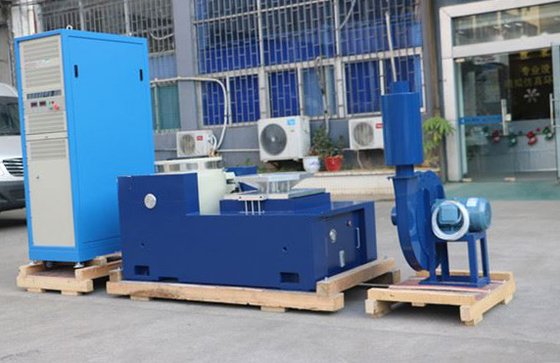

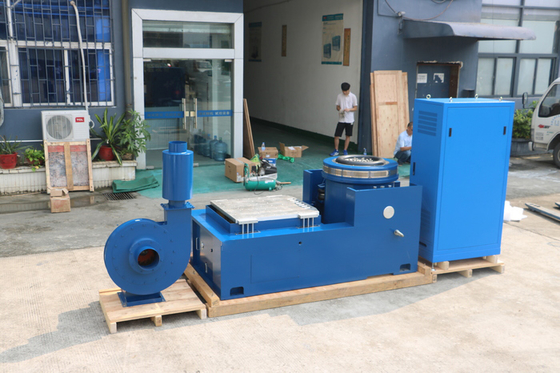

20kN Electrodynamic Vibration Test System 1-3000Hz Frequency Range

Fatigue Testing Vibration Test Machine IEC 60068-2-6 Compliant

Our Fatigue Testing Vibration Test Machine is a precision instrument engineered to meet the demanding requirements of the IEC 60068-2-6 test standard. This crucial international standard outlines the methods for evaluating a product's resistance to fatigue from continuous, low-amplitude, high-frequency vibration. Our system provides a powerful and accurate solution for engineers to simulate years of operational vibration in a matter of hours, accelerating your product validation and guaranteeing long-term durability.

Key Features

• IEC 60068-2-6 Compliance: Fully configured to execute the specific test procedures outlined in IEC 60068-2-6. This includes generating sine vibration profiles at various frequencies and amplitudes for a defined duration to accurately simulate cumulative fatigue.

• High-Precision Electrodynamic Shaker: Our shaker utilizes advanced electrodynamic technology for accurate, repeatable, and controlled generation of sine vibrations with exceptional stability and minimal distortion.

• Extended Test Duration Capability: Designed for continuous, long-term operation, with robust components built for durability and minimal maintenance under demanding fatigue test cycles.

• Comprehensive Data Acquisition: Continuously monitors and records all critical test parameters (acceleration, displacement, frequency), providing detailed insights and auditable data for analysis, failure mode identification, and compliance reports.

• Lab-Grade Precision: The system’s advanced digital controller ensures exceptional accuracy and stability, crucial for generating the precise, repeatable waveforms required for fatigue analysis.

• User-Friendly Interface: The intuitive control panel simplifies test programming, real-time monitoring, and report generation, making it easy to use in any lab environment.

• Customizable Test Fixtures: Our engineering team can design and manufacture application-specific fixtures to securely mount diverse products, optimizing stress transmission and ensuring test integrity.

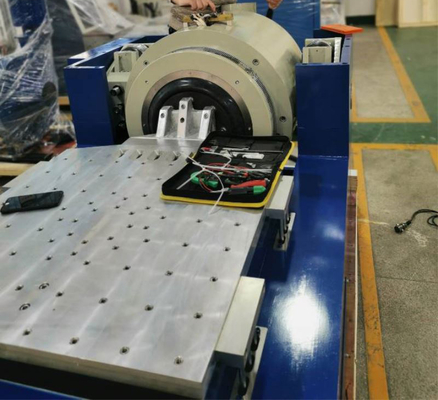

Shaker Specifications

• Rated Sine/Random/Shock Force: 2,000 kgf / 2,000 kgf / 4,000 kgf

• Armature Mass: 30 kg

• Frequency Range: 5-2,800 Hz

• Inserts Size (Standard): M10

• Max./Continuous Displacement p-p: 100mm / 90mm

• Load Attachment Points (Standard): 25

• Max. Velocity: 1.8 m/s

• Natural Frequency - Thrust Axis: <3Hz

• Max. Sine/Random Acceleration: 65g / 60g

• Max. Vertical Load Support: 400 kg

• Armature Diameter: 340 mm

• Stray field @152 mm above table: ≤1mT (10 gauss)

• Fundamental Resonance Frequency: 2,400Hz(nom) ±5%

• Dimension (L x W x H): 1,160 mm x 880mm x 1,050mm

• Allowable Armature Overturning Moment: 500 Nm

• Weight (Uncrated): 1,700 kg

Applications

• Electronics & Semiconductors: Identifying fatigue in solder joints, wire bonds, and other sensitive components due to continuous operational vibrations.

• Automotive Components: Simulating years of engine and road vibrations to evaluate the fatigue life of electronic control units (ECUs), sensors, and interior components.

• Aerospace & Defense: Evaluating the long-term durability of avionics, structural components, and connectors under continuous flight vibrations.

• Medical Devices: Ensuring the long-term reliability of life-critical devices and their components against continuous, low-level vibrations from operational use.

• Failure Analysis & R&D: Uncovering subtle design flaws and manufacturing defects that are only detectable after prolonged vibrational stress.

• Regulatory Compliance: Essential for product validation and certification to meet international standards for fatigue resistance.

Benefits

• Guaranteed IEC 60068-2-6 Compliance: Ensures your products meet this crucial international standard, facilitating global market access and building customer trust.

• Accelerated Fatigue Testing: Dramatically reduces the time required to validate a product's long-term durability, speeding up your R&D cycle and time-to-market.

• Enhanced Product Reliability: Proactively identifies and mitigates potential failure points, guaranteeing a longer service life and reducing costly field failures and warranty claims.

• Reliable & Repeatable Results: Delivers accurate and consistent data, essential for informed decision-making and robust design improvements.

Ready to test the true fatigue life of your products with precision and compliance? Contact our experts today to discuss your requirements for a Fatigue Testing Vibration Test Machine.
