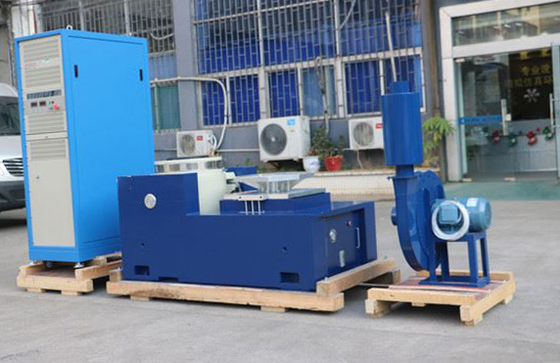

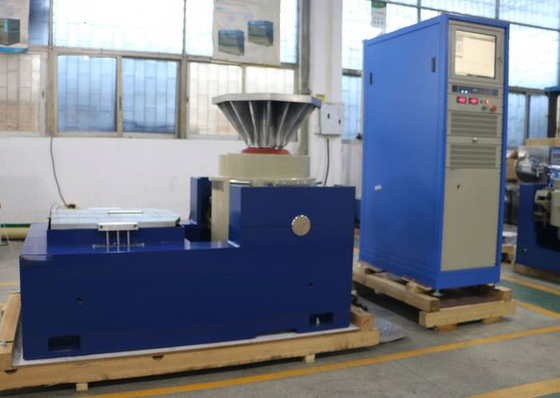

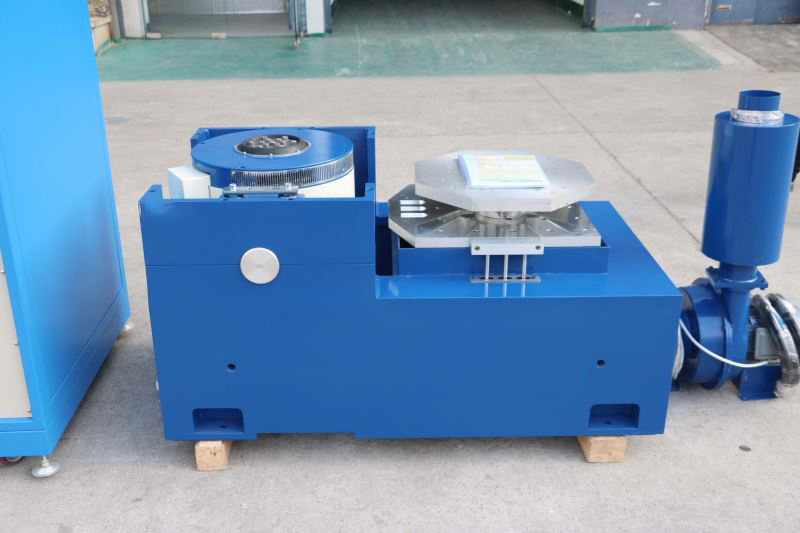

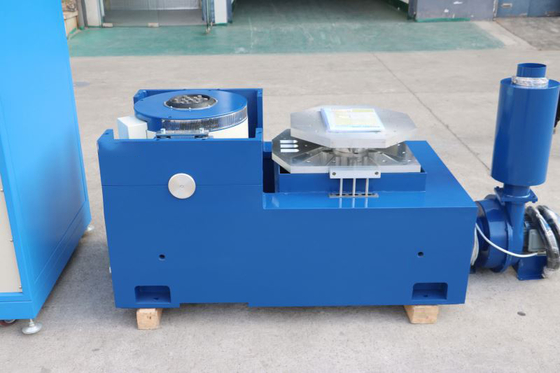

10kN Electrodynamic Vibration Generator with 8-Channel Controller

Lab Environment Quiet Operation Vibration Generator with 8-Channel Controller

Our Lab Environment Quiet Operation Vibration Generator is a specialized and powerful solution designed for the modern research and development lab. This system combines high-precision vibration testing with a unique focus on low-noise operation, ensuring it integrates seamlessly into any scientific or engineering workspace without disruption. Paired with a sophisticated 8-channel vibration controller, it provides unparalleled multi-point data acquisition and control, making it an indispensable tool for advanced R&D, product validation, and detailed component analysis.

Quiet Operation for a Productive Lab

The core of this system is its quiet design. Through advanced cooling technology and an optimized mechanical structure, the vibration generator operates with minimal noise, allowing for a more productive and focused work environment. This is crucial for labs where technicians and engineers need to concentrate on detailed analysis, and for facilities where loud machinery would be a significant disruption. You get the power of a precision shaker without the ambient noise pollution.

8-Channel Controller for Advanced Insights

The 8-channel controller elevates the system's capabilities far beyond standard shakers. This advanced feature allows you to:

• Perform Multi-Point Testing: Simultaneously monitor and control vibration at up to eight different locations on your test article. This provides a detailed, real-time understanding of how a product's structure responds to dynamic stress.

• Execute Complex Tests: Program and run advanced test sequences that require feedback from multiple sensors. This is essential for understanding resonance, structural fatigue, and dynamic load distribution.

• Gather Comprehensive Data: Capture a wealth of synchronized data (acceleration, displacement, etc.) from multiple points, enabling in-depth analysis and auditable reporting.

Technical Specifications

• Rated Sine/Random/Shock Force: 1,100 kgf / 1,100 kgf / 2,200 kgf

• Frequency Range: 5–3,500 Hz

• Max./Continuous Displacement p-p: 51 mm / 51 mm

• Max. Velocity: 2.0 m/s

• Max. Sine/Random Acceleration: 85g / 60g

• Armature Diameter: 335 mm

• Fundamental Resonance Frequency: 3,000 Hz (nom) ±5%

• Armature Mass: 13 kg

• Inserts Size (Standard): M10

• Load Attachment Points (Standard): 25

• Natural Frequency - Thrust Axis: <3 Hz

• Max. Vertical Load Support: 300 kg

• Stray Field @152 mm above table: ≤1mT (10 gauss)

• Dimension (L x W x H): 940 mm x 715 mm x 780 mm

• Allowable Armature Overturning Moment: 300 Nm

• Weight (Uncrated): 1,000 kg

Applications

• Electronics R&D: Testing sensitive electronic components, PCBs, and sensors.

• Medical Device Testing: Ensuring the durability of life-critical equipment in a non-disruptive lab setting.

• Academic & University Research: A perfect tool for advanced research projects and material science studies.

• Small Component Testing: Ideal for precise vibration and shock testing of transducers, optics, and micro-electromechanical systems (MEMS).

Benefits

• Enhanced Lab Productivity: The quiet operation creates a better working environment.

• Deeper Product Understanding: The 8-channel controller provides a level of insight that single-channel systems can't match.

• Accelerated Development: Quickly find and fix design weaknesses, speeding up your R&D cycle.

• Increased Versatility: A single, quiet machine can handle a wide range of lab-based vibration and shock tests.

Ready to test your electronics against the most demanding high-frequency environments? Contact our experts today to discuss your requirements for a High-Frequency Vibration System.
