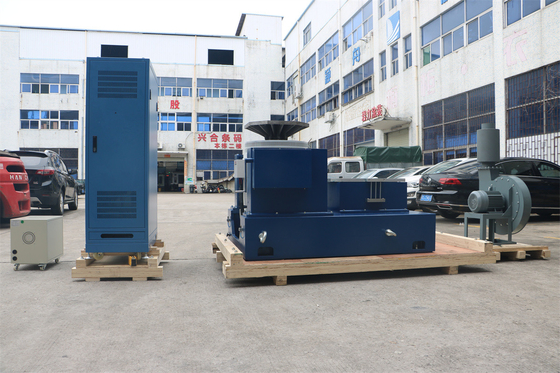

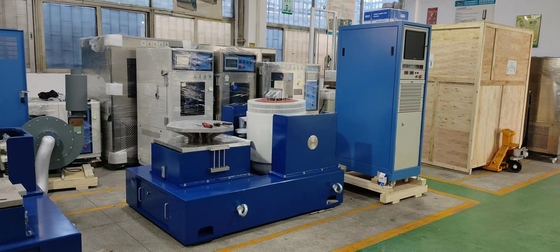

40kN Electrodynamic Shaker System With 1000x1000mm Vertical And Horizontal Vibration Table

40kN Electrodynamic Shaker System With 1000x1000mm Vertical and Horizontal Vibration Table

Our 40kN Electrodynamic Shaker System is a high-force, extraordinarily versatile solution engineered for comprehensive vibration testing of large and heavy products. Equipped with a expansive 1000x1000mm combined vertical and horizontal test table, this system provides unparalleled flexibility for evaluating the durability, reliability, and performance of substantial components and assemblies. Ideal for industries requiring powerful, precise, and efficient vibration analysis, it allows for both vertical (Z-axis) and horizontal (X/Y-axis) testing without re-fixturing, significantly streamlining your testing processes and ensuring product robustness against complex vibrational stresses.

Key Features

• 40 kN Force Rating: Delivers significant force for rigorous testing of large and heavy specimens, capable of driving high accelerations on substantial payloads.

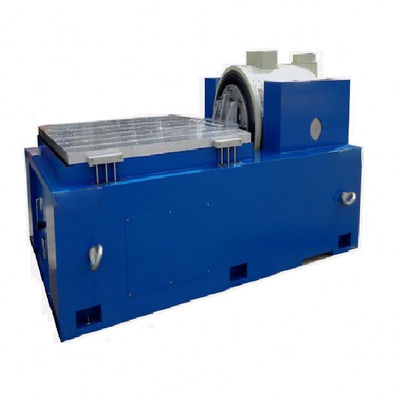

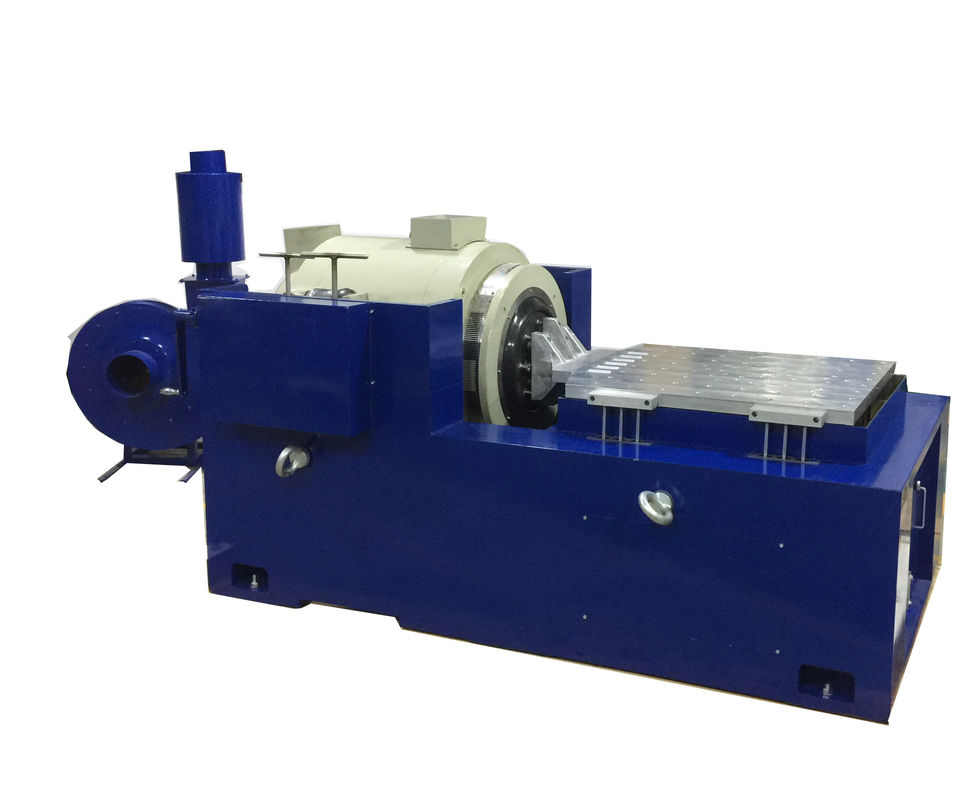

• Integrated 1000x1000mm Test Table: Features a spacious, combined test table for both vertical (Z-axis) and horizontal (X & Y-axis) vibration testing, maximizing efficiency and test article size capacity.

• Vertical & Horizontal Testing Capability: Conduct tests in multiple orientations on a single system, eliminating the need for separate equipment or time-consuming re-mounting.

• Precise Electrodynamic Technology: Ensures accurate and repeatable generation of complex vibration profiles including sine, random, shock, and mixed-mode tests across a wide frequency range.

• Wide Frequency Range: Capable of simulating a broad spectrum of vibrational environments encountered in real-world applications, from low-frequency transport to high-frequency operational vibrations.

• Advanced Digital Control System: Provides precise control over frequency, amplitude, and acceleration, allowing for accurate replication of specified test conditions and real-world data.

• Comprehensive Data Acquisition: Integrated systems for real-time monitoring, recording, and analysis of critical test parameters, providing detailed insights into product behavior under stress.

• Robust & Durable Construction: Built with industrial-grade components, heavy-duty bearings, and a reinforced structure for continuous operation and long-term reliability in demanding testing environments.

• Customizable Fixturing: Our engineering team can design and manufacture application-specific fixtures to securely mount diverse test articles, ensuring optimal vibration transmission and test integrity.

Applications

• Automotive Components & Sub-assemblies: Testing entire dashboards, battery modules, large electronic control units (ECUs), and powertrain components for vehicle durability.

• Aerospace & Defense: Qualification of large avionics racks, structural components, satellite sub-assemblies, and payload systems.

• Large Electronics & Telecommunications: Reliability assessment of server racks, network equipment, large displays, and industrial control panels.

• Packaging & Palletized Loads: Rigorous evaluation of large packaged goods and full unit loads for transportation integrity.

• Renewable Energy: Durability testing of components for wind turbines, solar inverters, and energy storage systems.

• General Industrial Equipment: Vibration analysis of machinery parts, appliances, and heavy consumer goods.

• Research & Development: Advanced material characterization, structural dynamics analysis, and new product validation for large-scale prototypes.

Benefits

• Unmatched Versatility: Conduct both vertical and horizontal tests on a single, powerful platform, enhancing testing capabilities for large products.

• Increased Efficiency & Throughput: The combined large table eliminates re-fixturing, significantly reducing test setup time and accelerating overall testing cycles.

• Reliable & Accurate Performance: Electrodynamic technology ensures consistent, precise, and repeatable test results, crucial for product validation.

• Enhanced Product Quality: Helps identify design flaws, predict fatigue life, and ensures products meet stringent durability standards before market release.

• Cost-Effective Solution: A single, high-capacity system for multi-directional testing reduces the need for multiple machines, optimizing equipment investment and operational costs.
