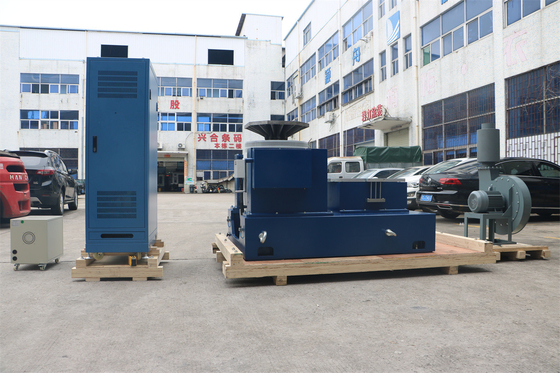

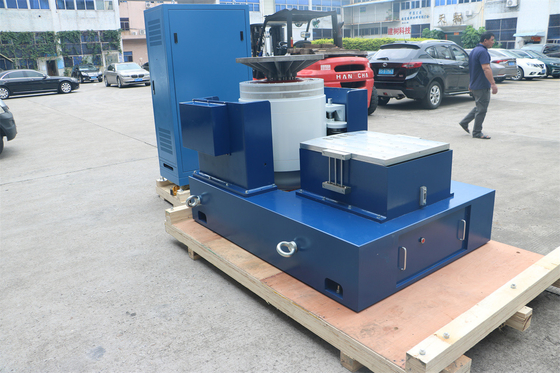

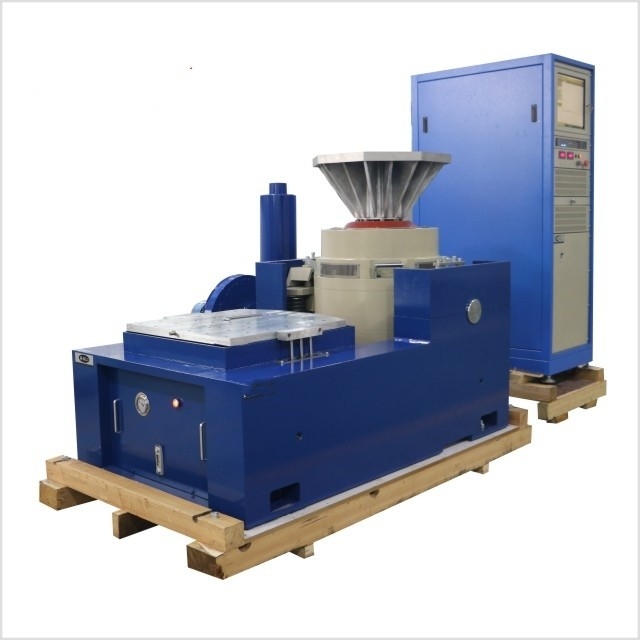

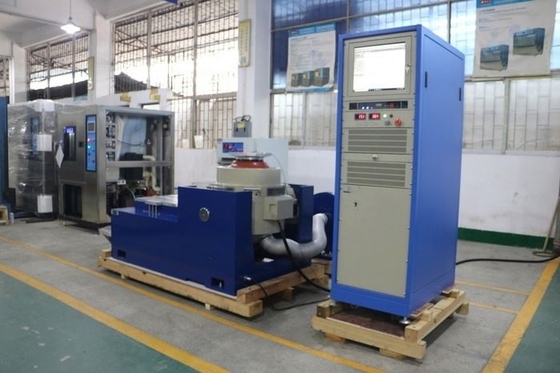

High Precision Electrodynamic Shaker Systems For Packaging Materials FED-STD-101 Standard

Brand Name:	PRECISION
Model Number:	VTS-20
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Customized Support:

OEM ODM

Sine Force:

20kN

Random Force:

20kN

Shock Force:

40kN

Frequency Range:

1-3000Hz

Displacement:

76mm

Velocity:

2.0

Table Size:

1200x1200mm

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Packaging Materials Electrodynamic Shaker Systems

High Precision Electrodynamic Shaker Systems

FED-STD-101 Standard Electrodynamic Shaker Systems

Product Description

Electrodynamic Shaker Systems for Vibration Testing of Packaging Materials according to FED - STD - 101

In the vast landscape of product distribution, packaging materials play a crucial role in safeguarding products during transportation and storage. From delicate electronics to perishable goods, the integrity of the packaging is directly related to the safety and quality of the items within. The FED - STD - 101 standard provides a comprehensive set of guidelines for vibration testing of packaging materials, and an electrodynamic shaker system designed to meet this standard has become an indispensable asset in the packaging industry.

1. The Significance of Vibration Testing for Packaging Materials

Protecting Products During Transit

Packaging materials are exposed to a wide variety of vibrations during the journey from the manufacturer to the end - user. When packaged products are loaded onto trucks, trains, or ships, they experience vibrations from the vehicle's engines, uneven road or sea surfaces, and the operation of cargo - handling equipment. These vibrations can cause damage to the products inside, especially fragile items. For example, a smartphone in a poorly designed package may be subject to internal component displacement due to vibrations during transportation. Vibration testing, as per the FED - STD - 101 standard, aims to simulate these real - world vibrations in a controlled laboratory environment. By subjecting packaging materials to vibrations, manufacturers can identify potential issues such as insufficient cushioning, weak seals, or improper material selection that could lead to product damage. This allows for preventive measures to be taken, protecting the products and reducing financial losses associated with damaged goods.

Ensuring Packaging Integrity

The integrity of packaging materials is not only important for protecting the product but also for maintaining the overall quality of the packaging. Continuous exposure to vibrations over time can lead to wear and tear in the packaging, such as tearing of cardboard boxes, loosening of adhesive seals, or deformation of plastic containers. A damaged package not only poses a risk to the product but can also create safety hazards during handling and transportation. Vibration testing helps in evaluating the long - term durability of packaging materials. By subjecting packaging to vibration profiles that mimic the harsh conditions of transportation, manufacturers can detect early signs of weakness. This enables them to improve the design and construction of packaging materials, ensuring they can withstand the rigors of repeated use and extended transportation.

2. Understanding the FED - STD - 101 Standard

Key Requirements of the Standard

The FED - STD - 101 standard outlines specific requirements for vibration testing of packaging materials. It defines the vibration profiles, including the frequency range, amplitude levels, and test duration. The frequency range typically spans from a few hertz to several hundred hertz, covering the spectrum of vibrations that packaging materials may encounter during different modes of transportation. The amplitude levels, measured in terms of acceleration (g), are carefully calibrated to simulate the intensity of vibrations in real - world scenarios. For example, the amplitude levels for a package on a rough - road truck journey will be different from those on a relatively smooth train ride. The test duration is also clearly defined, ensuring that the packaging materials are subjected to sufficient vibration exposure to accurately assess their long - term durability.

Standardization for the Packaging Industry

This standard plays a vital role in standardizing the vibration testing process across the packaging industry. It provides a common framework for manufacturers, shippers, and testing laboratories. By adhering to the FED - STD - 101 standard, all stakeholders can ensure that packaging materials are tested in a consistent and comparable manner. This promotes fair competition among packaging material manufacturers and helps in maintaining a high level of quality in the packaging industry. It also simplifies the process of certifying packaging materials for safe use, which is essential for product distribution.

3. How the Electrodynamic Shaker System Works

Working Principle of the Electrodynamic Shaker

An electrodynamic shaker system for packaging material testing operates on the principle of electromagnetic induction. It consists of a moving coil suspended within a magnetic field generated by a permanent magnet or an electromagnet. When an electrical current is applied to the moving coil, according to Fleming's left - hand rule, a force is generated that causes the coil to move. This movement is then transferred to the shaker table, on which the packaged product or a representative test specimen is placed. To generate the vibrations required for packaging material testing, the electrical current supplied to the coil is adjusted in such a way that the frequency and amplitude of the resulting vibration can be precisely controlled. The randomness of the vibration, if required by the FED - STD - 101 standard for certain tests, is achieved by using a random signal generator to control the electrical current.

Components of the Electrodynamic Shaker System

The electrodynamic shaker system comprises several key components. The power amplifier is responsible for supplying the necessary electrical power to drive the moving coil. It takes a low - level control signal from the controller and amplifies it to the high - power levels required to generate significant vibrations. The controller serves as the brain of the system. Operators can input specific vibration parameters into the controller, such as the frequency range, amplitude, and the type of vibration profile (e.g., sinusoidal, random). The controller then generates the appropriate control signals to the power amplifier. The shaker table is designed to be a large, flat, and rigid platform to ensure uniform vibration transfer to the packaged product or test specimen. Additionally, sensors, such as accelerometers, are placed on the shaker table and the package to measure the actual vibration levels. These sensors provide feedback to the controller, enabling real - time adjustments to maintain the desired vibration profile as per the FED - STD - 101 standard.

Rated Sine/ Random/ Shock Force	3,000 kgf/3,000kgf/6,000 kgf	Armature Mass	30 kg
Frequency Range	5-3,000 Hz	Inserts Size (Standard)	M10
Max./ Continuous Displacement p-p	51 mm/51 mm	Load Attachment Points (Standard)	17
Max.Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Max. Vertical Load Support	500 kg
Armature Diameter	440 mm	Stray field @152 mm above table	≤1mT (10 gauss)
Fundamental Resonance Frequency	2t500Hz(nom.)±5%	Dimension LxWxH	1,270 mmx980mmx1,135mm
Allowable Armature Overturning Moment	500 Nm	Weight (Uncrated)	2,500 kg

4. Performance Features of the FED - STD - 101 Compliant Electrodynamic Shaker System

High - Precision Vibration Control

To meet the FED - STD - 101 standard, the electrodynamic shaker system must offer high - precision vibration control. The frequency accuracy is typically within ±0.1% of the set value, ensuring that the generated vibrations cover the exact frequency range specified in the standard. The amplitude control is also highly accurate, with an accuracy of around ±1% of the set acceleration value. This level of precision is essential for accurately simulating the real - world vibration conditions that packaging materials experience. For example, when testing the packaging of a high - value glassware product, the shaker system needs to precisely reproduce the vibration levels that could cause the glass to break during transportation.

Wide Dynamic Range

The ability to cover a wide dynamic range is another important feature. Packaging materials may experience vibrations with very low amplitudes during normal transportation on well - maintained roads or in calm sea conditions, and relatively high amplitudes during rough - road travel or in stormy seas. The electrodynamic shaker system needs to be capable of generating vibrations across this wide range. It should be able to simulate the gentle vibrations during normal handling as well as the more intense vibrations during extreme conditions. A wide dynamic range ensures that all possible vibration scenarios can be effectively tested.

Robust and Reliable Construction

Given the repetitive and demanding nature of vibration testing for packaging materials, the electrodynamic shaker system is built with robust and reliable construction. The shaker table and other mechanical components are made of high - strength materials such as steel to withstand the high forces generated during vibration testing. The electrical components, including the power amplifier and controller, are designed to operate continuously under high - stress conditions without degradation. The system is also equipped with safety features, such as overload protection and emergency stop mechanisms, to protect the test specimen, operators, and the equipment itself. This robust construction ensures that the electrodynamic shaker system can perform a large number of tests over its lifespan without significant maintenance, reducing downtime and increasing the efficiency of the testing process.

5. Applications of the Electrodynamic Shaker System in Packaging Material Testing

Testing of Consumer Product Packaging

In the consumer product sector, the electrodynamic shaker system is widely used to test packaging materials for a variety of products, from food and beverages to electronics and cosmetics. For example, when developing a new packaging design for a bottled beverage, the shaker system can be used to test the ability of the package to withstand vibrations during transportation. By subjecting the packaged beverage to vibrations, manufacturers can determine if the bottle cap remains secure, the label stays intact, and the product inside is protected. This helps in improving the overall quality and consumer acceptance of the product.

Evaluation of Industrial Product Packaging

Industrial products often require more robust packaging due to their size, weight, and sensitivity. The electrodynamic shaker system is used to test packaging materials for industrial products such as machinery parts, automotive components, and industrial chemicals. For a large - scale industrial machine part, the packaging is tested to ensure it can protect the part from vibrations during long - distance transportation. The shaker system can simulate the vibrations from different modes of transportation, such as trucks, trains, and ships. This helps in ensuring that industrial products arrive at their destination in good condition, reducing production delays and costs associated with damaged goods.

Development of Packaging for Fragile and High - Value Items

For fragile and high - value items, such as fine art, jewelry, and high - end electronics, the packaging must provide maximum protection. The electrodynamic shaker system is used to test the effectiveness of specialized packaging materials, such as custom - designed foam inserts and high - strength cardboard boxes. For example, when packaging a high - value piece of art for shipping, the shaker system can simulate the vibrations that the package may encounter during air travel. By subjecting the packaged art to these vibrations, manufacturers can ensure that the packaging provides sufficient cushioning and protection, minimizing the risk of damage during transit.

6. Conclusion

The FED - STD - 101 compliant electrodynamic shaker system is an essential tool in the packaging industry. By accurately simulating real - world vibrations, it enables manufacturers to evaluate and improve the performance of packaging materials. With its high - precision vibration control, wide dynamic range, and robust construction, this system plays a crucial role in maintaining the quality and integrity of packaged products during transportation. If your business is involved in the packaging material manufacturing, product distribution, or quality control, investing in a high - quality electrodynamic shaker system that meets the FED - STD - 101 standard can significantly enhance the safety and reliability of your products. Consider reaching out to our team of experts to explore how our electrodynamic shaker systems can be tailored to your specific packaging material testing needs.
