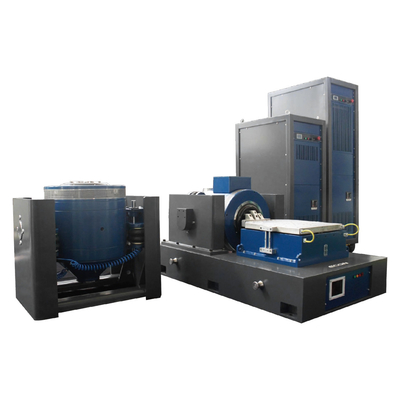

Electrodynamic Vibration Test Systems MIL STD Vibration Testing Table Precise Control

Brand Name:	PRECISION
Model Number:	VTS-40
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Customized Support:

OEM ODM

Sine Force:

40kN

Random Force:

40kN

Shock Force:

80kN

Frequency Range:

1-3000Hz

Displacement:

100mm

Velocity:

2.0

Table Size:

1500x1500mm

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

MIL STD Electrodynamic Vibration Test Systems

Precise Control Vibration Testing Instrument

MIL STD Vibration Testing Table

Product Description

Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing

In the high - stakes military realm, the reliability of equipment is non - negotiable. Military operations often take place in some of the harshest environments on Earth, where equipment must endure extreme vibrations. Our state - of - the - art Electromagnetic Vibration Table, as a core vibration testing instrument, has been meticulously engineered to perform MIL STD vibration testing, providing a crucial solution for ensuring the resilience of military gear.

1. Understanding MIL STD Vibration Testing

The MIL STD (Military Standard) vibration testing, established by the United States Department of Defense, is a comprehensive set of procedures designed to evaluate the ability of military equipment to withstand vibrations encountered during transportation, storage, and operation. Military equipment can be subjected to intense vibrations from various sources. During transportation in military vehicles, aircraft, or ships, equipment experiences vibrations from engines, rough terrains, and air turbulence. In combat situations, vibrations can also be induced by explosions and the recoil of weapons. By adhering to MIL STD vibration testing, military contractors and armed forces can identify potential weaknesses in their equipment, ensuring that it functions flawlessly when it matters most.

2. Key Features of Our Electromagnetic Vibration Table

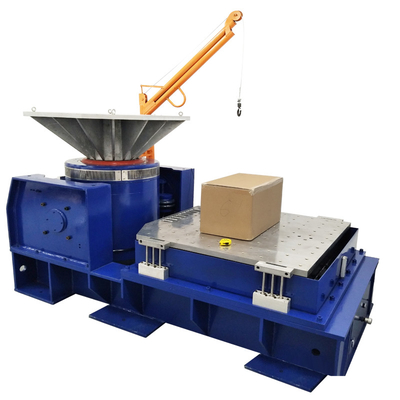

High - Performance Vibration Generation

Our electromagnetic vibration table is equipped with advanced electromagnetic technology that enables it to generate a broad range of vibration frequencies. The frequency span typically ranges from 5 Hz to 3000 Hz. This wide range allows for the accurate replication of the diverse vibration profiles that military equipment may encounter. Whether it's the low - frequency vibrations from a large military truck's engine or the high - frequency vibrations during an aircraft's takeoff and landing, the table can precisely simulate these conditions. The amplitude of vibrations is highly controllable, with a maximum acceleration of up to 100 g and a maximum displacement of ±50 mm. This level of control ensures that equipment is tested under the most challenging and realistic vibration levels.

MIL STD Compliance
Every aspect of our electromagnetic vibration table, from its construction to the control software, has been carefully calibrated and designed to meet the strict requirements of MIL STD vibration testing. The table can execute all the relevant test procedures, including sinusoidal, random, and shock - induced vibration tests as specified in the standard. This compliance gives military organizations and defense contractors the confidence to certify their equipment as meeting the highest military - grade reliability standards.

Customizable Test Profiles

We recognize that different military equipment may require unique testing conditions. Our vibration table allows for the creation of highly customizable test profiles. Engineers can set the specific frequency, amplitude, and test duration according to the requirements of the equipment being tested. For example, a sensitive communication device may need a different vibration profile compared to a rugged weapons system. The table can be programmed to meet the exact needs of each test, providing a tailored testing solution for a wide variety of military equipment.

Robust and Durable Construction

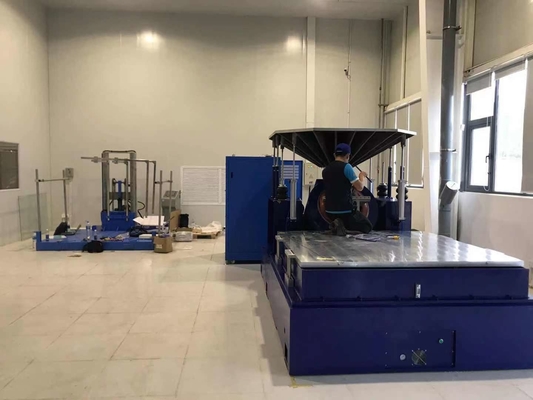

The test platform of our vibration table is designed to securely hold military equipment during testing. It features a large, flat, and stable surface with multiple attachment points to accommodate equipment of various shapes and sizes. The platform is made of high - strength materials that can withstand the high forces generated during testing. The overall construction of the vibration table is robust, ensuring that it can operate continuously under demanding conditions. This durability is essential for military applications, where long - term and consistent performance is crucial.

Precise Control and Monitoring System

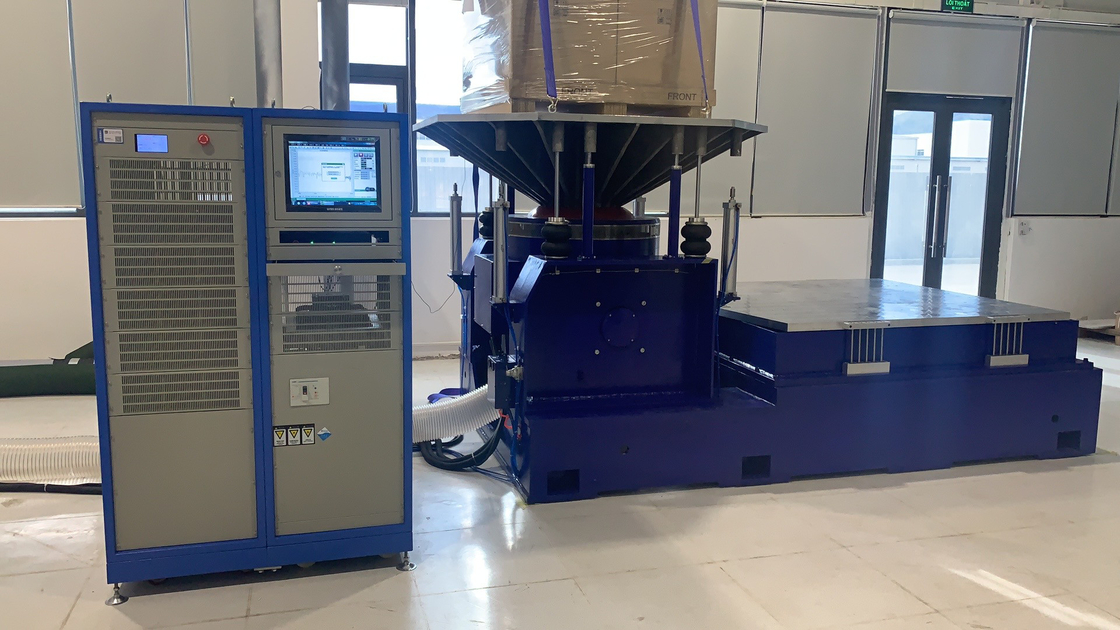

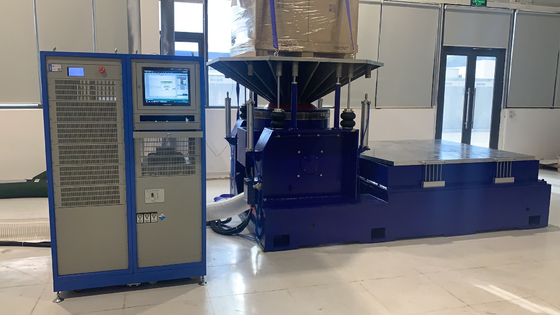

The electromagnetic vibration table is equipped with a state - of - the - art control and monitoring system. The system is PC - based, featuring intuitive software. Operators can easily input test parameters, start and stop the test, and monitor the progress in real - time. The software provides clear visual displays of key data such as vibration frequency, amplitude, and test time remaining. It also has advanced data - logging capabilities, enabling the collection and in - depth analysis of vibration data. This data can be used to identify any signs of stress or potential failure points in the equipment, facilitating the improvement of equipment design and manufacturing processes.

3. Specifications

Rated Sine/ Random/ Shock Force	4,000 kgf/4.000kgf/8.000 kgf	Armature Mass	30 kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M10
Max. Displacement p-p	100 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	115/60g	Max. Vertical Load Support	500 kg
Armature Diameter	440 mm	Stray field @ 152 mm above table	≤lmT (10 gauss)
Fundamental Resonance Frequency	2,500 Hz (nom )士5%	Dimension L x W x H	1,270 mmx980mmx 1,135nm
Allowable Armature Overturning Moment	500 Nm	Weight (Uncrated)	2.500 kg

4. Applications in the Military

Communication Equipment
Military communication devices, such as radios, satellite phones, and data - transmission equipment, are crucial for maintaining communication in the field. Our electromagnetic vibration table is used to test these devices to ensure that they can function properly under vibration. By subjecting them to MIL STD vibration tests, manufacturers can identify and address potential issues such as loose connections, component failures, and interference problems.

Weapons Systems
Weapons systems, including firearms, missile launchers, and artillery, are tested using our vibration table. Vibration testing helps in ensuring the accuracy and reliability of these systems. For example, testing a missile launcher under vibration can reveal any mechanical issues that could affect the precision of missile launches. By addressing these issues through testing, the effectiveness of weapons systems can be enhanced.

Navigation and Surveillance Equipment
Navigation systems like GPS devices and surveillance equipment such as drones and reconnaissance cameras are highly sensitive to vibrations. Our vibration table is used to test these components to ensure their proper functioning in the harsh military environment. By simulating the vibrations experienced during transportation and operation, manufacturers can ensure that these devices provide accurate information, which is crucial for military operations.

Military Vehicles and Aircraft Components
Components of military vehicles, such as engines, suspension systems, and control panels, as well as aircraft components like avionics systems, landing gear, and engine parts, are tested using our electromagnetic vibration table. The ability to simulate the complex vibrations experienced during military operations is crucial for validating the safety and reliability of these components. This helps in reducing the risk of in - field failures and improving the overall performance of military vehicles and aircraft.

5. Conclusion
Investing in our Electromagnetic Vibration Table for MIL STD vibration testing is a strategic move for any military - related organization or defense contractor. With its high - performance vibration generation, strict MIL STD compliance, customizable test profiles, robust construction, and precise control system, it offers a comprehensive solution for ensuring the reliability of military equipment. By using this equipment, military forces can enhance the quality of their gear, reduce the risk of equipment failures, and gain a competitive edge in the global defense arena. Contact us today to learn more about how our vibration table can be customized to meet your specific military testing requirements.
