Fixed Displacement Mechanical Rotary Vibration Table ISTA IA Testing Standard

Brand Name:	PRECISION
Model Number:	VTS-10
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Customized Support:

OEM ODM

Payload:

500kg

Frequency Range:

1 - 300 Rpm

Displacement:

25.4mm

Table Size:

1500x1500mm

Power:

380V/50Hz/3 Phase

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

IA Standard Rotary Vibration Table

Mechanical Rotary Vibration Table

Fixed Displacement Vibration Table

Product Description

Fixed Displacement Mechanical Rotary Vibration Table Meets ISTA IA Testing Standard

In the competitive world of product packaging and shipping, ensuring that products reach their destination in perfect condition is crucial. Our advanced Fixed Displacement Mechanical Rotary Vibration Table has been meticulously engineered to meet the stringent requirements of the ISTA IA testing standard, providing businesses with a reliable and efficient solution for evaluating the durability of their packaged product

1. Understanding the ISTA IA Testing Standard

The International Safe Transit Association's ISTA IA standard is a fundamental benchmark in the packaging industry. It focuses on basic performance - oriented test procedures for single - unit packages. The ISTA IA standard aims to simulate the typical vibrations and mechanical stresses that packages encounter during normal distribution channels, such as transportation by truck, train, or ship. By adhering to this standard, companies can identify potential weaknesses in their packaging design, ensuring that their products are well - protected during transit. This not only reduces the risk of product damage but also enhances customer satisfaction and minimizes costly returns.

2. Key Features of Our Fixed Displacement Mechanical Rotary Vibration Table

Fixed Displacement Rotary Vibration

Our vibration table is uniquely designed to generate rotary vibrations with a fixed displacement. It rotates packages in a controlled manner, replicating the circular movements that can occur during transportation, such as on conveyor belts or in moving vehicles. The fixed displacement feature ensures consistent and repeatable testing conditions. The table can achieve rotational speeds typically ranging from 1 to 100 revolutions per minute (rpm), covering a wide spectrum of possible transportation - related rotational frequencies. This enables the accurate simulation of different real - world scenarios, whether it's the slow rotation of a package on a gentle conveyor belt or the more rapid rotational movements during a rough - road journey.

ISTA IA Compliance

Every aspect of our mechanical rotary vibration table, from its mechanical construction to the control system, has been carefully calibrated and designed to meet the exacting requirements of the ISTA IA testing standard. The table can execute all the necessary test procedures as defined by the standard, including the specific rotational frequencies, test durations, and the required fixed displacement parameters. This compliance gives businesses the confidence to certify that their packaged products meet the industry - recognized ISTA IA standard for safe transit.

Robust and Stable Construction

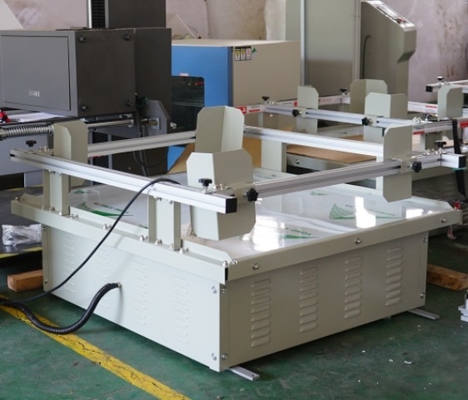

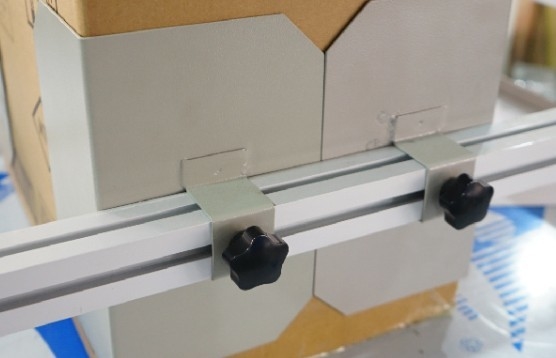

The test platform of the vibration table is built to be robust and stable. It features a large, flat surface area, typically measuring 1500 x 1500 mm, which can securely hold packages of various shapes and sizes. The platform is constructed from high - strength materials that can withstand the forces generated during the rotational vibration testing. Multiple attachment points and fixtures are provided to ensure that packages are firmly secured, preventing any unwanted movement during the test. The overall construction of the table is designed to minimize external vibrations and disturbances, providing a clean and reliable test environment.

Customizable Test Profiles

We understand that different packaged products may require unique testing conditions. Our vibration table allows for the creation of highly customizable test profiles. While the displacement is fixed, engineers can adjust other parameters such as the rotational speed and test duration according to the specific needs of the packaged product being tested. For example, a delicate item like a glass ornament may require a slower rotational speed and a longer test duration, while a more robust product such as a toolbox can be tested at a higher rotational speed for a shorter period. The ability to customize these test profiles ensures that each package is tested under the most relevant and effective conditions.

User - Friendly Control System

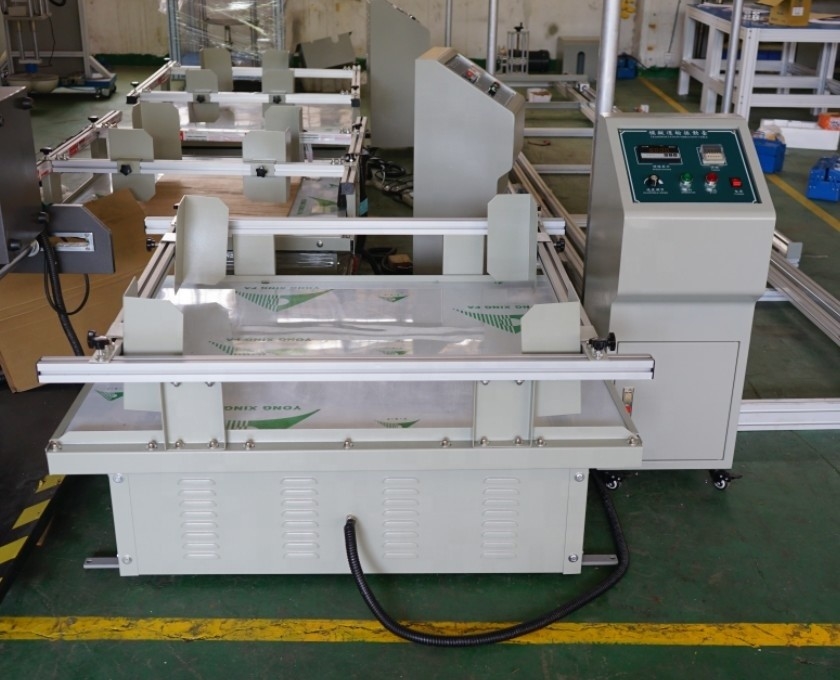

Despite its advanced capabilities, the vibration table comes with a user - friendly control system. The system is PC - based, equipped with intuitive software. Operators can easily input test parameters, start and stop the test, and monitor the progress in real - time. The software provides clear visual displays of key data such as rotational speed, test time remaining, and any relevant diagnostic information. It also has comprehensive data - logging and analysis capabilities, enabling the collection and in - depth evaluation of test data for a thorough assessment of package performance.

3. Specifications

Specification	Details
Rotational Speed Range	1 - 100 rpm
Fixed Displacement	1 inch (25.4mm)
Test Platform Size	1500 x 1500 mm
Maximum Load Capacity	1000 kg
Control System	controller
Power Requirements	380V / 50Hz
Dimensions (L x W x H)	2500 x 2000 x 2500 mm
Weight	3000 kg

4. Applications in Package Testing

Consumer Goods Packaging

Consumer goods companies rely on our vibration table to test the packaging of their products. Whether it's electronics, glassware, or food items, the table helps in ensuring that the packaging can protect the products during transportation. For example, a smartphone in its retail box can be tested to see if the packaging materials, such as foam inserts and cardboard, can withstand the rotational vibrations experienced during shipping. This helps in reducing the number of damaged products reaching consumers, enhancing brand reputation, and increasing customer loyalty.

E - commerce Packaging

With the growth of e - commerce, proper packaging is essential for ensuring that products arrive in good condition. Our vibration table is used by e - commerce companies and their packaging suppliers to test the packaging of products sold online. A fragile item sold through an online marketplace can be tested to determine if the bubble wrap and shipping box used provide sufficient protection against rotational vibrations during delivery. This helps in optimizing packaging designs, reducing shipping costs associated with damaged products, and improving the overall customer experience.

Industrial Product Packaging

Industrial products, such as machinery parts, automotive components, and chemicals, often require robust packaging. Our vibration table is used to test the durability of these packages under rotational vibrations. For instance, a large industrial machine part in a wooden crate can be tested to ensure that the crate and its internal bracing can prevent the part from shifting or being damaged during transit. This helps in reducing the risk of production delays due to damaged products and improves the overall efficiency of the supply chain.

5. Conclusion

Investing in our Fixed Displacement Mechanical Rotary Vibration Table for ISTA IA - compliant testing is a strategic decision for any business involved in product packaging and shipping. With its fixed - displacement rotary vibration generation, strict ISTA IA compliance, robust construction, customizable test profiles, and user - friendly operation, it offers a comprehensive solution for ensuring the reliability of packaged products during transit. By using this equipment, businesses can improve the quality of their packaging, reduce product damage, and gain a competitive edge in the market. Contact us today to learn more about how our vibration table can be customized to meet your specific packaging testing requirements.
