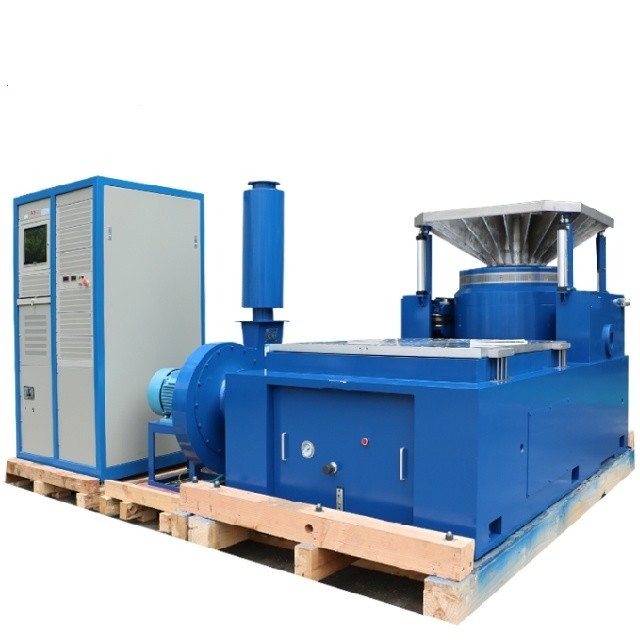

Precise Control Shock And Vibration Test Equipment For Automotive Industry

Brand Name:	PRECISION
Model Number:	VTS-10
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Customized Support:

OEM ODM

Sine Force:

10kN

Random Force:

10kN

Shock Force:

20kN

Frequency Range:

1-3000Hz

Displacement:

76mm

Velocity:

2.0

Table Size:

1200x1200mm

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Precise Control Vibration Test Equipment

Automotive Vibration Test Equipment

Vibration Test Equipment For Automotive Industry

Product Description

Shock and Vibration Test Equipment for Automotive Vibration Testing

In the automotive industry, where safety, performance, and durability are non - negotiable, the reliability of vehicle components under vibration and shock conditions is of utmost importance. Our advanced Shock and Vibration Test Equipment has been meticulously designed to meet the exacting demands of automotive vibration testing, providing automotive manufacturers and suppliers with a comprehensive solution for ensuring the quality of their products.

1. The Significance of Vibration and Shock Testing in the Automotive Realm

Automotive components endure a wide spectrum of mechanical stresses throughout their lifespan. Vibrations stemming from the engine's operation, road irregularities, and the vehicle's suspension system, along with shocks from potholes, collisions, and sudden braking, can severely impact the performance and integrity of these components. Through rigorous vibration and shock testing, manufacturers can unearth potential weaknesses in component design, material selection, or assembly. This proactive approach not only mitigates the risk of component failures, warranty claims, and safety hazards but also contributes to the development of more reliable and user - friendly vehicles.

2. Key Features of Our Test Equipment

Precise Vibration Generation

Our equipment is outfitted with cutting - edge technology that enables the generation of highly accurate vibration profiles. It can produce vibrations over a broad frequency range, typically spanning from 5 Hz to 3000 Hz. This wide - ranging frequency capability allows for the faithful replication of the diverse vibration frequencies encountered by automotive components. Whether it's the low - frequency vibrations associated with engine idling or the high - frequency vibrations experienced when driving on a rough road, the equipment can simulate these conditions with great precision. The amplitude of vibrations is precisely controllable, with a maximum acceleration of up to 100 g and a maximum displacement of ±50 mm. This level of precision ensures that components are tested under conditions that closely mirror their actual operating environment.

Realistic Shock Simulation

In addition to vibration testing, the equipment excels in shock simulation. It can generate shock pulses with precise control over pulse shape, duration, and amplitude. The shock pulse duration can be adjusted from 0.1 ms to 60 ms, and the amplitude can reach up to 1000 g. This enables the realistic replication of shock events such as those resulting from hitting a large pothole, a minor collision, or sudden mechanical impacts within the vehicle. By subjecting automotive components to these simulated shocks, manufacturers can evaluate their ability to withstand sudden, high - force impacts without suffering critical damage.

Customizable Test Profiles

We recognize that different automotive components may necessitate unique testing conditions. Our shock and vibration test equipment allows for the creation of highly customizable test profiles. Engineers can set the specific frequency, amplitude, shock pulse characteristics, and test duration according to the requirements of the component being tested. For example, a critical safety - related component like an airbag sensor may demand a short - term, high - intensity shock test, while a less sensitive component such as a door trim may require a long - term, low - amplitude vibration endurance test. The equipment can be programmed to meet the exact needs of each test, providing a tailored testing solution for a wide array of automotive components.

Robust Test Platform

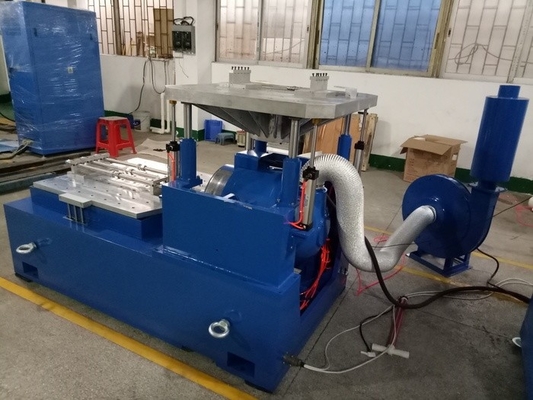

The test platform of our equipment is engineered to securely hold automotive components during testing. It features a flat, stable surface with an array of attachment points to accommodate components of various shapes and sizes. The platform is constructed from a high - strength, vibration - dampening material, which minimizes external interference and provides a clean test environment for obtaining accurate results. Moreover, the platform is designed to withstand the high forces generated during testing, ensuring stable operation even at extreme vibration and shock levels.

Intuitive Control System

Despite its advanced capabilities, our shock and vibration test equipment features an intuitive control system. The system is PC - based, equipped with user - friendly software. Operators can effortlessly input test parameters, start and stop the test, and monitor the progress in real - time. The software offers clear visual displays of key data such as vibration frequency, amplitude, shock pulse details, and test time remaining. It also has extensive data - logging and analysis capabilities, enabling the collection and in - depth evaluation of test data for a comprehensive assessment of component performance.

3. Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

4. Applications in Automotive Vibration Testing

Engine Components

Engine components such as pistons, crankshafts, and engine mounts are tested using our equipment. By subjecting these parts to simulated engine vibrations and shocks, manufacturers can ensure their durability and performance over the vehicle's lifespan. This helps in reducing engine noise, enhancing fuel efficiency, and preventing costly engine failures.

Suspension and Braking Systems

Suspension components like shock absorbers, control arms, and brake calipers are crucial for vehicle safety and ride comfort. The test equipment is used to test these components under realistic road - induced vibrations and shocks. This ensures that they can withstand the forces exerted during normal driving and emergency braking, providing reliable performance and contributing to overall vehicle stability.

Interior and Exterior Trim

Interior components such as dashboard panels, door trims, and seat belts, as well as exterior components like bumpers and mirrors, are also tested. The equipment helps in identifying any loose parts, rattling issues, or structural weaknesses that could affect the user experience or vehicle appearance. By addressing these issues through testing, manufacturers can enhance the quality and perceived value of their vehicles.

Electronic Components

Automotive electronic components, including sensors, infotainment systems, and engine control units, are highly sensitive to vibrations and shocks. Our shock and vibration test equipment is used to test these components to ensure their proper functioning in the harsh automotive environment. This helps in preventing electronic malfunctions, which could lead to safety hazards or a poor driving experience.
