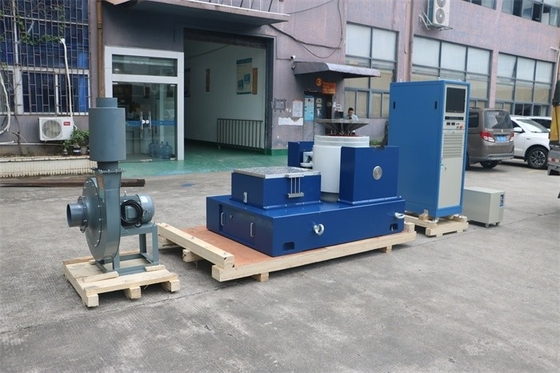

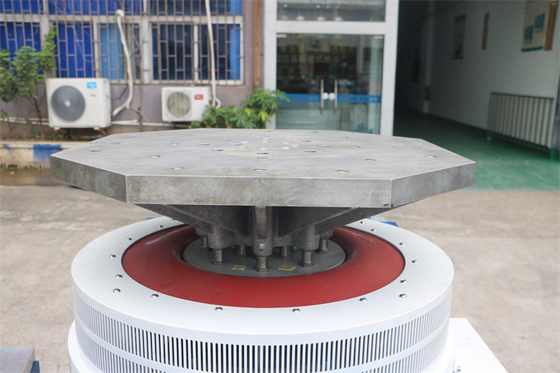

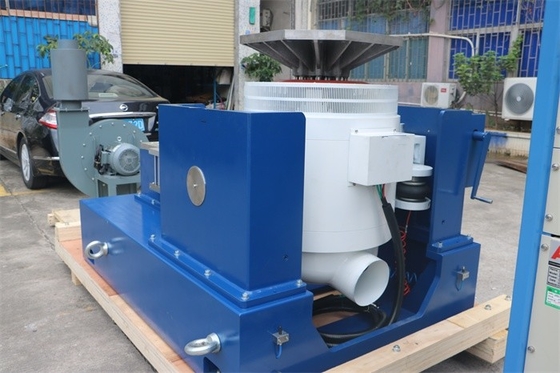

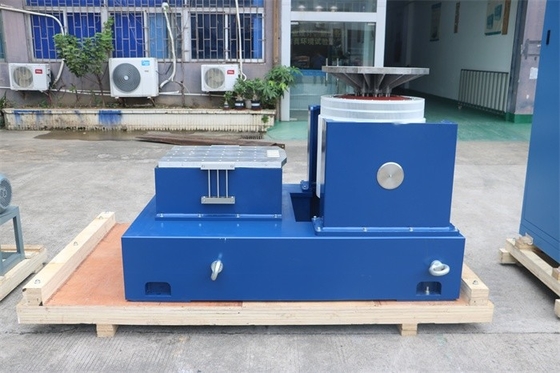

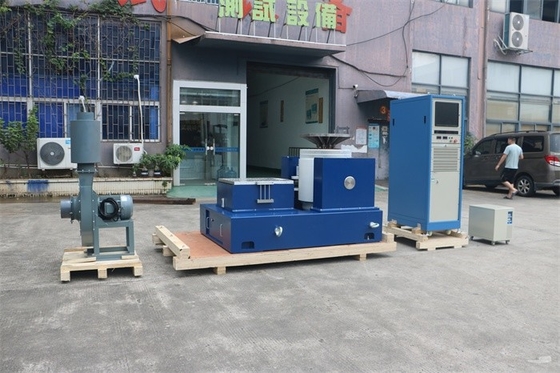

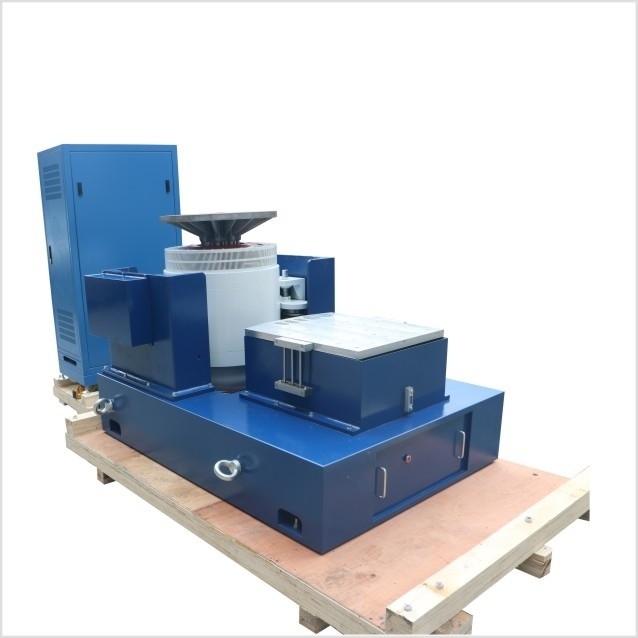

Electrodynamic Shaker System for Electronic Equipment Vibration Testing

Product Description:

Our electrodynamic shaker systems provide a reliable and versatile solution for performing comprehensive vibration testing on a wide range of electronic equipment. Engineered to simulate the various vibrational environments that electronics may encounter during operation, transportation, and handling, these systems are crucial for evaluating the durability, reliability, and overall performance of your products. Our electrodynamic shakers offer precise control and accurate replication of real-world vibration profiles, ensuring your electronic equipment meets stringent quality standards.

Key Features:

• Precise Control: Advanced digital controllers enable accurate reproduction of sine, random, and shock vibration profiles.
• Wide Frequency Range: Capable of testing electronic equipment across a broad spectrum of vibration frequencies.
• Adjustable Force Output: Offers a range of force capabilities to accommodate various sizes and weights of electronic devices.
• Robust and Reliable: Built with high-quality components for continuous operation and long-term durability in demanding testing environments.
• User-Friendly Interface: Intuitive software and controls simplify test setup, execution, and data analysis.
• Comprehensive Data Acquisition: Integrated systems allow for real-time monitoring, recording, and analysis of acceleration, displacement, and other critical parameters.
• Customizable Fixtures: Options for designing and manufacturing custom fixtures to securely mount diverse electronic equipment.
• Compliance with Industry Standards: Systems can be configured to meet various industry testing standards (e.g., IEC, ASTM, MIL-STD).

Applications:

• Reliability testing of consumer electronics
• Durability testing of industrial control systems
• Transportation simulation for electronic packaging
• Vibration analysis of automotive electronics
• Qualification testing of aerospace electronic components
• Seismic simulation for communication equipment
• Quality assurance testing of medical electronic devices

Benefits:

• Identifies potential weaknesses and failure points in electronic equipment.
• Ensures the reliability and durability of your products in real-world operating conditions.
• Validates product design and manufacturing processes.
• Complies with industry and regulatory testing standards.
• Reduces the risk of field failures and warranty claims.
• Accelerates product development and time-to-market.
• Provides accurate and repeatable testing results.

Technical Specifications (Example - Customizable):

• Rated Sine/ Random/ Shock Force	2,200 kgf/2.000 kgf/4,400 kgf	Armature Mass	25 kg
  Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M10
  Max. /Continuous Displacement p-p	76 mm/63 mm	Load Attachment: Points (Standard)	21
  Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
  Max. Sine/ Random Acceleration	88/60g	Max. Vertical Load Support	400 kg
  Armature Diameter	340 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
  Fundamental Resonance Frequency	2,700 Hz (nom.) ± 5%	Dimension LxWxH	1,160 mmx880mmx 1.050mm
  Allowable Armature Overturning Moment	500 Nm	Weight (Uncrated)	1700 kg



Why Choose Us:

We are a leading manufacturer of high-performance electrodynamic shaker systems for vibration testing of electronic equipment. Our experienced engineering team is dedicated to providing innovative, reliable, and customizable solutions tailored to your specific testing requirements. We offer comprehensive support, from system design and manufacturing to installation and training.
