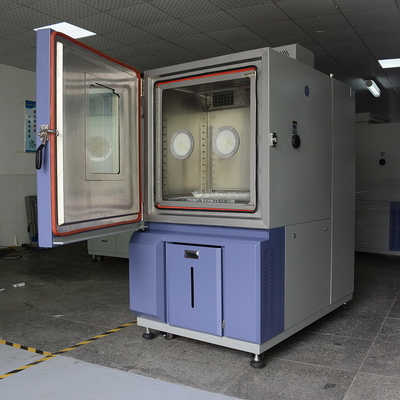

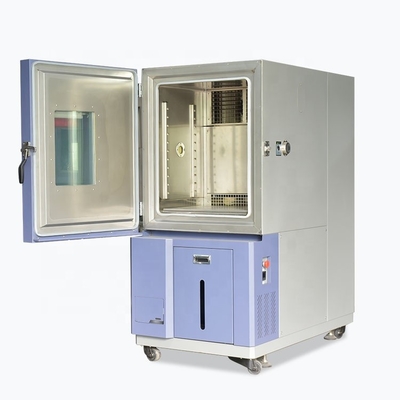

High Capacity Temperature Humidity Test Chamber For Automotive New Energy Batteries

Brand Name:	PRECISION
Model Number:	THC-270
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

High Capacity Temperature Humidity Test Chamber

Thermal Humidity Chamber for Automotive

Humidity Test Chamber for Energy Batteries

Product Description

Remote - Controlled Automotive Temperature Humidity Test Chamber for New Energy Batteries

1. Introduction

New energy batteries are the heart of electric and hybrid vehicles, playing a pivotal role in determining their performance, range, and safety. These batteries are exposed to a wide range of temperature and humidity conditions during their lifespan, which can significantly impact their capacity, charging efficiency, and overall durability. Our remote - controlled automotive temperature humidity test chamber for new energy batteries is a cutting - edge solution designed to meet the stringent testing requirements of the automotive new energy industry. This advanced chamber enables manufacturers, researchers, and quality control teams to subject new energy batteries to precisely controlled environmental conditions, simulate real - world scenarios, and ensure the reliability and performance of these critical components.

2. Key Features

2.1 Remote - Controlled Operation

The most notable feature of this test chamber is its remote - controlled operation. Through a dedicated mobile application or a web - based interface, users can remotely control all aspects of the test chamber, including temperature, humidity, test duration, and data logging intervals. This offers unparalleled convenience, especially when the test chamber is located in a different physical location or when continuous monitoring and adjustment are required. Multiple users can access and manage the test chamber simultaneously, facilitating seamless collaboration between different departments involved in the battery testing process.

2.2 Precise Temperature and Humidity Control

Equipped with state - of - the - art temperature and humidity control systems, the test chamber provides exceptional precision. The temperature can be accurately adjusted within a wide range, typically from - 70°C to 150°C, with a precision of ±0.1°C. Humidity levels can be controlled from 10% to 95% relative humidity (RH), with a precision of ±2% RH. This high - level precision ensures that new energy batteries are tested under exacting conditions, closely mimicking the diverse environmental scenarios they may encounter in different geographical locations and usage patterns.

2.3 Real - World Scenario Simulation

To accurately evaluate the performance of new energy batteries under real - world conditions, the test chamber offers a wide variety of real - world scenario simulation options. It can replicate the temperature and humidity changes a battery might experience during a long - distance journey, extreme weather conditions, or different seasons. Custom - programmed test sequences can be created to mimic specific usage patterns, such as rapid charging in high - temperature environments or long - term storage in humid conditions. This flexibility allows for comprehensive testing and a more accurate understanding of how new energy batteries perform in different situations.

2.4 Advanced Monitoring and Data Logging

A sophisticated monitoring and data logging system is integrated into the test chamber. Multiple sensors are strategically placed around the batteries and within the chamber to continuously monitor temperature, humidity, battery voltage, current, capacity, and other relevant parameters. The data is logged at high frequencies and can be accessed and analyzed through the remote - control interface. This detailed data provides valuable insights into the battery's performance during the test, enabling manufacturers to identify potential issues, optimize battery design, and improve battery management systems.

2.5 Battery - Specific Design

The test chamber is specifically designed to accommodate different types and sizes of new energy batteries, including lithium - ion, lithium - polymer, and solid - state batteries. It features a spacious interior with adjustable fixtures and supports to ensure proper positioning of the batteries during the test. The chamber is equipped with the necessary electrical connections and safety features to handle high - voltage and high - capacity batteries. Special provisions are made to monitor and control the charging and discharging processes of the batteries, allowing for comprehensive testing of their performance under different operating conditions.

2.6 Durable and Reliable Construction

Built to withstand the rigors of continuous use in an automotive testing environment, the test chamber features a durable and robust construction. The exterior is made of high - quality, corrosion - resistant steel that provides excellent protection against physical damage and environmental factors. The interior is lined with materials that are resistant to high temperatures, moisture, and chemicals, ensuring a long - lasting and stable testing environment. The components of the temperature and humidity control systems, as well as the monitoring and data logging systems, are sourced from reliable suppliers and are rigorously tested to ensure long - term performance and reliability.

2.7 Safety Features

Safety is a top priority in the design of the test chamber. It is equipped with a comprehensive set of safety features, including over - temperature and over - humidity protection, over - voltage and over - current protection, fire suppression systems, and emergency stop buttons. In case of any abnormal conditions, such as a sudden increase in temperature, humidity, voltage, or current, the safety systems will automatically activate to prevent damage to the batteries, the testing equipment, and the personnel. These safety features ensure a secure testing environment for all users.

3. Specifications

Model	THC-225	THC-408	THC-800	THC-1000
Inside dimension(W x D x H) mm	50 x 75 x 60	60 x 85 x 80	100 x 100 x 80	100 x 100 x 100
Outside dimension(W x D x H) mm	75 x 165 x 170	85 x 175 x 190	125 x 190 x 190	125 x 190 x 210
Internal material	#304 Stainless Steel
External material	Powder coated #304 Stainless Steel
Temperature range	+ 150℃~ - 70 ℃
Humidity range	5% ~ 98% R. H
Temperature resolution ℃	0.01
Humidity resolution % R. H.	0.1
Temperature stability ℃	±0.3
Humidity stability % R. H.	±2
High temperature ℃	100	100	100	100
Heating time (min)	20	30	30	30
Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
Air circulation system	Mechanical convection system
Cooling system	Imported compressor, fin evaporator, gas condenser
Heating system	Sus304 Stainless steel High-speed heater
Humidification system	Steam Generator
Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
Controller	Touch panel
Electrical power requirements	Please contact us for requirements of specific models
Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

4. Benefits for the Automotive New Energy Industry

4.1 Improved Battery Performance

By subjecting new energy batteries to precise and controlled temperature and humidity conditions, manufacturers can identify and address potential performance issues early in the design and development process. This allows for the optimization of battery chemistry, cell design, and battery management systems to ensure maximum performance under different environmental conditions. The ability to simulate real - world scenarios helps in improving battery capacity, charging efficiency, and discharge performance, resulting in longer - range and more reliable electric and hybrid vehicles.

4.2 Enhanced Battery Durability

Testing new energy batteries in a controlled environment helps manufacturers evaluate the durability of different battery components and materials. The chamber's ability to replicate extreme temperature and humidity conditions allows for the identification of parts that may be prone to degradation, corrosion, or failure over time. By addressing these issues before mass production, manufacturers can improve the long - term durability of their batteries, reducing the need for frequent replacements and maintenance. This not only benefits the customers but also enhances the reputation of the automotive brand.

4.3 Regulatory Compliance

The automotive new energy industry is subject to numerous international and national regulations regarding battery safety, performance, and environmental impact. Our test chamber enables manufacturers to conduct the necessary tests to ensure compliance with these regulations. By providing accurate and reliable test data, manufacturers can obtain the required certifications and approvals, facilitating the sale of their vehicles in different markets around the world.

4.4 Cost Savings

Early detection of potential problems through comprehensive testing in the test chamber can save manufacturers significant costs. By identifying and fixing issues before mass production, manufacturers can avoid costly product recalls, warranty claims, and customer dissatisfaction. The remote - controlled operation of the test chamber also allows for more efficient testing, reducing the need for on - site personnel and minimizing testing time. Additionally, the ability to optimize battery design based on test results can lead to cost savings in terms of materials, manufacturing processes, and energy consumption.

4.5 Research and Development

For research and development teams in the automotive new energy industry, the test chamber provides a valuable tool for exploring new technologies and materials. The ability to precisely control the temperature and humidity allows for in - depth studies of how these factors affect the performance of new battery chemistries, such as solid - state batteries and lithium - sulfur batteries. This can lead to the development of innovative solutions and the improvement of existing technologies, giving automotive manufacturers a competitive edge in the global market.

5. Applications

5.1 New Battery Development

During the development of new energy batteries, manufacturers use the test chamber to evaluate the performance of prototypes under various temperature and humidity conditions. This includes testing battery capacity, charging and discharging efficiency, cycle life, and safety features. The test results are used to make design improvements and ensure that the final product meets the desired performance and quality standards.

5.2 Quality Control

In the manufacturing process, the test chamber is used for quality control purposes. A sample of new energy batteries from each production batch is tested in the chamber to ensure that they meet the specified quality standards. The precise control of temperature and humidity allows for accurate evaluation of the batteries' performance, and any issues can be identified and addressed before the products are shipped to the market.

5.3 Battery Aging Testing

To evaluate the long - term performance and durability of new energy batteries, manufacturers conduct battery aging testing in the test chamber. This involves subjecting the batteries to repeated cycles of charging and discharging under different temperature and humidity conditions. The data collected during these tests helps in predicting the battery's lifespan and performance degradation over time.

5.4 Safety Testing

The test chamber is used to conduct safety testing of new energy batteries. This includes testing the batteries' response to extreme temperature and humidity conditions, over - voltage and over - current situations, and short - circuit scenarios. The safety features of the test chamber ensure that the batteries are tested in a controlled and secure environment, minimizing the risk of accidents and ensuring the safety of the end - users.

6. Conclusion

Our remote - controlled automotive temperature humidity test chamber for new energy batteries is an essential tool for the automotive new energy industry. With its advanced features, precise control, real - world scenario simulation, advanced monitoring and data logging, battery - specific design, durable construction, and safety features, it provides a comprehensive and reliable platform for testing, evaluating, and improving new energy battery performance. Whether it's for new battery development, quality control, battery aging testing, or safety testing, this test chamber is a valuable asset for automotive manufacturers, researchers, and quality control teams. Contact us today to learn more about how our product can meet your new energy battery testing needs.
