Custom Thermal Shock Chambers Meets Military Standard 883J, 1010.8, ver. A, B, C, D, F Test Standards
In the highly specialized and critical domain of military and defense electronics, the Custom Thermal Shock Chambers, meticulously engineered to meet Military Standard 883J, 1010.8, ver. A, B, C, D, F test standards, emerge as an essential linchpin in ensuring the unwavering reliability and durability of military-grade components.
1. Product Name and Purpose
This bespoke thermal shock chamber is dedicated to subjecting a wide spectrum of military electronic components, such as microchips, transistors, capacitors, and integrated circuits, to the exacting thermal shock testing protocol mandated by Military Standard 883J, 1010.8, ver. A, B, C, D, F. It serves as a vital tool for semiconductor manufacturers, defense contractors, and military research institutions. The overarching objective is to evaluate the ability of these components to withstand rapid and extreme temperature transitions. By faithfully replicating the thermal shock conditions that military electronics may encounter during their operational lifespan, from the harsh thermal gradients in high-altitude flight to the temperature fluctuations in battlefield environments, manufacturers can identify and rectify potential weaknesses, optimize semiconductor fabrication processes, and enhance the overall performance and survivability of military electronic systems.
2. Product Features

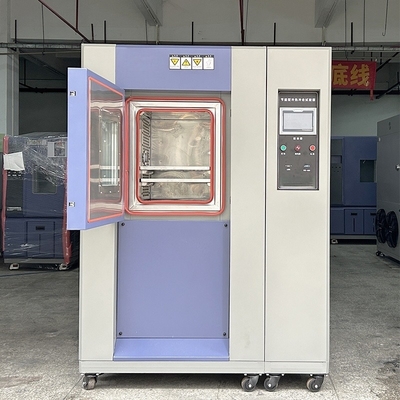

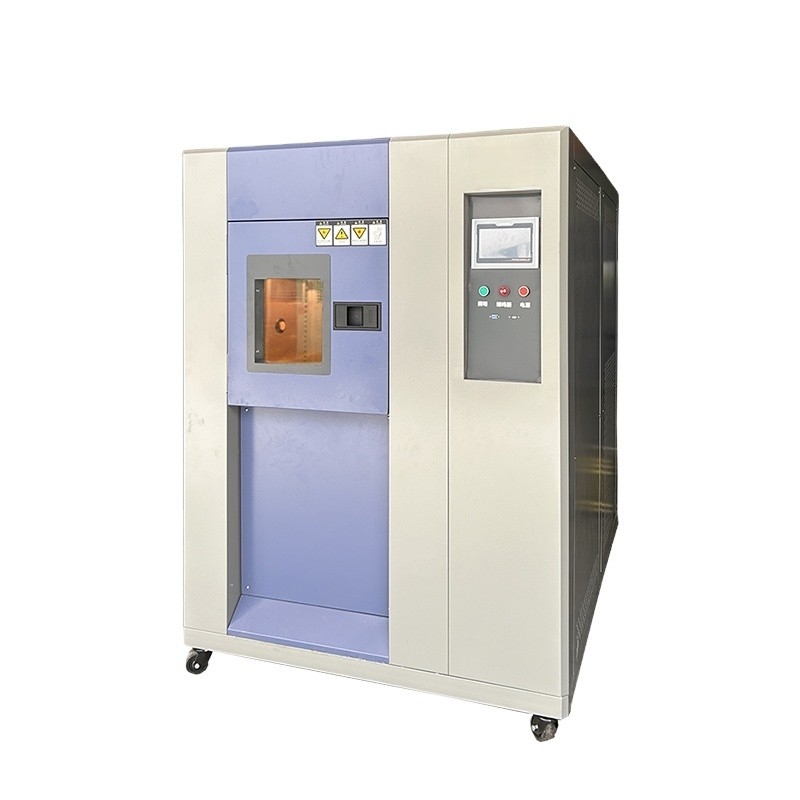

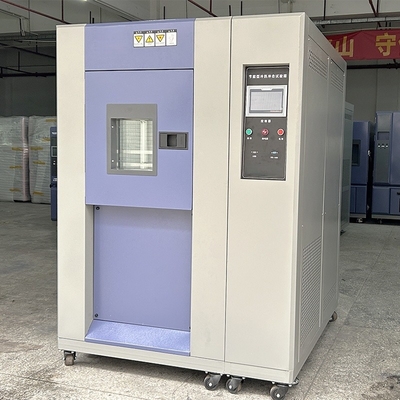

Robust and Precision-Engineered Chamber Construction
The chamber is constructed with heavy-duty, heat-resistant materials that can endure the intense thermal stresses. The walls are fabricated from high-strength alloy steel, combined with advanced thermal insulation layers to minimize heat transfer between the hot and cold zones. The door is engineered with a reliable sealing mechanism and a viewing window, allowing operators to monitor the testing process without compromising the chamber's integrity. The interior is designed with precision-engineered racks and fixtures, enabling the accommodation of a wide variety of microelectronic components and ensuring uniform exposure to the thermal shock conditions.
Ultra-Precise Temperature Control and Cycling System
Temperature Range and Cycling Capability: Capable of achieving an extensive temperature range, typically from -80°C to +150°C. The system can execute rapid temperature cycling between the hot and cold zones, with a transition time as short as a few seconds. This is crucial for mimicking the abrupt temperature changes that military electronic components may experience. The temperature control is accurate to within ±0.1°C, providing the highest level of precision required for reliable and repeatable test results.
Programmable Temperature Profiles: The chamber's control system allows for the creation and execution of highly complex, custom temperature profiles. Operators can define specific temperature levels, dwell times in each zone, and the sequence and number of thermal shock cycles to replicate a diverse range of real-world military operational scenarios. This flexibility enables comprehensive testing of components under different mission-critical conditions.
Intuitive Control Panel and Advanced Data Acquisition Interface
The control panel is designed for ease of use by military and semiconductor engineers. It offers a user-friendly interface that allows effortless setting and adjustment of all test parameters, including temperature, cycling times, and component identification. The panel also provides real-time displays of the current temperature in both zones, the status of the testing process, and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes detailed temperature histories, cycle counts, and any observable changes in the electrical, physical, or performance characteristics of the tested components. The data can be stored in a secure, encrypted format in the chamber's built-in memory or exported to external military-approved storage devices for in-depth analysis and reporting. The system can also generate detailed test reports in various standardized military formats.
Enhanced Safety and Security Features
To ensure the safety of operators and the protection of sensitive military test samples and the chamber itself, a suite of advanced safety and security features is incorporated. These include multiple layers of over-temperature and over-current protection, emergency stop buttons with redundant circuitry, and alarms for any abnormal temperature fluctuations, equipment malfunctions, or security breaches. The chamber is also equipped with access control mechanisms, such as biometric authentication or smart card readers, to prevent unauthorized access and safeguard classified testing activities. Additionally, it has a self-contained fire suppression system and proper ventilation and exhaust mechanisms to handle any potentially hazardous gases or vapors that may be generated during testing.
3. Specific Parameters
Temperature Range and Accuracy
The -80°C to +150°C temperature range with ±0.1°C accuracy offers an extremely comprehensive and precise testing envelope. Military electronic components often have stringent temperature tolerance requirements due to their exposure to diverse and harsh environments. For example, a high-performance microprocessor used in a military guidance system must maintain its computational accuracy and speed across a wide temperature spectrum. The accurate temperature control ensures that the test conditions precisely match the demands of Military Standard 883J, 1010.8, ver. A, B, C, D, F, allowing for a meticulous assessment of component performance and reliability.
Thermal Shock Cycle Parameters
The chamber can be programmed to perform a highly customizable number of thermal shock cycles, ranging from a few dozen to several thousand, depending on the specific military component's requirements and expected service life. The dwell time in each temperature zone can be adjusted from milliseconds to hours, enabling the simulation of a vast array of mission profiles. For instance, a sensor used in a surveillance drone may need to withstand short, intense thermal shock cycles during rapid altitude changes, while a communication chip in a military base station might experience longer, more gradual temperature changes over an extended period.
Testing Volume and Payload Capacity
The chamber offers a flexible testing volume, usually ranging from 1 m³ to 5 m³, to accommodate a significant number of microelectronic components. The payload capacity is designed to handle small but highly valuable and sensitive items, with a maximum capacity of up to several kilograms. This allows for the testing of individual components or small batches of components in a controlled and precise environment.
Data Sampling Frequency and Resolution
The data acquisition system samples data at a high frequency of up to 1200 Hz. The temperature data has a resolution of 0.05°C, providing an unprecedented level of detail in monitoring temperature changes. This high-resolution and frequent sampling enable the detection of even the most minute temperature fluctuations and trends, allowing for a comprehensive understanding of the component's behavior during thermal shock testing and facilitating the identification of potential failure modes.
4. Product Functions
Accurate Simulation of Military Standard 883J, 1010.8, ver. A, B, C, D, F Test Conditions
The chamber replicates the precise thermal shock conditions stipulated by the military standard with unerring accuracy. This is of utmost importance as military electronic components must adhere to these standards to ensure their reliability and performance in the most challenging and life-threatening situations. By subjecting components to these exact simulations, manufacturers can have absolute confidence that their products will meet the stringent requirements of military operations.
Product Design Optimization and Quality Control
Through a series of comprehensive tests on different military component prototypes, the data obtained from the chamber serves as a valuable resource for optimizing product designs. Engineers can analyze the performance of various semiconductor materials, fabrication processes, and component architectures under the extreme stress of thermal shock. The chamber also functions as a crucial tool for quality control, ensuring that each production batch of military components meets the exacting standards. For example, if a particular solder joint in an integrated circuit shows signs of cracking after a specific number of thermal shock cycles, the design or manufacturing process can be adjusted to enhance its durability.
Research and Development Support for Military Electronics
In the highly innovative field of military electronics research and development, the Custom Thermal Shock Chambers offer invaluable insights. Researchers can utilize them to study the fundamental properties of emerging semiconductor materials and their interactions with thermal shock. This enables the exploration of revolutionary designs and technologies that result in more resilient and high-performance military electronic components. For instance, materials scientists can test the performance of novel nano-semiconductor materials or advanced packaging techniques under Military Standard 883J, 1010.8, ver. A, B, C, D, F test conditions, using the chamber to evaluate their potential for next-generation military applications.
Compliance Testing and Certification for Military Components
The equipment is essential for conducting compliance testing to meet Military Standard 883J, 1010.8, ver. A, B, C, D, F. The military has rigid regulations regarding the performance and reliability of its electronic components, and the test results obtained from the chamber are used to certify that components meet these standards. This is crucial for the acceptance and integration of military components into larger systems and for ensuring the safety and success of military missions.
5. Production and Quality Assurance
Stringent Manufacturing Process
The Custom Thermal Shock Chambers for Military Standard 883J, 1010.8, ver. A, B, C, D, F are manufactured under the most rigorous quality control procedures. Each component, from the chamber structure and insulation materials to the temperature control unit and safety features, is sourced from highly vetted and reliable suppliers. The assembly process is carried out by a team of highly trained and security-cleared technicians in a controlled and secure environment. The chamber is calibrated and verified at multiple stages during production using state-of-the-art calibration equipment and techniques to ensure its accuracy and performance.
Quality Certification and Validation
Our chamber has obtained relevant military-grade quality certifications and has been validated by independent military testing laboratories. It has been proven to provide accurate and reliable test results, conforming to Military Standard 883J, 1010.8, ver. A, B, C, D, F and other related military and national defense testing standards. We also continuously update and improve our product based on the latest technological advancements and feedback from military customers to ensure its long-term performance and compliance.
6. Application Areas and Success Stories
Microprocessor Testing for Military Computing Systems
A semiconductor manufacturer used the chamber to test a new generation of microprocessors for military-grade computing systems. The microprocessors were subjected to a series of intense thermal shock cycles, simulating the temperature changes that occur during high-performance computing tasks in various environmental conditions. The testing revealed a potential issue with the thermal management of a specific cache memory module. By redesigning the heat dissipation pathway and using a more thermally conductive material, the manufacturer was able to enhance the microprocessor's reliability and computational stability, ensuring its seamless integration into military computing platforms.
Transistor Durability Evaluation in Military Communication Equipment
A defense contractor evaluated the performance of transistors used in military communication equipment in the chamber. The transistors were exposed to extreme temperature transitions, replicating the conditions from cold storage to active operation in different climates. The results showed that a particular transistor type had a tendency to experience a shift in electrical characteristics under thermal shock. By modifying the doping profile and improving the transistor's encapsulation, the contractor was able to improve the communication equipment's signal integrity and reliability, reducing the risk of communication failures in the field.
Capacitor Performance Testing in Military Power Systems
A military research institution tested capacitors in a power supply system for a missile launcher. The capacitors were subjected to a comprehensive set of thermal shock cycles, simulating the temperature fluctuations that occur during launch and standby operations. The testing identified a weakness in the capacitor's dielectric material, which could lead to energy storage and release issues. By developing a new dielectric formulation and optimizing the capacitor's internal structure, the institution was able to increase the power system's efficiency and reliability, ensuring the proper functioning of the missile launcher.
7. Service and Support
Pre-Sales Technical Consultation
Our team of military and semiconductor testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific military testing needs. We offer classified demonstrations and training, tailored to the military's unique requirements and security protocols, to familiarize their engineers and technicians with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the military components to be tested.
After-Sales Service and Maintenance
We offer comprehensive after-sales service, including on-site installation and commissioning by security-cleared technicians. Our technicians are available for regular maintenance, calibration, and emergency repairs, with rapid response times to minimize downtime. We provide military-grade spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for Military Standard 883J, 1010.8, ver. A, B, C, D, F thermal shock testing of military components.
Training and Technical Support
We conduct classified training programs for new users to ensure they can effectively operate the Custom Thermal Shock Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with Military Standard 883J, 1010.8, ver. A, B, C, D, F and other military testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
The Custom Thermal Shock Chambers that meet Military Standard 883J, 1010.8, ver. A, B, C, D, F test standards are an indispensable asset for any organization involved in military and defense electronics testing and development. If you are looking to enhance your testing capabilities, ensure compliance with military standards, or drive innovation in military electronics technology, this is the ideal solution. Contact us today to learn more and get a customized quotation. Let us help you unlock the full potential of your military component testing efforts.
