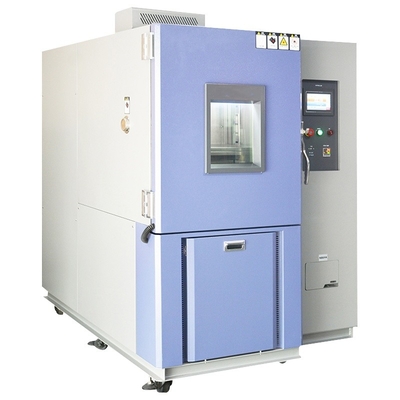

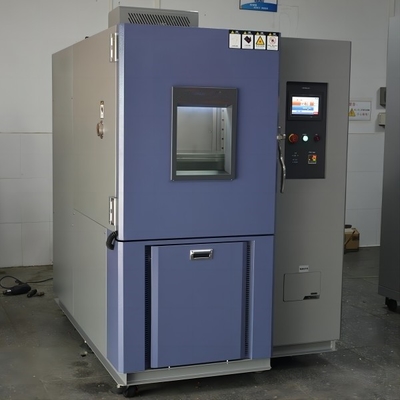

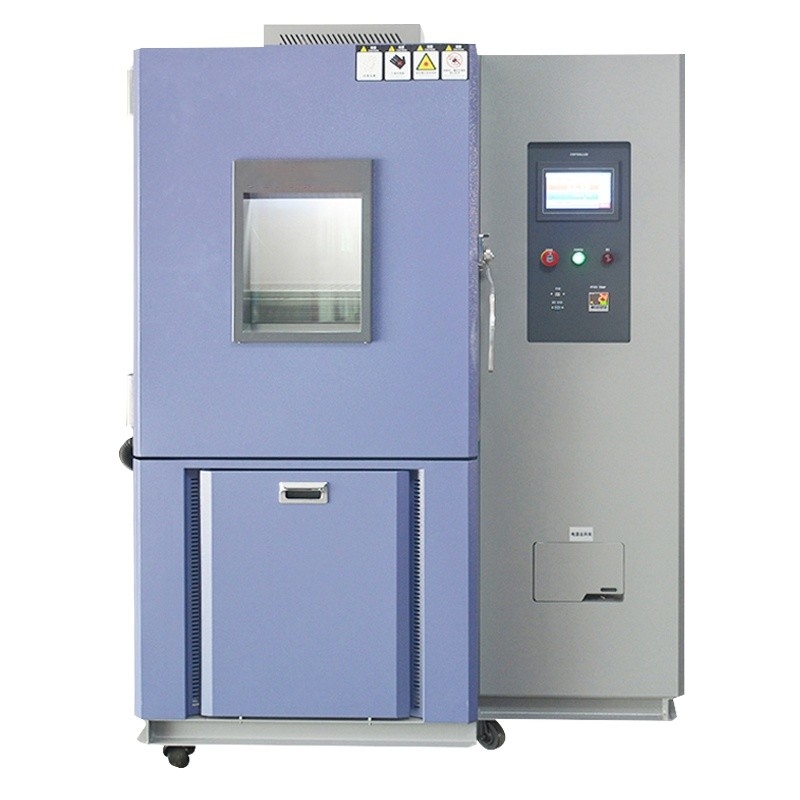

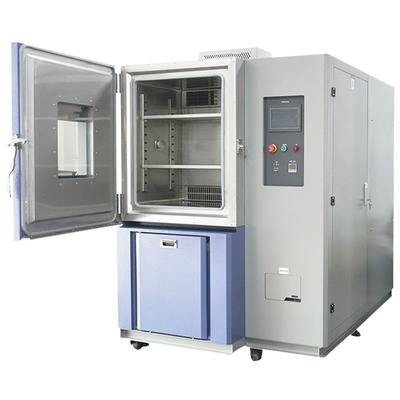

Rapid Rate Environmental Test Chambers 304 Stainless Steel In Automotive Industry

1. Product Name and Purpose

2. Product Features

Ultra - Fast Temperature Change Capability

• High - Speed Temperature Ramping
  • These custom test chambers are capable of achieving extremely rapid temperature change rates, typically ranging from 15°C/min to 100°C/min. This high - speed ramping allows for the accurate simulation of real - world situations where car engine, transmission, and suspension components experience sudden temperature fluctuations. For example, when a cold engine is started and quickly accelerates, the engine components heat up rapidly. The ability to precisely control the rate of temperature change ensures reliable testing of the components' responses.
• Wide Temperature Range
  • The temperature range of these custom test chambers is typically broad, spanning from - 70°C to + 150°C. This wide range covers the extreme temperature conditions that these automotive components may encounter. In cold climates, the engine and transmission may need to operate at sub - zero temperatures, while during intense driving or in hot environments, the components can reach relatively high temperatures. The test chamber's ability to reach these extreme temperatures allows for comprehensive testing of the components' performance across a wide spectrum of conditions.

Precise Temperature Control

• Accurate Temperature Regulation
  • Despite the rapid temperature changes, the custom test chambers maintain a high level of temperature accuracy. The temperature control accuracy is typically within ±0.5°C. This precision is crucial as even small temperature variations can have a significant impact on the performance and durability of automotive components. For example, a slight change in temperature can affect the lubrication properties of engine oil, the efficiency of transmission gears, and the flexibility of suspension components. By ensuring accurate temperature regulation, the test results are reliable and consistent, enabling meaningful comparisons and analysis of the components' behavior under different temperature change scenarios.
• Uniform Temperature Distribution
  • The interior of the custom test chamber is designed to provide a uniform temperature distribution throughout the test volume. Advanced air circulation systems, heat transfer mechanisms, and multiple temperature sensors work in harmony to ensure that the temperature variation within the chamber is typically within ±1°C. This uniformity is essential for accurate testing, as it ensures that all parts of the engine, transmission, and suspension components are exposed to the same temperature conditions, eliminating any biases in the test results.

Customizable Test Profiles

• Programmable Temperature Sequences
  • Operators have the flexibility to create highly customizable test profiles that simulate complex and realistic temperature transition scenarios. These profiles can include multiple cycles of rapid temperature changes, sudden jumps in temperature, or gradual ramping, depending on the specific requirements of the component being tested. For example, a test profile can be designed to mimic the temperature changes that an engine experiences during a cold start, followed by a period of high - speed driving and then a sudden stop.
  • The ability to program these custom test profiles allows for a more comprehensive evaluation of the components' performance under real - world conditions. It enables manufacturers to identify potential issues that may arise during actual use and develop strategies to address them, such as improving the thermal management system of the engine or optimizing the design of the transmission.
• Component - Specific Customization
  • These test chambers can be customized to accommodate the specific dimensions and requirements of car engine, transmission, and suspension components. Specialized fixtures and holders can be designed to securely hold the components in place during testing, ensuring proper alignment and exposure to the temperature changes. Additionally, the test chamber can be equipped with custom - designed monitoring systems to collect detailed data on the components' performance, such as engine power output, transmission gear shifting accuracy, and suspension response, during the temperature change tests.

Safety Features

• Over - Temperature Protection
  • The custom test chambers are equipped with advanced over - temperature protection systems. In the event of a malfunction or an unexpected increase in temperature, the system automatically shuts down the heating or cooling elements to prevent damage to the components and the test chamber itself. This feature ensures the safety of the testing process and protects valuable automotive components from being destroyed due to overheating.
• Mechanical and Electrical Safety Measures
  • Given the mechanical and electrical nature of car engine, transmission, and suspension components, the test chambers are designed with strict safety measures. This includes proper grounding for electrical components, over - load protection for mechanical systems, and emergency stop buttons. These safety features protect the operators from potential hazards and ensure the reliable operation of the test chamber and the components being tested.

User - Friendly Operation and Monitoring

• Intuitive Control Interface
  • The custom test chamber is equipped with an intuitive control interface that simplifies the operation process. The interface allows operators to easily set and adjust test parameters, such as temperature change rates, target temperatures, test duration, and test profiles. It also provides a clear display of the current test status, including the actual temperature, elapsed test time, and any error messages. The user - friendly design ensures that even operators with limited technical expertise can efficiently conduct tests on car engine, transmission, and suspension components.
• Remote Monitoring and Control
  • Many models of the custom test chambers offer remote monitoring and control capabilities. This feature is highly beneficial for automotive manufacturers, engineers, and quality control teams, as it allows them to monitor the test progress and adjust the test parameters from a remote location, such as an office or a control center. This is especially useful for long - term tests or when multiple tests are being conducted simultaneously. Remote monitoring and control enable timely intervention in case of any issues, ensuring the smooth and efficient operation of the testing process.

3. Specific Parameters

• Model	FC-150	FC-270	FC-456	FC-1000
  Inside dimension(W x D x H) mm	50 x 75 x 60	60 x 90 x 50	80 x 95 x 60	100 x 100 x 100
  Outside dimension(W x D x H) mm	105 x 181 x 140	115 x 200 x 165	135 x 210 x 170	154x 202 x 176
  Internal material	#304 Stainless Steel
  External material	Powder coated #304 Stainless Steel
  Temperature range	+ 150℃~ - 70 ℃
  Temperature resolution ℃	0.01
  Temperature stability ℃	±0.3
  High temperature ℃	100	100	100	100
  Heating time (min)	20	30	30	30
  Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
  Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
  Air circulation system	Mechanical convection system
  Cooling system	Imported compressor, fin evaporator, gas condenser
  Heating system	Sus304 Stainless steel High-speed heater
  Controller	Touch panel
  Electrical power requirements	3 phase 380V ±10% 50/60Hz
  Safety device	Glass window, test hole 50 mm, action indicator lamp, box lighting, interlayer rack* 2 pcs, circuit system load protection, compressor load protection, control system load protection, heating system load protection, overtemperature load protection, fault indicator lamp

4. Product Functions

• Performance Evaluation
  • By subjecting car engine, transmission, and suspension components to rapid temperature transitions, the custom test chambers help evaluate their performance under dynamic conditions. This includes assessing parameters such as engine power output, torque delivery, transmission gear shifting smoothness, and suspension response to different road conditions. For example, rapid temperature changes can affect the combustion efficiency of the engine, the friction between transmission gears, and the damping characteristics of the suspension. By measuring these parameters, manufacturers can understand how the components' performance is impacted and make improvements to enhance their overall performance.
• Durability Testing
  • The custom test chambers can be used to test the durability of these automotive components under rapid temperature changes. Repeated exposure to extreme temperature variations can cause stress on the components' internal structures, such as engine cylinders, transmission shafts, and suspension springs. By subjecting the components to multiple cycles of temperature changes, manufacturers can identify potential weak points and improve the components' durability. This helps to ensure that these components can withstand the rigors of long - term use and various driving conditions.
• Thermal Management Analysis
  • Engine, transmission, and suspension systems generate heat during operation, and effective thermal management is crucial for their performance and lifespan. The custom test chambers allow manufacturers to analyze the thermal behavior of these components under different temperature change scenarios. By monitoring the temperature distribution within the components and the heat dissipation characteristics, they can optimize the thermal management system, such as improving the cooling system of the engine, enhancing the lubrication of the transmission, and ensuring proper heat dissipation in the suspension components.
• Quality Control
  • In the manufacturing process, the custom test chambers are an essential tool for quality control. By testing a sample of components from each production batch, manufacturers can ensure that the components meet the required quality standards. This helps to prevent the release of defective products into the market, protecting the brand reputation and ensuring customer satisfaction.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The manufacturing of custom fast change rate test chambers follows strict quality control procedures. Each component, from the chamber's body and insulation materials to the temperature sensors, control electronics, and air circulation systems, is sourced from reliable suppliers and undergoes thorough inspection and testing.
  • The assembly process is carried out by highly skilled technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance. This includes testing the temperature control system, air circulation performance, and the functionality of all safety features.
• Quality Certification and Validation
  • Our custom fast change rate test chambers have obtained relevant quality certifications, such as ISO standards for environmental testing equipment and specific automotive industry standards. They have also been validated by independent testing laboratories to ensure that they meet industry standards and provide accurate and reliable test results.
  • We continuously update and improve our product based on the latest technological advancements and customer feedback. This ensures that our custom fast change rate test chambers remain at the forefront of automotive component testing technology.

6. Application Areas and Success Stories

• Engine Manufacturing
  • An automotive engine manufacturer was developing a new high - performance engine. The engine was tested in the custom fast change rate test chamber to evaluate its performance under rapid temperature changes. The testing revealed that the engine's fuel injection system was not functioning properly at low temperatures, leading to poor engine startup and performance. Based on this result, the manufacturer optimized the fuel injection system's design and calibration. The new engine passed all subsequent tests and was able to start smoothly and perform efficiently even in cold weather conditions.
• Transmission Development
  • A transmission manufacturer was working on a new automatic transmission. The transmission was tested in the custom test chamber to ensure its reliability and performance under rapid temperature changes. The testing showed that the transmission's shift solenoids were prone to failure at high temperatures, resulting in rough gear shifts. The manufacturer then improved the cooling system of the transmission and upgraded the shift solenoids. The updated transmission passed all the tests and provided smooth and reliable gear shifting even under extreme temperature conditions.
• Suspension System Testing
  • An automotive company was developing a new suspension system for a luxury car. The suspension components were tested in the custom fast change rate test chamber to evaluate their performance under rapid temperature changes and different road conditions. The testing identified issues with the suspension's shock absorbers, which became less effective at low temperatures. The company then modified the design of the shock absorbers and used a more temperature - resistant fluid. The new suspension system passed all the tests and provided a comfortable and stable ride in various weather conditions.

7. Service and Support

• Pre - Sales Technical Consultation
  • Our team of automotive testing experts provides in - depth technical consultations to help customers understand the capabilities and suitability of the custom fast change rate test chamber for their specific testing needs. We offer demonstrations and training sessions to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate chamber model and test parameters based on the customer's requirements.
• After - Sales Service and Maintenance
  • We offer comprehensive after - sales service, including on - site installation and commissioning. Our team of experienced technicians is available for regular maintenance, calibration, and emergency repairs. We provide genuine spare parts and timely upgrades to ensure the long - term performance and reliability of the chamber.
  • We also offer service contracts that include preventive maintenance and priority technical support. Our goal is to ensure that our customers' custom fast change rate test chambers are always in optimal working condition, providing accurate and reliable test results.
• Training and Technical Support
  • We conduct training programs for new users to ensure that they can effectively operate the custom fast change rate test chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization.
  • We also provide software updates and support for the control and monitoring systems of the chamber to keep it up - to - date with the latest features and technologies.
