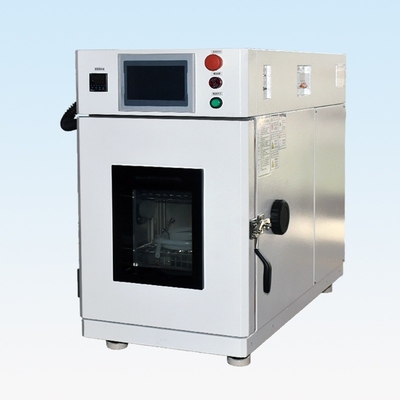

Bench Top Climatic Test Chamber for Electronic and electrical products
In the dynamic landscape of the electronics and electrical products industry, ensuring the reliability and performance of devices under diverse environmental conditions is of utmost importance. The bench top Climatic Test Chamber emerges as a compact yet powerful solution tailored specifically for testing electronic and electrical products. This chamber offers a convenient and efficient way to subject these products to controlled climatic conditions, enabling manufacturers, researchers, and quality control professionals to evaluate their performance and durability.
1. Product Name and Purpose
The bench top Climatic Test Chamber is designed to meet the specific testing requirements of a wide range of electronic and electrical products. These include small - scale devices such as smartphones, tablets, smartwatches, and wireless chargers, as well as components like printed circuit boards (PCBs), integrated circuits, and sensors. The primary purpose of this chamber is to simulate various real - world climatic conditions, such as temperature variations, humidity changes, and combinations of both, to assess how these products will perform and endure in different environments.
By subjecting electronic and electrical products to controlled climatic conditions, manufacturers can identify potential weaknesses in product design, materials, and manufacturing processes. This information can then be used to improve product quality, enhance reliability, and ensure that products meet the highest standards of performance, even in challenging environmental conditions.
2. Product Features
Precise Climatic Control
Wide Temperature Range
The bench top chamber is capable of maintaining a broad temperature range, typically from - 20°C to + 85°C. This range allows for the testing of products in a variety of environmental scenarios, from cold storage conditions to high - temperature industrial environments. The temperature control is highly precise, with an accuracy of ±0.5°C. This precision ensures that products are exposed to the exact temperature conditions required for the test, enabling accurate and reliable evaluation of their performance.
Accurate Humidity Regulation
Humidity levels within the chamber can be precisely regulated from 10% to 95% relative humidity. This wide humidity range is crucial as electronic and electrical products can be affected by both low and high humidity levels. Low humidity can cause static electricity problems, while high humidity can lead to corrosion, short - circuits, and other electrical issues. The humidity control accuracy is typically within ±3% relative humidity, ensuring that the test environment closely replicates real - world humidity conditions.
Compact and Space - Saving Design
Bench Top Form Factor

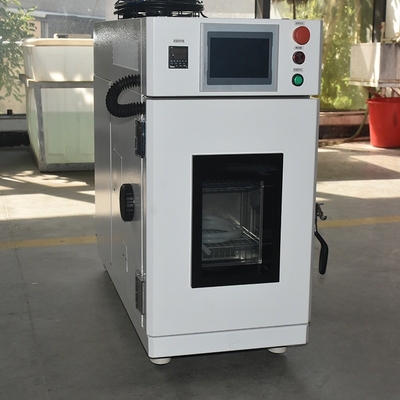

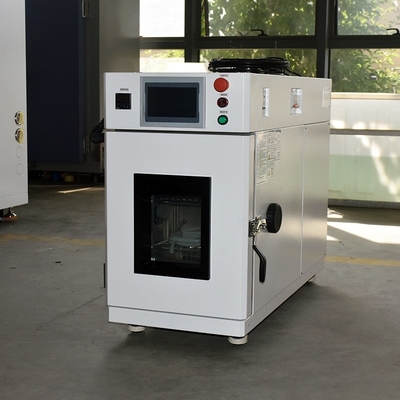

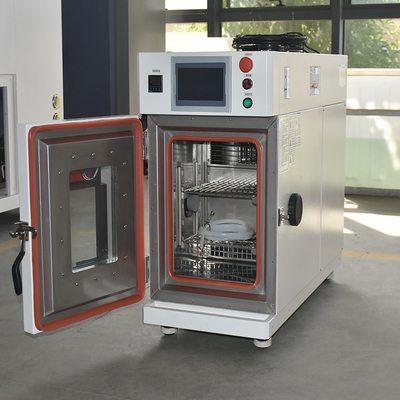

The bench top design of the chamber makes it ideal for use in laboratories, research facilities, and production lines where space is at a premium. Despite its compact size, it offers a sufficient test volume to accommodate a variety of electronic and electrical products. The chamber's dimensions are carefully optimized to fit on a standard laboratory bench, allowing for easy integration into existing testing setups.
Lightweight and Portable
The chamber is lightweight, making it easy to move and reposition as needed. This portability is particularly useful for testing products at different locations within a facility or for conducting on - site testing. The chamber can be easily transported to different workstations or even taken to customer sites for specific testing requirements.
Stable and Uniform Environment
Uniform Climatic Distribution

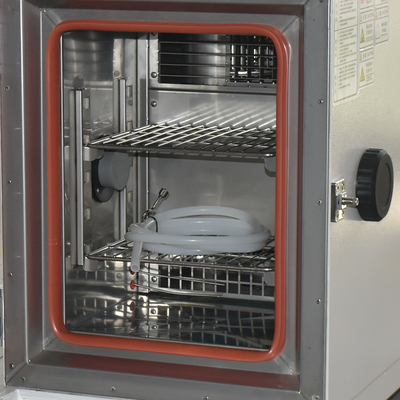

The interior of the bench top Climatic Test Chamber is designed to provide a uniform distribution of temperature and humidity throughout the test volume. Advanced air circulation systems and precise sensor placement ensure that the temperature variation within the chamber is typically within ±1°C, and the humidity variation is within ±5% relative humidity. This uniformity is essential for accurate testing, as it ensures that all parts of the product are exposed to the same environmental conditions, eliminating any potential biases in the test results.
Long - Term Stability
The chamber is capable of maintaining stable climatic conditions over long periods of time. This is crucial for conducting endurance tests, where products are exposed to specific temperature and humidity conditions for extended durations to evaluate their long - term performance and reliability. The chamber's stability ensures that the test conditions remain constant throughout the test, providing consistent and comparable results.
Multiple Test Modes and Customization
Programmable Test Profiles
Operators have the flexibility to create programmable test profiles that simulate complex and realistic environmental scenarios for electronic and electrical products. These profiles can include cyclic changes in temperature and humidity to mimic seasonal variations, sudden changes to simulate extreme weather events, or custom - tailored profiles based on specific product requirements. For example, a test profile can be designed to simulate the temperature and humidity changes that a smartphone may experience during a day in a tropical climate.
The ability to create customized test profiles allows manufacturers to test their products under specific conditions that are relevant to their intended use. This provides more accurate and meaningful test results, enabling them to better understand how their products will perform in different real - world scenarios.
Optional Test Accessories
The bench top Climatic Test Chamber can be equipped with a variety of optional test accessories to meet specific testing requirements. These accessories can include power supplies, data acquisition systems, vibration tables, and lighting systems. For example, a power supply can be used to apply electrical loads to the product during the test, simulating its actual operating conditions. A data acquisition system can be used to monitor and record the product's performance parameters, such as voltage, current, and temperature, in real - time.
User - Friendly Operation and Monitoring
Intuitive Control Interface

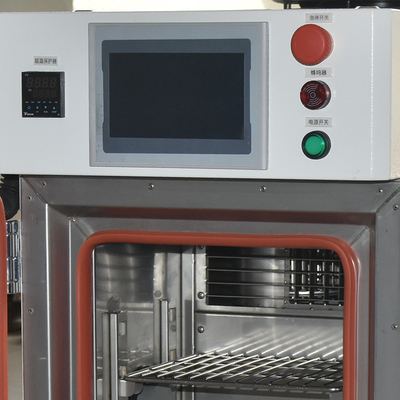

The chamber is equipped with an intuitive control interface that simplifies the operation process. The interface allows operators to easily set and adjust test parameters, such as temperature, humidity, test duration, and test profiles. It also provides a clear display of the current test status, including the actual temperature and humidity values, elapsed test time, and any error messages. The user - friendly design ensures that even operators with limited technical expertise can efficiently conduct tests.
Remote Monitoring and Control
Many models of the bench top Climatic Test Chamber offer remote monitoring and control capabilities. This feature allows operators to monitor the test progress and adjust the test parameters from a remote location, such as an office or a control center. This is particularly useful for long - term tests or when multiple tests are being conducted simultaneously. Remote monitoring and control enable timely intervention in case of any issues, ensuring the smooth and efficient operation of the testing process.
3. Specific Parameters
Temperature Range: - 20°C to + 85°C
Temperature Accuracy: ±0.5°C
Temperature Uniformity: ±1°C
Humidity Range: 10% to 95% relative humidity
Humidity Accuracy: ±3% relative humidity
Humidity Uniformity: ±5% relative humidity
Test Volume: Varies by model, typically from 20 L to 200 L
Cooling Capacity: Adequate to achieve and maintain the low - temperature range
Heating Capacity: Adequate to achieve and maintain the high - temperature range
Air Circulation Rate: Designed to ensure uniform climatic distribution
Power Supply: Compatible with standard electrical supply systems
4. Product Functions
Reliability and Durability Testing
By subjecting electronic and electrical products to controlled climatic conditions, the chamber helps manufacturers identify potential weaknesses and failure points in the products. This allows for the improvement of product designs, materials selection, and manufacturing processes to enhance reliability and durability. For example, if a product fails to function properly at a certain temperature and humidity combination, the manufacturer can make design changes to improve its performance in such conditions.
Performance Evaluation
The data collected from the tests provides valuable insights into how electronic and electrical products perform under different environmental conditions. This information can be used to evaluate the functionality, efficiency, and performance limits of the products. For example, manufacturers can determine how a product's battery life is affected by temperature and humidity, or how its signal strength is impacted by environmental factors.
Quality Control
The bench top Climatic Test Chamber is an essential tool for quality control in the manufacturing of electronic and electrical products. By testing products before they are shipped to customers, manufacturers can ensure that they meet the required quality standards. This helps to prevent defective products from reaching the market, protecting the reputation of the manufacturer and ensuring customer satisfaction.
Compliance Testing
The electronics and electrical products industry is subject to various national and international standards and regulations regarding the performance and reliability of products under different environmental conditions. The bench top Climatic Test Chamber enables manufacturers to conduct compliance testing to ensure that their products meet these requirements. For example, products may need to meet specific temperature and humidity endurance standards to be certified for sale in certain regions.
5. Production and Quality Assurance
Stringent Manufacturing Process
The manufacturing of the bench top Climatic Test Chamber follows strict quality control procedures. Each component, from the chamber's body and insulation materials to the temperature and humidity sensors, control electronics, and air circulation systems, is sourced from reliable suppliers and undergoes thorough inspection and testing.
The assembly process is carried out by highly skilled technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance. This includes testing the temperature and humidity control systems, air circulation performance, and overall chamber integrity.
Quality Certification and Validation
Our bench top Climatic Test Chamber has obtained relevant quality certifications, such as ISO standards for environmental testing equipment. It has also been validated by independent testing laboratories to ensure that it meets industry standards and provides accurate and reliable test results.
We continuously update and improve our product based on the latest technological advancements and customer feedback. This ensures that our bench top Climatic Test Chamber remains at the forefront of environmental testing technology for electronic and electrical products.
6. Application Areas and Success Stories
Smartphone Component Testing
A smartphone manufacturer was testing a new type of battery for its upcoming model. The batteries were placed in the bench top Climatic Test Chamber and subjected to different temperature and humidity conditions. The testing revealed that the battery's capacity decreased significantly at low temperatures. Based on this result, the manufacturer worked on improving the battery's chemistry and insulation to enhance its performance in cold environments.
PCB Testing
A printed circuit board (PCB) manufacturer was conducting quality control tests on its products. The PCBs were tested in the bench top Climatic Test Chamber to evaluate their performance under high humidity conditions. The testing showed that some of the PCBs had issues with solder joint reliability at high humidity. The manufacturer then improved the soldering process and added moisture - resistant coatings to the PCBs, improving their reliability.
Sensor Testing
A sensor manufacturer was developing a new type of environmental sensor. The sensors were tested in the bench top Climatic Test Chamber to evaluate their accuracy and performance under different temperature and humidity conditions. The testing helped the manufacturer identify the optimal operating conditions for the sensor and make necessary adjustments to improve its performance.
7. Service and Support
Pre - Sales Technical Consultation
Our team of experts in electronic and electrical product testing provides in - depth technical consultations to help customers understand the capabilities and suitability of the bench top Climatic Test Chamber for their specific testing needs. We offer demonstrations and training sessions to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate chamber model and test parameters based on the customer's requirements.
After - Sales Service and Maintenance
We offer comprehensive after - sales service, including on - site installation and commissioning. Our team of experienced technicians is available for regular maintenance, calibration, and emergency repairs. We provide genuine spare parts and timely upgrades to ensure the long - term performance and reliability of the chamber.
We also offer service contracts that include preventive maintenance and priority technical support. Our goal is to ensure that our customers' bench top Climatic Test Chambers are always in optimal working condition, providing accurate and reliable test results.
Training and Technical Support
We conduct training programs for new users to ensure that they can effectively operate the bench top Climatic Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization.
We also provide software updates and support for the control and monitoring systems of the chamber to keep it up - to - date with the latest features and technologies.
The bench top Climatic Test Chamber is an essential tool for the electronics and electrical products industry. If you are looking to enhance the quality and reliability of your products, this chamber offers a convenient and effective solution. Contact us today to learn more and get a customized quotation.
