Sand Dust Proof IP5X IP6X Environment Test Chamber testing Product Protection Against Sand And Dust

1. Product Name and Purpose

2. Product Features

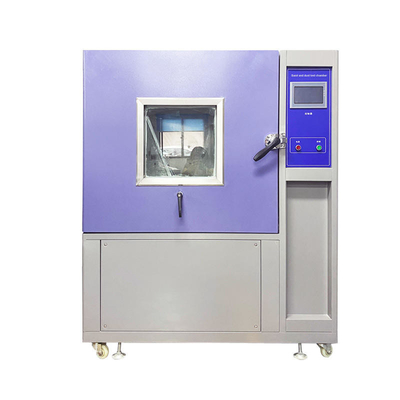

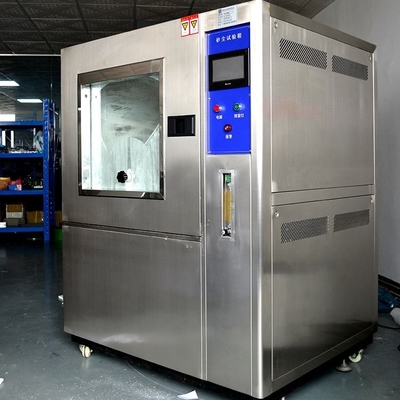

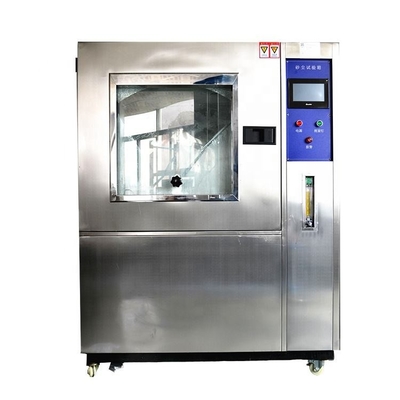

• Robust and Sealed Chamber Structure
  • The test chamber is constructed with a heavy-duty stainless steel frame and walls, providing exceptional durability and resistance to corrosion. The chamber is hermetically sealed with high-quality gaskets and advanced sealing mechanisms, ensuring a leak-proof environment during testing. The door is equipped with a reliable locking system and a pressure-resistant viewing window, allowing operators to closely monitor the test process without compromising the integrity of the chamber. The interior of the chamber is designed to facilitate easy cleaning and removal of sand and dust after each test.
• Precision Sand and Dust Generation System
  • The heart of the chamber lies in its advanced sand and dust generation system. It can produce a controlled stream of sand and dust particles with adjustable particle size distribution. The system can generate particles ranging from fine dust (less than 75 microns) to coarse sand (up to 1000 microns), mimicking different real-world sand and dust conditions. The flow rate of the sand and dust can also be precisely adjusted, allowing for the simulation of various levels of sandstorm intensity. The sand and dust are stored in a separate reservoir and are fed into the chamber through a pneumatic or mechanical delivery system.
• Accurate Airflow and Pressure Control
  • The chamber is equipped with a sophisticated airflow and pressure control system. It can create a laminar or turbulent airflow within the chamber, depending on the test requirements. The air velocity can be adjusted from a gentle breeze (less than 1 m/s) to a strong wind (up to 10 m/s), simulating different wind conditions that may carry sand and dust. The pressure inside the chamber can also be controlled to replicate the pressure differentials that products may experience in real-world applications. This accurate control of airflow and pressure ensures that the sand and dust particles are evenly distributed and interact with the test samples in a realistic manner.
• Intuitive Control Panel and Data Acquisition Interface
  • The equipment is equipped with an intuitive control panel that simplifies the operation and parameter setting. Operators can easily adjust the sand and dust particle size, flow rate, airflow velocity, pressure, and test duration using the user-friendly interface. The control panel also provides real-time displays of the current test conditions, as well as any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system. It records all relevant test data, such as sand and dust particle size and concentration profiles, airflow and pressure histories, and any observable signs of sand or dust intrusion in the test samples. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.

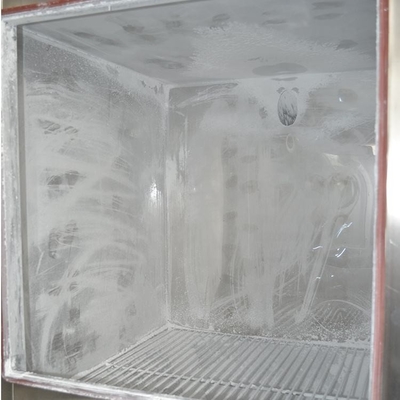

• Versatile Sample Fixturing and Placement
  • The interior of the chamber is designed to accommodate a wide variety of sample sizes and shapes. It can be equipped with adjustable racks, trays, and custom-made holders to ensure proper positioning and exposure of the test samples. The sample fixturing is made of materials that are resistant to sand and dust abrasion and do not contaminate the test environment. This flexibility allows for the testing of different products, from small electronic components to large automotive parts or aerospace assemblies. For example, a smartphone can be mounted on a holder to test its resistance to dust ingress, while a car engine can be placed on a rack to evaluate its protection against sand and dust in a desert environment.

3. Specific Parameters

• Sand and Dust Particle Size Range
  • The chamber can generate sand and dust particles with a size range from 10 microns to 1000 microns. This wide range enables the testing of products against different types of sand and dust, from fine desert dust to coarse beach sand. The ability to precisely control the particle size is crucial for evaluating the effectiveness of a product's filtration and sealing systems. For example, a product designed for use in a cleanroom environment may need to be tested against very fine particles, while a product for off-road vehicles may need to withstand larger sand grains.
• Sand and Dust Flow Rate and Concentration
  • The flow rate of sand and dust can be adjusted from 1 gram per minute to 100 grams per minute, and the concentration can be varied from 10% to 90% by volume. This flexibility allows for the simulation of different levels of sand and dust exposure, from a light dusting to a severe sandstorm. The accurate control of flow rate and concentration ensures that the test conditions are reproducible and reliable, enabling manufacturers to make informed decisions about product design and protection measures.

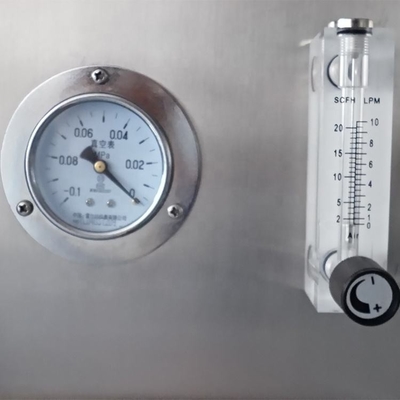

• Airflow Velocity and Pressure Range
  • The airflow velocity can be set from 0.5 m/s to 10 m/s, and the pressure inside the chamber can be adjusted from -500 Pa to +500 Pa. These ranges allow for the simulation of different wind speeds and pressure differentials. For example, a product used in a windy mountainous area may need to be tested against higher wind velocities and pressure changes, while a product in a static indoor environment may only need to withstand minimal air movement and pressure fluctuations.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, with options ranging from 0.5 m³ to 10 m³. The payload capacity can be adjusted according to the size and weight of the test samples, with a maximum capacity of up to 1000 kg. This allows for the testing of a significant number of samples or larger and heavier products. For example, in the automotive industry, multiple car parts or even a complete vehicle can be tested in a larger chamber, while in the electronics industry, a batch of small devices can be tested simultaneously in a smaller chamber.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 100 Hz, providing a detailed record of the sand and dust particle characteristics, airflow, and pressure changes. The resolution of the particle size data is 1 micron, the flow rate data is 0.1 gram per minute, the airflow velocity data is 0.1 m/s, and the pressure data is 1 Pa. This high-resolution data is invaluable for identifying even the slightest trends and potential failure points, allowing for a more accurate assessment of product protection performance.

4. Product Functions

• Accurate Simulation of Sand and Dust Environments
  • The primary function of the chamber is to provide a precise and reliable simulation of sand and dust conditions. By subjecting products to controlled sand and dust particle size, flow rate, airflow velocity, and pressure, it allows manufacturers and researchers to evaluate their resistance to sand and dust ingress. This is crucial for ensuring the reliability and durability of products such as smartphones, cameras, automotive electronics, and aerospace components, as it helps identify potential failure modes and allows for design improvements. For example, testing a camera's lens and body seals against fine dust can ensure that it can maintain clear images in dusty environments.
• Product Design Optimization and Quality Control
  • Through a series of tests on different product prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the behavior of various materials and components under sand and dust exposure and make modifications to enhance the overall protection. The chamber also serves as a vital tool for quality control, ensuring that each batch of products meets the required sand and dust resistance standards. For instance, in the manufacturing of automotive air filters, testing in the sand dust proof chamber can help determine the filter's efficiency and durability, leading to improvements in product quality and performance.
• Research and Development Support
  • In the field of research and development, the Simulated Environment Sand Dust Proof Resistance IP5X IP6X Test Chamber offers valuable insights. Researchers can use it to study the fundamental properties of materials and the mechanisms of sand and dust penetration. They can explore new materials and coatings that are more resistant to sand and dust abrasion. For example, materials scientists can test the performance of novel self-cleaning coatings on solar panels, using the chamber to evaluate their effectiveness in repelling sand and dust and maintaining panel efficiency, paving the way for advancements in product technology.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet industry regulations and international standards. Many industries have specific requirements regarding product sand and dust resistance, such as the IP5X and IP6X standards. The chamber can be used to perform tests according to these standards, ensuring that products are properly rated and certified. The test results can then be used to obtain product certifications and ensure market acceptance. For example, a new smartphone model must pass specific sand and dust tests to achieve a certain IP rating, which is crucial for its success in the market.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Simulated Environment Sand Dust Proof Resistance IP5X IP6X Test Chamber is manufactured under strict quality control procedures. Each component, from the stainless steel frame and sand dust generation system to the airflow and pressure control units, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for sand and dust testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Electronics Industry
  • A leading smartphone manufacturer used the chamber to test a new model. The smartphone was subjected to a series of sand and dust tests, including different particle sizes and flow rates. The testing revealed a weakness in the speaker grille's protection, which allowed fine dust to enter and affect the sound quality. By redesigning the grille and adding a finer mesh filter, the manufacturer was able to enhance the phone's sand and dust resistance and improve the user experience.
• Automotive Sector
  • An automotive company tested a new air conditioning system in the chamber. The system was exposed to a combination of sand and dust, high airflow, and pressure changes. The testing identified a problem with the condenser's fins, which were prone to clogging with sand. By optimizing the fin design and adding a protective coating, the company was able to improve the system's durability and performance in dusty environments, reducing the need for frequent maintenance.
• Aerospace Industry
  • An aerospace component manufacturer tested a new avionics enclosure in the chamber. The enclosure was subjected to extreme sand and dust conditions, simulating desert and volcanic ash environments. The testing showed that the seals around the connectors had some leakage issues. By using a more advanced sealing material and improving the connector design, the manufacturer was able to enhance the enclosure's protection against sand and dust, ensuring the reliable operation of the avionics system in harsh aerospace environments.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of sand and dust testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the customized chamber for their specific testing needs. We offer demonstrations and training, tailored to the industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or components to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for sand and dust testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Simulated Environment Sand Dust Proof Resistance IP5X IP6X Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with sand and dust testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
