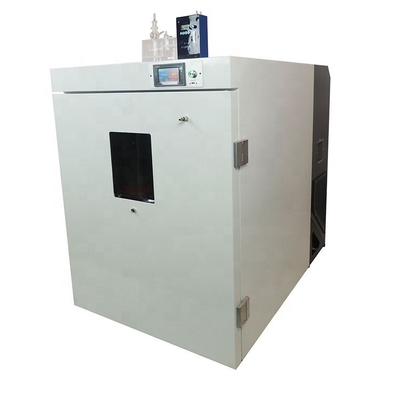

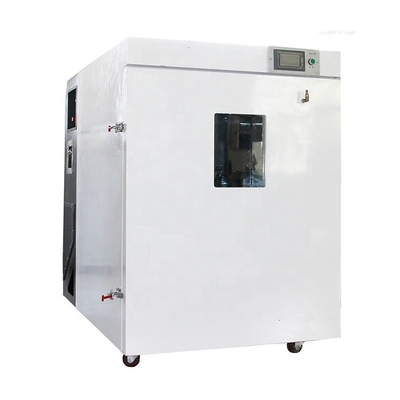

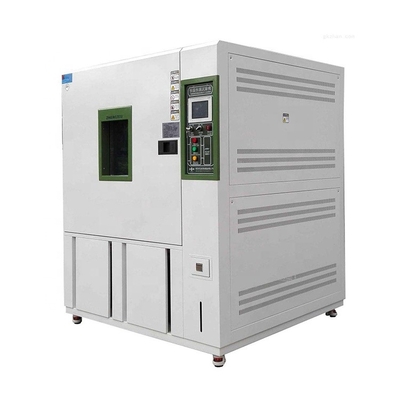

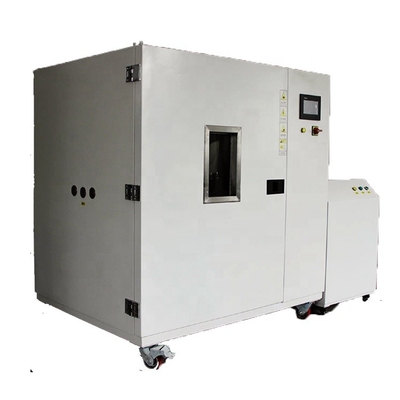

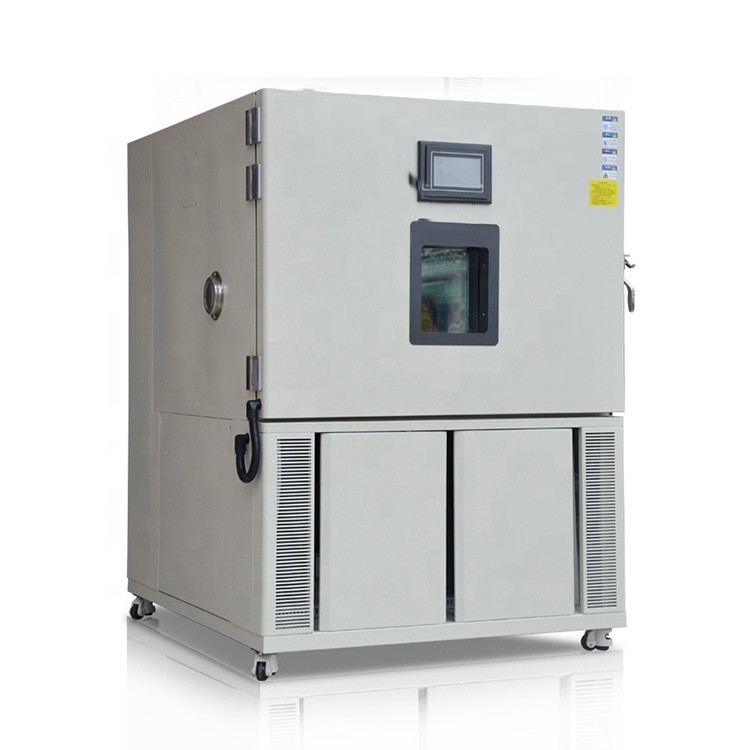

Formaldehyde Climatic Test Chamber For Wood Based Panels Furniture Industries

1. Product Name and Purpose

2. Product Features

• Sturdy and Insulated Chamber Structure
  • The test chamber is constructed with a heavy-duty steel frame and insulated walls. The steel frame provides excellent structural integrity, ensuring the chamber can withstand the rigors of continuous testing. The insulation materials are carefully selected to maintain a stable internal environment and prevent heat transfer from the outside. The chamber is sealed with high-quality gaskets and advanced sealing mechanisms to prevent any leakage of formaldehyde or air, ensuring accurate test results. The door is equipped with a reliable locking system and a viewing window, allowing operators to monitor the test process without disturbing the internal conditions.
• Precision Temperature, Humidity, and Airflow Control
  • The heart of the chamber lies in its advanced control system. It can precisely regulate the temperature within a wide range, typically from 10°C to 40°C, with an accuracy of ±0.5°C. The humidity control range extends from 30% to 80% relative humidity, with an accuracy of ±3% RH. The air exchange rate can be adjusted from 0.1 to 1.5 times per hour, allowing for the simulation of different ventilation conditions. The system utilizes high-performance refrigeration units, electric heaters, humidifiers, dehumidifiers, and variable-speed fans, all coordinated by a sophisticated PID controller. Temperature, humidity, and airflow sensors are strategically placed within the chamber to provide real-time feedback, enabling the control system to make instantaneous and accurate adjustments.
• Formaldehyde Detection and Analysis System
  • The chamber is integrated with a highly sensitive formaldehyde detection system. It can accurately measure formaldehyde concentrations as low as 0.01 ppm. The detection method may include spectroscopic techniques or chemical sensors. The system continuously monitors the formaldehyde levels in the chamber air and records the data. It also has the ability to analyze the formaldehyde emission rate over time, providing valuable information about the emission characteristics of the tested wood-based panels. The data can be displayed in real-time on the control panel and stored for further analysis and reporting.
• Intuitive Control Panel and Data Acquisition Interface
  • The equipment is equipped with an intuitive control panel that simplifies the operation and parameter setting. Operators can easily adjust the temperature, humidity, air exchange rate, and test duration using the user-friendly interface. The control panel also provides real-time displays of the current test conditions, as well as any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system. It records all relevant test data, including temperature and humidity histories, air exchange rate profiles, and formaldehyde concentration curves. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.
• Versatile Sample Fixturing and Placement
  • The interior of the chamber is designed to accommodate different sizes and shapes of wood-based panel samples. It can be equipped with adjustable racks, trays, and holders to ensure proper positioning and exposure of the samples. The sample fixturing is made of materials that do not adsorb or emit formaldehyde, ensuring the accuracy of the test. This flexibility allows for the testing of a wide variety of wood-based panel products, from small decorative panels to large construction-grade sheets.

3. Specific Parameters

• Temperature Range and Accuracy
  • The temperature range of 10°C to 40°C, with an accuracy of ±0.5°C, is crucial for simulating different indoor and outdoor climatic conditions. This wide range enables the testing of wood-based panels in various environments, such as cold winter interiors or warm and humid summer rooms. The accurate temperature control ensures that the formaldehyde emission rates are measured under consistent and reliable conditions.
• Humidity Range and Accuracy
  • The humidity range of 30% to 80% RH, with an accuracy of ±3% RH, is significant as formaldehyde emissions are known to be affected by moisture levels. Higher humidity can accelerate the release of formaldehyde from wood-based panels. The precise humidity control allows for a detailed study of the relationship between humidity and formaldehyde emissions, providing valuable insights for product design and quality control.
• Air Exchange Rate Range and Accuracy
  • The adjustable air exchange rate from 0.1 to 1.5 times per hour, with an accuracy of ±0.05 times per hour, mimics different ventilation scenarios. In a well-ventilated room, the air exchange rate is higher, which can affect the formaldehyde concentration. By accurately controlling the air exchange rate, the test chamber can evaluate the impact of ventilation on formaldehyde emissions, helping to determine the appropriate ventilation requirements for indoor spaces using wood-based panels.
• Formaldehyde Detection Limit and Accuracy
  • The ability to detect formaldehyde concentrations as low as 0.01 ppm, with an accuracy of ±0.005 ppm, is essential for measuring even trace amounts of formaldehyde. This high sensitivity and accuracy ensure that the test chamber can detect and quantify formaldehyde emissions accurately, meeting the strictest regulatory and quality control standards.
• Testing Volume and Sample Capacity
  • The chamber offers a customizable testing volume, typically ranging from 0.5 m³ to 5 m³. The sample capacity can be adjusted according to the size and number of wood-based panel samples. Larger chambers can accommodate multiple large panels or a batch of smaller samples, allowing for efficient testing of different production lots or product variants.

4. Product Functions

• Accurate Measurement of Formaldehyde Emissions
  • The primary function of the chamber is to provide a precise and reliable measurement of formaldehyde emissions from wood-based panels. By subjecting the samples to controlled temperature, humidity, and air exchange rate conditions, it allows manufacturers and researchers to determine the actual formaldehyde release levels. This is crucial for ensuring that products comply with regulatory limits and for providing consumers with accurate information about the potential formaldehyde exposure from wood-based panel products.
• Product Quality Control and Improvement
  • Through a series of tests on different wood-based panel prototypes and production batches, the data obtained from the chamber can be used to optimize product quality. Manufacturers can analyze the formaldehyde emission data and make modifications to the production process, such as adjusting the resin formulation or the curing conditions, to reduce formaldehyde emissions. The chamber serves as a vital tool for quality control, ensuring that each batch of wood-based panels meets the required formaldehyde emission standards.
• Research and Development Support
  • In the field of wood-based panel research and development, the Formaldehyde Climatic Emission Test Chamber offers valuable insights. Researchers can use it to study the fundamental mechanisms of formaldehyde emission, explore new materials and manufacturing techniques that can reduce formaldehyde levels, and evaluate the long-term stability of formaldehyde emissions. For example, they can test the effectiveness of new formaldehyde-free resins or additives in reducing emissions, paving the way for more sustainable and environmentally friendly wood-based panel products.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet industry regulations and international standards. Many countries and regions have strict limits on formaldehyde emissions from wood-based panels, such as the European E1 and E0 standards. The chamber can be used to perform tests according to these standards, providing the necessary data for product certification. This ensures that wood-based panel products can enter the market and gain consumer trust.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Formaldehyde Climatic Emission Test Chamber is manufactured under strict quality control procedures. Each component, from the steel frame and insulation materials to the temperature and humidity control units, formaldehyde detection system, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for formaldehyde emission testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Furniture Manufacturing
  • A leading furniture manufacturer used the chamber to test a new line of wooden cabinets. The cabinets were made from particleboard, and the tests revealed that the formaldehyde emissions were slightly above the regulatory limit. By adjusting the resin content and using a different curing process, the manufacturer was able to reduce the formaldehyde emissions to an acceptable level, ensuring the safety and quality of their products and complying with market requirements.
• Construction Materials Industry
  • A plywood manufacturer tested their products in the chamber to evaluate their formaldehyde emissions. The tests were conducted under different temperature and humidity conditions to simulate various construction environments. The results showed that a particular production batch had higher emissions in humid conditions. By improving the drying process and using a more stable adhesive, the manufacturer was able to improve the quality of their plywood and reduce formaldehyde emissions, enhancing the competitiveness of their products in the construction market.
• Research Institutions
  • A research institute focused on sustainable building materials used the chamber to study the long-term formaldehyde emission behavior of different wood-based panels. They conducted tests over a period of several months, varying the temperature and humidity conditions. The research led to the discovery of new materials and treatment methods that could significantly reduce formaldehyde emissions over time, providing valuable insights for the development of more environmentally friendly building materials.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of formaldehyde testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the wood-based panel industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or materials to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for formaldehyde emission testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Formaldehyde Climatic Emission Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with formaldehyde emission testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
