Customized Water Immersion Test Chamber: Unraveling the Secrets of Product Waterproof Integrity
In the modern manufacturing landscape, the ability of products to withstand water immersion is a critical factor that can make or break their success in the market. The Customized Water Immersion Test Chamber emerges as a powerful and indispensable tool, designed to meet the diverse and specific needs of various industries.
1. Product Name and Purpose
This state-of-the-art test chamber is meticulously crafted to subject products to controlled water immersion conditions. It serves a wide range of industries, including electronics, automotive, marine, and consumer goods. The primary objective is to evaluate the waterproof capabilities and durability of products when submerged in water for extended periods. By simulating real-world water immersion scenarios, manufacturers can identify potential leakage points, assess the integrity of seals and enclosures, and optimize product designs to ensure reliable performance in wet environments.
2. Product Features
Robust and Sealed Chamber Structure

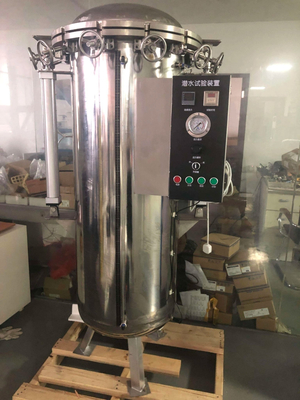

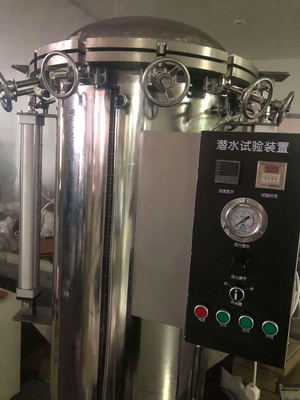

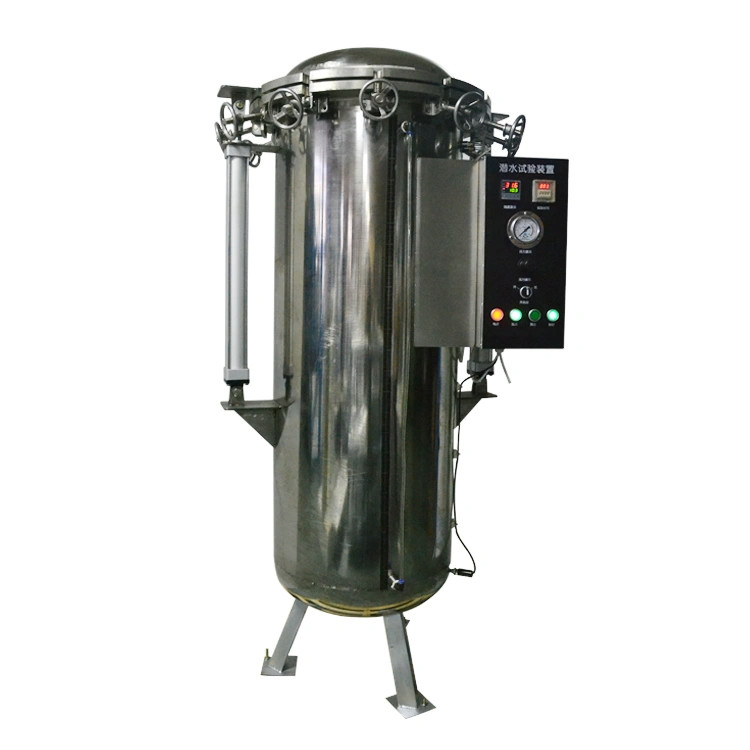

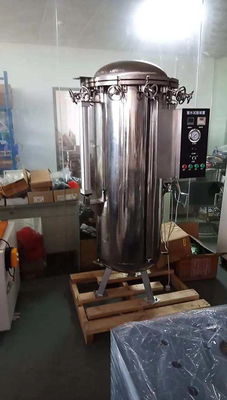

The test chamber is constructed with a heavy-duty stainless steel frame and walls, providing exceptional durability and resistance to corrosion. The stainless steel construction not only withstands the continuous exposure to water but also ensures a stable and reliable enclosure. The chamber is hermetically sealed with high-quality gaskets and advanced sealing mechanisms, preventing any water leakage during the test. The door is equipped with a reliable locking system and a transparent, pressure-resistant viewing window, allowing operators to closely monitor the test process without compromising the integrity of the chamber.
Precision Water Level and Pressure Control
The heart of the chamber lies in its advanced water level and pressure control system. It can accurately adjust the water level within the chamber, ranging from a few centimeters to complete submersion of the test samples. The system also allows for precise control of water pressure, simulating different depths of water immersion. The pressure can be adjusted from atmospheric pressure to several bars, depending on the specific test requirements. The control system utilizes high-precision sensors and valves to maintain the desired water level and pressure with an accuracy of ±0.5% of the set value.
Customizable Temperature and Water Quality Control
The chamber offers precise control over water temperature, with a range from 0°C to 80°C. This feature is essential for testing products in different temperature conditions, as water temperature can affect the performance and durability of materials. Additionally, the system can be integrated with water filtration and purification units to control the quality of the water used in the test. This is particularly important for testing sensitive electronic components or products that may be affected by impurities in the water.

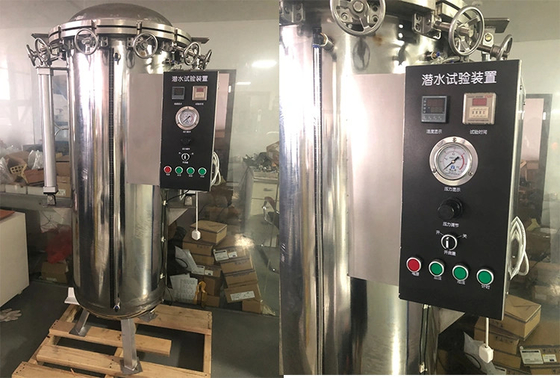

Intuitive Control Panel and Data Acquisition Interface
The equipment is equipped with an intuitive control panel that simplifies the operation and parameter setting. Operators can easily adjust the water level, pressure, temperature, and test duration using the user-friendly interface. The control panel also provides real-time displays of the current test conditions, as well as any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system. It records all relevant test data, such as water level and pressure profiles, temperature histories, and any observable signs of leakage or damage in the test samples. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.
Versatile Sample Fixturing and Placement
The interior of the chamber is designed to accommodate a wide variety of sample sizes and shapes. It can be equipped with adjustable racks, trays, and custom-made holders to ensure proper positioning and exposure of the test samples. The sample fixturing is made of materials that are resistant to water and do not contaminate the test environment. This flexibility allows for the testing of different products, from small electronic devices to large automotive parts or marine equipment. For example, a smartphone can be mounted on a holder to test its waterproofing capabilities, while a boat engine can be placed on a rack to evaluate its resistance to water immersion.
3. Specific Parameters
Maximum Water Depth and Pressure
The chamber can achieve a maximum water depth of up to 10 meters, corresponding to a water pressure of approximately 1 bar per meter of depth. The accurate control of water pressure ensures that the test results are reliable and repeatable, allowing manufacturers to make informed decisions about product design and waterproofing measures. This wide range of water depth and pressure is crucial for testing products that may be exposed to different levels of water immersion, such as underwater cameras, diving equipment, or automotive components near water sources.
Water Temperature Range and Rate of Change
The water temperature can be adjusted from 0°C to 80°C, with a rate of change of up to 5°C per minute. This wide temperature range and adjustable rate of change are essential for simulating different environmental conditions. For example, a product may need to withstand cold water in winter or hot water in industrial applications. The ability to control the temperature precisely helps in understanding how products respond to temperature variations during water immersion.
Testing Volume and Payload Capacity
The chamber offers a customizable testing volume, with options ranging from 0.5 m³ to 10 m³. The payload capacity can be adjusted according to the size and weight of the test samples, with a maximum capacity of up to 1000 kg. This allows for the testing of a significant number of samples or larger and heavier products. For example, in the automotive industry, multiple car parts or even a complete vehicle can be tested in a larger chamber, while in the electronics industry, a batch of small devices can be tested simultaneously in a smaller chamber.
Data Sampling Frequency and Resolution
The data acquisition system samples data at a frequency of up to 100 Hz, providing a detailed record of the water level, pressure, temperature, and any changes in the test samples. The resolution of the water level data is 0.1 cm, the pressure data is 0.01 bar, and the temperature data is 0.1°C. This high-resolution data is invaluable for identifying subtle trends and potential failure points, allowing for a more accurate assessment of product waterproofing performance.
4. Product Functions
Accurate Simulation of Water Immersion Conditions
The primary function of the chamber is to provide a precise and reliable simulation of water immersion scenarios. By subjecting products to controlled water levels, pressures, temperatures, and durations, it allows manufacturers and researchers to evaluate their waterproof performance. This is crucial for industries where products are exposed to water, such as in the case of waterproof electronics, marine equipment, and automotive components near water bodies. For example, a waterproof watch can be tested to ensure that it remains functional and leak-free even when submerged in water for an extended period, simulating the conditions it may encounter during swimming or diving.
Product Design Optimization and Quality Control
Through a series of tests on different product prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the behavior of various materials and components under water immersion and make modifications to enhance the product's overall waterproofing. The chamber also serves as a vital tool for quality control, ensuring that each batch of products meets the required waterproof standards. For instance, in the manufacturing of outdoor speakers, regular testing in the water immersion chamber can help detect any weaknesses in the speaker enclosure or seals, leading to improvements in product quality.
Research and Development Support
In the field of research and development, the Customized Water Immersion Test Chamber offers valuable insights. Researchers can use it to study the fundamental properties of materials and the mechanisms of water penetration. They can explore new materials and coatings that are more resistant to water immersion. For example, materials scientists can test the performance of novel hydrophobic coatings on different substrates, using the chamber to evaluate their effectiveness in repelling water and preventing leakage, paving the way for advancements in waterproofing technology.
Compliance Testing and Certification
The equipment is essential for conducting compliance testing to meet industry regulations and international standards. Many industries have specific requirements regarding product waterproofing, and the chamber can be used to perform tests according to standards such as IPX rating tests for electronics or marine equipment standards. The test results can then be used to obtain product certifications and ensure market acceptance.
5. Production and Quality Assurance
Stringent Manufacturing Process
The customized Water Immersion Test Chamber is manufactured under strict quality control procedures. Each component, from the stainless steel frame and water pump to the pressure sensors, temperature control system, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
Quality Certification and Validation
Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for water immersion testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.
6. Application Areas and Success Stories
Electronics Industry
A leading smartphone manufacturer used the chamber to test a new model's waterproof capabilities. The phone was submerged in water at different depths and temperatures for extended periods. The testing revealed a small gap in the SIM card tray seal, which could potentially allow water to enter. By redesigning the seal and conducting further tests, the manufacturer was able to enhance the phone's waterproof rating, providing consumers with a more reliable device.
Automotive Sector
An automotive company tested a new engine control unit (ECU) in the chamber. The ECU was immersed in water to simulate a flooded engine compartment. The testing identified a weakness in the casing's waterproofing, which could lead to water ingress and malfunction. By improving the casing design and using a more water-resistant material, the company was able to ensure the ECU's reliable operation in wet conditions, enhancing vehicle safety.
Marine Equipment Manufacturing
A manufacturer of marine navigation systems used the chamber to evaluate the waterproofness of a new product. The system was submerged in saltwater at different pressures and temperatures, mimicking the harsh marine environment. The testing showed that the connectors had some leakage issues. By upgrading the connector design and adding a corrosion-resistant coating, the manufacturer was able to produce a more reliable navigation system, suitable for use on boats and ships.
7. Service and Support
Pre-Sales Technical Consultation
Our team of waterproofing testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the customized chamber for their specific testing needs. We offer demonstrations and training, tailored to the industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or materials to be tested.
After-Sales Service and Maintenance
We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for water immersion testing.
Training and Technical Support
We conduct training programs for new users to ensure they can effectively operate the Customized Water Immersion Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with waterproofing testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
The Customized Water Immersion Test Chamber is an essential asset for any organization involved in product development, quality control, and research where waterproofing is a concern. If you are looking to enhance your testing capabilities, ensure compliance with industry standards, or drive innovation in waterproof product design, this is the ideal solution. Contact us today to learn more and get a customized quotation. Let us help you unlock the full potential of your waterproofing testing efforts.
