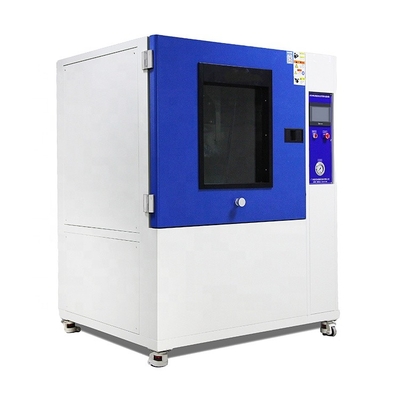

High Pressure Salt Spray Test Chamber Waterproof Customized

1. Product Name and Purpose

2. Product Features

• Robust and Sealed Chamber Structure
  • The test chamber is constructed with a heavy-duty stainless steel frame and walls, ensuring exceptional durability and resistance to corrosion. The stainless steel construction not only withstands the continuous exposure to water but also provides a stable and reliable enclosure. The chamber is hermetically sealed with high-quality gaskets and advanced sealing mechanisms, preventing any water leakage during the test. The door is equipped with a reliable locking system and a pressure-resistant window, allowing operators to observe the test process without compromising the integrity of the chamber.
• Precision High Pressure Spray System
  • The heart of the chamber lies in its advanced high pressure spray system. It can generate water pressure ranging from 1 bar to 100 bars, with an adjustable spray nozzle that can produce different spray patterns, such as a fine mist, a concentrated jet, or a wide-angle spray. The system is equipped with a high-capacity water pump and a precise pressure regulator, ensuring accurate and stable water pressure delivery. The spray nozzles are strategically placed within the chamber to ensure uniform coverage of the test samples, mimicking real-world water exposure scenarios.
• Customizable Water Temperature and Quality Control
  • The chamber allows for precise control of water temperature, with a range from 5°C to 80°C. This feature is essential for testing products in different temperature conditions, as water temperature can affect the performance and durability of materials. Additionally, the system can be integrated with water filtration and purification units to control the quality of the water used in the test. This is particularly important for testing sensitive electronic components or products that may be affected by impurities in the water.
• Intuitive Control Panel and Data Acquisition Interface
  • The equipment is equipped with an intuitive control panel that enables operators to easily set and adjust the test parameters, including water pressure, spray pattern, temperature, and test duration. The control panel also provides real-time displays of the current test conditions and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data, such as water pressure profiles, temperature histories, and any observable signs of leakage or damage in the test samples. The data can be stored in a built-in memory or exported to external storage devices for further analysis and reporting.
• Versatile Sample Fixturing and Placement
  • The interior of the chamber is designed to accommodate a wide variety of sample sizes and shapes. It can be equipped with adjustable racks, trays, and custom-made holders to ensure proper positioning and exposure of the test samples. The sample fixturing is made of materials that are resistant to water and do not contaminate the test environment. This flexibility allows for the testing of different products, from small electronic devices to large automotive parts or building components. For example, a smartphone can be mounted on a holder to test its waterproofing capabilities, while a car bumper can be placed on a rack to evaluate its resistance to high-pressure water spray.

3. Specific Parameters

• Maximum Water Pressure and Accuracy
  • The chamber can reach a maximum water pressure of 100 bars, with an accuracy of ±1 bar. This high-pressure range enables the testing of products that may be exposed to extreme water forces, such as in underwater equipment or during heavy rainstorms. The accurate control of water pressure ensures that the test results are reliable and repeatable, allowing manufacturers to make informed decisions about product design and waterproofing measures.
• Water Temperature Range and Rate of Change
  • The water temperature can be adjusted from 5°C to 80°C, with a rate of change of up to 5°C per minute. This wide temperature range and adjustable rate of change are crucial for simulating different environmental conditions. For example, a product may need to withstand cold water in winter or hot water in industrial applications. The ability to control the temperature precisely helps in understanding how products respond to temperature variations during water exposure.
• Spray Pattern Options and Coverage
  • The spray nozzle offers multiple spray pattern options, including a fine mist with a droplet size ranging from 50 microns to 200 microns, a concentrated jet with a diameter of 1 mm to 10 mm, and a wide-angle spray covering an area of up to 180 degrees. The coverage of the spray can be adjusted to ensure that the entire test sample is evenly exposed to the water. This flexibility in spray patterns allows for the testing of products under different types of water exposure, such as light rain, heavy downpour, or high-pressure washing.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, with options ranging from 0.5 m³ to 10 m³. The payload capacity can be adjusted according to the size and weight of the test samples, with a maximum capacity of up to 1000 kg. This allows for the testing of a significant number of samples or larger and heavier products. For example, in the automotive industry, multiple car parts or even a complete vehicle can be tested in a larger chamber, while in the electronics industry, a batch of small devices can be tested simultaneously in a smaller chamber.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 100 Hz, providing a detailed record of the water pressure, temperature, and spray pattern changes. The resolution of the water pressure data is 0.1 bar, the temperature data is 0.1°C, and the spray pattern data includes accurate measurements of droplet size and spray angle. This high-resolution data is invaluable for identifying subtle trends and potential failure points, allowing for a more accurate assessment of product waterproofing performance.

4. Product Functions

• Accurate Simulation of High Pressure Water Exposure
  • The primary function of the chamber is to provide a precise and reliable simulation of high pressure water spray conditions. By subjecting products to controlled water pressure, temperature, and spray patterns, it allows manufacturers and researchers to evaluate their waterproof performance. This is crucial for industries where products are exposed to water, such as in the case of waterproof electronics, automotive components, and outdoor equipment. For example, a waterproof watch can be tested to ensure that it remains functional and leak-free even when subjected to high-pressure water jets, simulating the conditions it may encounter during swimming or diving.
• Product Design Optimization and Quality Control
  • Through a series of tests on different product prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the behavior of various materials and components under high pressure water exposure and make modifications to enhance the product's overall waterproofing. The chamber also serves as a vital tool for quality control, ensuring that each batch of products meets the required waterproof standards. For instance, in the manufacturing of outdoor speakers, regular testing in the high pressure spray chamber can help detect any weaknesses in the speaker enclosure or seals, leading to improvements in product quality.
• Research and Development Support
  • In the field of research and development, the Customized High Pressure Spray Test Chamber offers valuable insights. Researchers can use it to study the fundamental properties of materials and the mechanisms of water penetration. They can explore new materials and coatings that are more resistant to high pressure water. For example, materials scientists can test the performance of novel hydrophobic coatings on different substrates, using the chamber to evaluate their effectiveness in repelling water and preventing leakage, paving the way for advancements in waterproofing technology.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet industry regulations and international standards. Many industries have specific requirements regarding product waterproofing, and the chamber can be used to perform tests according to standards such as IPX rating tests for electronics or automotive waterproofing standards. The test results can then be used to obtain product certifications and ensure market acceptance.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The customized High Pressure Spray Test Chamber is manufactured under strict quality control procedures. Each component, from the stainless steel frame and water pump to the spray nozzles, temperature control system, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for high pressure spray testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Electronics Industry
  • A leading smartphone manufacturer used the chamber to test a new model's waterproof capabilities. The phone was subjected to a series of high pressure spray tests, including different water pressures, temperatures, and spray patterns. The testing revealed a small gap in the charging port seal, which could potentially allow water to enter. By redesigning the seal and conducting further tests, the manufacturer was able to enhance the phone's waterproof rating, providing consumers with a more reliable device.
• Automotive Sector
  • An automotive company tested a new headlight assembly in the chamber. The headlights were exposed to high pressure water spray, simulating heavy rain and car wash conditions. The testing identified a weakness in the lens bonding, which could lead to water ingress and fogging. By improving the bonding process and using a more water-resistant adhesive, the company was able to ensure the long-term clarity and functionality of the headlights, enhancing vehicle safety.
• Outdoor Equipment Manufacturing
  • A manufacturer of outdoor tents used the chamber to evaluate the waterproofness of a new tent design. The tent was set up inside the chamber and subjected to high pressure water jets from different angles. The testing showed that the tent fabric was highly resistant, but the zippers had some leakage issues. By upgrading the zipper design and adding a water-repellent coating, the manufacturer was able to produce a tent that could withstand even the harshest weather conditions, increasing customer satisfaction.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of waterproofing testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the customized chamber for their specific testing needs. We offer demonstrations and training, tailored to the industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or materials to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for high pressure spray testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Customized High Pressure Spray Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with waterproofing testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
