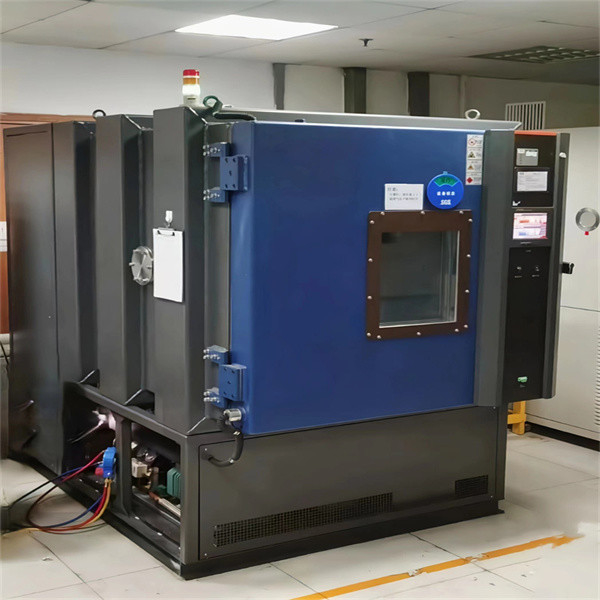

Low Pressure Climatic Test Chamber Customized for Hypobaric Environments

1. Product Name and Purpose

2. Product Features

• Robust and Airtight Chamber Construction
  • The low pressure chamber is constructed with a heavy-duty steel frame that provides exceptional strength and rigidity. The chamber walls are made of high-strength alloy materials that can withstand the significant pressure differentials. The interior is carefully sealed with advanced sealing technologies, such as double O-ring seals and vacuum-tight gaskets, ensuring an airtight enclosure. The door is designed with a reliable locking mechanism and a pressure-assisted sealing system to maintain the integrity of the low pressure environment. The chamber is also equipped with safety valves and pressure relief systems to prevent over-pressurization and ensure the safety of operators and the equipment.
• Precision Pressure Control System
  • The chamber features a highly accurate pressure control system. It can achieve a wide range of pressure levels, from near-vacuum conditions, typically as low as 10^-6 torr, to pressures equivalent to high-altitude environments, such as 10 kPa or higher. The system utilizes advanced vacuum pumps, pressure regulators, and sensors. The sensors continuously monitor the pressure inside the chamber and provide real-time feedback to the control unit. The control unit then adjusts the pumping rate and valve settings to maintain the desired pressure level with an accuracy of ±0.1% of the set value. This level of precision allows for highly controlled and repeatable experiments.
• Temperature and Humidity Regulation Capabilities
  • In addition to pressure control, the chamber also offers the ability to regulate temperature and humidity. The temperature can be maintained within a range of -40°C to +150°C, with an accuracy of ±0.5°C. The humidity control range extends from near-zero dryness to saturated conditions, with an accuracy of ±2% RH. Temperature and humidity can have significant impacts on the behavior of materials and biological samples under low pressure. The chamber's control system ensures that these environmental factors are precisely controlled, providing a more comprehensive simulation of real-world conditions.
• Intuitive Control and Data Acquisition Interface
  • The equipment is equipped with an intuitive control panel that allows operators to easily set and adjust the pressure, temperature, humidity, and test duration. The control panel also provides real-time displays of the current values of these parameters, as well as any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system. It records all relevant test data, such as pressure profiles, temperature and humidity histories, and any changes in the physical properties of the test samples. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.
• Versatile Sample Fixturing and Monitoring Options
  • The interior of the low pressure chamber is designed to accommodate a variety of sample sizes and shapes. It can be equipped with adjustable racks, trays, and holders to ensure proper sample positioning and exposure. The chamber is also fitted with observation windows and ports for connecting external monitoring and measurement devices. This allows for real-time monitoring of the samples during the test, such as the measurement of gas emissions, mechanical deformation, or biological responses. The sample fixturing is made of materials that are compatible with the low pressure and other environmental conditions and do not contaminate the test environment.

3. Specific Parameters

• Pressure Range and Accuracy
  • The chamber can maintain a pressure range from 10^-6 torr to 10 kPa or higher, with an accuracy of ±0.1% of the set value. This wide range enables the simulation of conditions from deep space vacuum to high-altitude flight. For example, in aerospace testing, components like aircraft cabin pressurization systems or satellite electronics can be tested under the exact pressure conditions they will encounter in operation.
• Temperature Range and Rate of Change
  • The temperature range of -40°C to +150°C allows for the simulation of a diverse range of climatic and thermal conditions. The rate of temperature change can be adjusted up to 10°C per minute. This rapid temperature change capability is useful for testing the thermal stability of materials and systems in combination with low pressure exposure. For instance, in the development of new materials for space exploration, their performance under rapid temperature swings in a low pressure environment can be evaluated.
• Humidity Range and Rate of Change
  • The humidity range of near-zero to saturated conditions, with a rate of change of up to 5% RH per minute, provides a comprehensive assessment of the effect of moisture on low pressure processes. High humidity can affect the behavior of biological samples or cause condensation issues on materials, while low humidity can lead to drying and cracking. The ability to control humidity precisely helps in understanding the complex interactions between low pressure, temperature, and humidity.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, with options ranging from 1 m³ to 20 m³. The payload capacity can be adjusted according to the size and weight of the test samples, with a maximum capacity of up to 5000 kg. This allows for the testing of a significant number of samples or larger and heavier products. For example, in the aerospace industry, full-scale aircraft components or even small spacecraft modules can be tested.
• Pumping Speed and Vacuum Integrity
  • The chamber is equipped with high-performance vacuum pumps that can achieve rapid evacuation to the desired low pressure levels. The pumping speed can be adjusted depending on the specific test requirements. The vacuum integrity of the chamber is maintained over time, with a leakage rate of less than 10^-9 mbar·L/s. This ensures that the low pressure environment remains stable and accurate throughout the testing period.

4. Product Functions

• Accurate Simulation of Low Pressure Environments
  • The primary function of the chamber is to provide a precise and reliable simulation of low pressure conditions. By exposing samples to controlled levels of pressure, temperature, and humidity, it allows researchers and engineers to evaluate the performance and durability of products. This is crucial for industries where low pressure exposure is a concern, such as aerospace and high-altitude research, as it helps identify potential weaknesses and allows for design improvements. For example, in the development of a new rocket engine, the chamber can be used to test the combustion process and component performance in the low pressure environment of outer space.
• Product Design Optimization and Quality Control
  • Through a series of tests on different product prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the behavior of various materials and components under low pressure and make modifications to enhance the product's overall performance and reliability. The chamber also serves as a vital tool for quality control, ensuring that each batch of products meets the required standards and specifications. For instance, in the manufacturing of aircraft windows, regular testing in the low pressure chamber can help detect any issues with seal integrity or material durability.
• Research and Development Support
  • In the field of research and development, the low pressure chamber offers valuable insights. Scientists can use it to study the fundamental properties of materials and the mechanisms of physical and chemical processes in low pressure environments. They can explore new materials and technologies that are more suitable for high-altitude or space applications. For example, biologists can investigate the effects of low pressure on living organisms, leading to a better understanding of the challenges and opportunities for human space exploration.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet industry regulations and international standards. Many industries have specific requirements regarding the performance of products in low pressure environments. The chamber can be used to perform tests according to standards such as MIL-STD-810 for military equipment or ASTM E595 for outgassing in a vacuum environment. The test results can then be used to obtain product certifications and ensure market acceptance.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The customized low pressure chamber is manufactured under strict quality control procedures. Each component, from the steel frame and alloy walls to the pressure control system, temperature and humidity regulation units, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for low pressure testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Aerospace Industry
  • A leading aerospace company used the chamber to test a new satellite communication system. The system was subjected to a combination of low pressure, temperature cycling, and radiation simulation. The testing revealed a potential issue with the signal transmission in the low pressure environment, which was due to a component's sensitivity to outgassing. By modifying the component and using a more suitable material, the company was able to improve the system's reliability and performance in space.
• Biomedical Research
  • A research institution used the low pressure chamber to study the effects of low pressure on human cells. The cells were cultured and exposed to different levels of low pressure, temperature, and humidity. The results showed that certain cellular processes were affected by the low pressure environment, providing valuable insights for understanding the physiological changes that occur during high-altitude or space travel. This research could potentially lead to the development of new countermeasures to protect astronauts' health.
• Materials Science
  • A materials research laboratory tested a new type of composite material in the low pressure chamber. The material was exposed to a range of low pressure and temperature conditions to evaluate its mechanical and thermal properties. The testing identified a unique behavior of the material under low pressure, which could be exploited for new applications in the aerospace and automotive industries. By further optimizing the material composition and processing, the researchers were able to enhance its performance in low pressure environments.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of environmental testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the customized low pressure chamber for their specific testing needs. We offer demonstrations and training, tailored to the industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or materials to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for low pressure testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the customized low pressure chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with low pressure testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
