AGREE Combined Chambers with Vibration Shaker Vertical & Horizontal

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	10/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Vibration Force:

2000kg.f

Shock Force:

2000kg.f

Displacement:

100mmp-p

Velocity:

2.0m/s

Max Acceleration:

100g

Temperature Range:

-40°C To +150°C

Humidity Range:

10% To 95%

Dimension:

100 X 100 X 100cm

Packaging Details:

Standard export packaging

Supply Ability:

10/month

Highlight:

Food And Drug Temperature Humidity Chamber

Advanced Temperature Humidity Chamber

Advanced temperature and humidity test chamber

Product Description

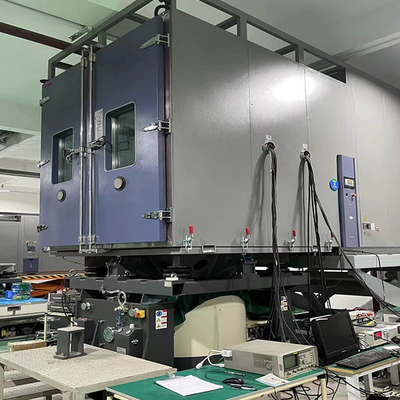

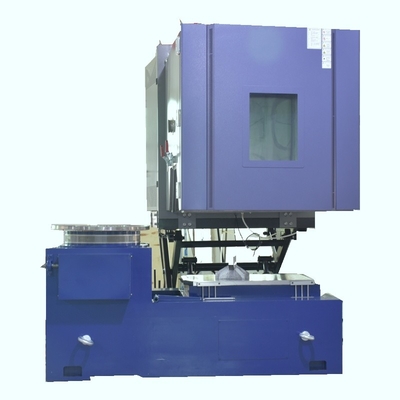

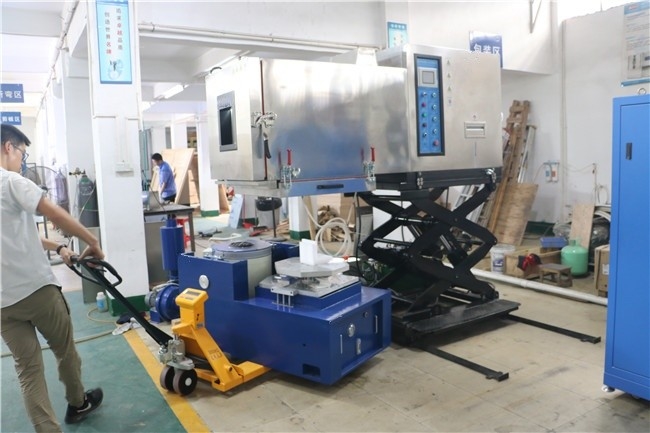

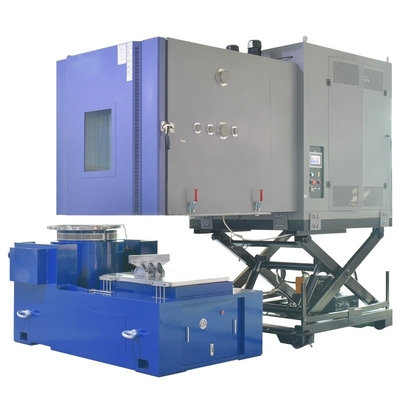

AGREE Combined Chambers with Vibration Shaker Vertical & Horizontal

Our AGREE Combined Chambers integrate temperature, humidity, and vibration testing into a single, comprehensive system, specifically designed to meet the rigorous demands of environmental stress screening (ESS) and reliability testing. This advanced chamber features a robust vibration shaker capable of operating in both vertical and horizontal orientations, providing unparalleled flexibility for simulating real-world environmental conditions.

Key Features:

Integrated Environmental Testing: Combines temperature cycling, humidity control, and vibration testing in one system.
Dual-Axis Vibration: Equipped with a powerful vibration shaker that can operate in both vertical and horizontal orientations, allowing for multi-directional vibration testing.
AGREE Test Standards Compliance: Designed to meet or exceed AGREE (Advisory Group on Reliability of Electronic Equipment) test standards.
Precise Environmental Control: Advanced control systems ensure accurate and uniform temperature and humidity conditions.
Customizable Vibration Profiles: Programmable vibration profiles allow for precise simulation of various vibration environments.
Data Acquisition and Analysis: Integrated data acquisition systems for real-time monitoring and comprehensive data analysis.
Robust Construction: Durable construction ensures reliable performance under demanding testing conditions.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Environmental stress screening (ESS)
Reliability testing
Product qualification testing
Aerospace and defense testing
Automotive component testing
Electronics reliability testing

Benefits:

Enhanced product reliability
Accelerated product development cycles
Improved quality control
Reduced testing time and costs
Increased testing flexibility

AGREE Combined Chambers with Vibration Shaker Vertical & Horizontal 0

Why Choose Us:

We specialize in providing high-quality environmental testing solutions tailored to meet the specific needs of our customers. Our AGREE Combined Chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.

Contact Us:

For more information about our AGREE Combined Chambers with Vibration Shaker (Vertical & Horizontal), please contact us today. We are committed to providing you with the best possible testing solutions.
