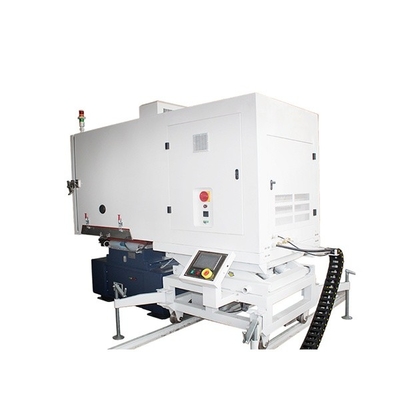

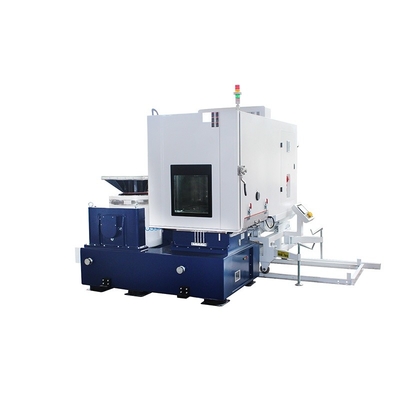

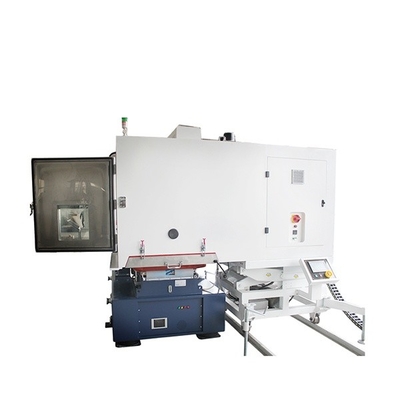

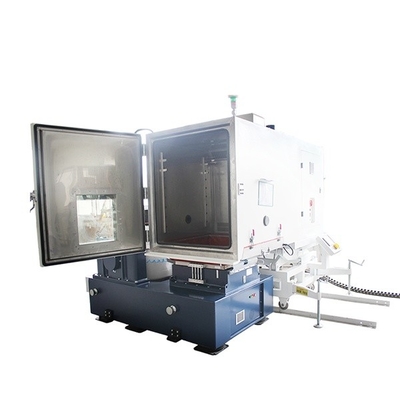

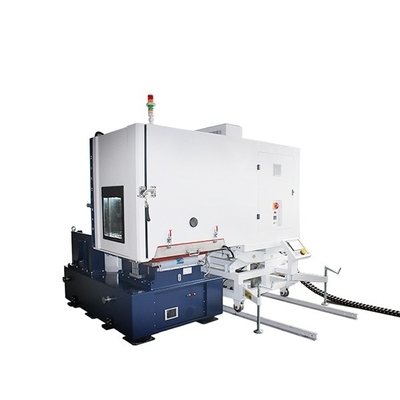

AGREE Vibration Chambers Temperature Humidity Vibration Chambers

Model Number:	VTS20/TH1000L
MOQ:	1
Price:	10000
Payment Terms:	T/T
Supply Ability:	20sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

Vibration Control:

Closed Loop Control

Internal Volume:

10 Liters To 1000 Liters

Vibration Frequency Range:

5 Hz To 2000 Hz

Temperature Range:

-70°C To +180°C

Power Supply:

220V/380V, 50Hz/60Hz

Material:

Stainless Steel

Cooling System:

Air-cooled Or Water-cooled

Vibration Modes:

Random, Sine, Sine On Random, Random On Random

Display:

LCD Touch Screen

Warranty:

1 Year

Humidity Range:

10% To 98% RH

Packaging Details:

Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Supply Ability:

20sets/month

Highlight:

touch screen vibration test chamber

touch screen agree vibration chambers

stainless steel vibration test chamber

Product Description

AGREE Vibration Chambers Temperature Humidity Vibration Chambers

Product Description:

In product testing, ensuring component and product reliability under diverse environmental stressors is vital. AGREE Temperature Humidity Vibration Chambers offer a comprehensive solution, integrating precise climate control with accurate vibration simulation.

Key Features:

Precise Environmental Control

Temperature: Equipped with advanced heating and cooling systems, these chambers cover a wide temperature range. A high - precision controller maintains tight tolerances, achieving uniform temperature distribution inside. Whether simulating Arctic cold or desert heat, the temperature can be adjusted precisely for consistent test conditions.

Humidity: The humidity control system is top - notch. Using advanced techniques, it can generate and maintain humidity levels from 10%RH to 98%RH with great accuracy. This is crucial for testing moisture - sensitive products, like electronics with delicate components.

Accurate Vibration Simulation

Vibration Generation: State - of - the - art vibration generators produce various vibration types, including sinusoidal, random, and shock. The frequency can be adjusted from 5Hz to 2000Hz, simulating real - world vibrations from transportation to industrial machinery.

Multi - Axis Vibration: Supporting X, Y, and Z axis vibrations, the chambers can subject samples to complex vibration patterns simultaneously. This creates a more realistic test environment, especially for products exposed to multi - directional vibrations in use.

User - Friendly Operation

Intuitive Interface: The control panel features a user - friendly interface. Operators can easily set temperature, humidity, and vibration parameters. Custom test profiles can be created and stored, allowing for quick recall and execution, ensuring testing consistency.

Remote Monitoring: These chambers support remote access. Authorized personnel can monitor test progress, adjust parameters, and receive alerts via a secure network connection, enhancing testing efficiency.

Robust Construction

Durable Materials: Built with high - quality materials, the chambers can withstand continuous use and harsh test environments. Components from reliable manufacturers ensure long - term reliability and minimal downtime.

Safety Systems: Multiple safety features, such as over - temperature, over - humidity, and vibration overload protection, safeguard test samples, the chamber, and operators.

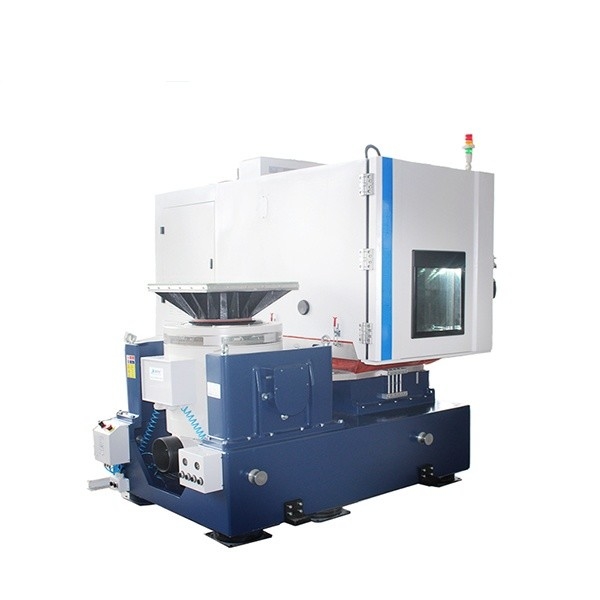

AGREE Vibration Chambers Temperature Humidity Vibration Chambers 0

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

Chamber specifications

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Product Applications

Aerospace

AGREE chambers test avionics systems and sensors. Components are subjected to extreme temperature, humidity, and vibration to ensure they function flawlessly during high - altitude flights.

Automotive

Car manufacturers use these chambers to test engines, transmissions, and in - car electronics. By simulating driving conditions, potential failures can be identified early, leading to more reliable vehicles.

Electronics

In electronics manufacturing, components like printed circuit boards and microchips are tested. The chambers help ensure products can withstand daily use, transportation, and different climates.

Defense

Defense equipment, such as communication devices and weapons systems, are tested in these chambers. They verify that the equipment can operate in harsh environments, from hot jungles to cold deserts.

Get a Customized Solution

Every testing need is unique. Our team is ready to help you find the perfect solution. Contact us for a quote, and we'll analyze your product's requirements. We'll provide a customized proposal, including the most suitable chamber model, features, and costs. Don't compromise on product reliability. Reach out today for a no - obligation quote and build products that can withstand any test.
