Rapid Temperature Change Test Chamber
Created with Pixso.

HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts

HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts

Model Number: VTS20/TH1000L
MOQ: 1
Price: 10000
Payment Terms: T/T
Supply Ability: 20sets/month
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Safety Features:
Over-temperature Protection, Over-current Protection, Phase Sequence Protection
Vibration Control:
Closed Loop Control
Internal Volume:
10 Liters To 1000 Liters
Vibration Frequency Range:
5 Hz To 2000 Hz
Temperature Range:
-70°C To +180°C
Power Supply:
220V/380V, 50Hz/60Hz
Material:
Stainless Steel
Cooling System:
Air-cooled Or Water-cooled
Vibration Modes:
Random, Sine, Sine On Random, Random On Random
Display:
LCD Touch Screen
Warranty:
1 Year
Humidity Range:
10% To 98% RH
Packaging Details:
Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging
Supply Ability:
20sets/month
Highlight:

AGREE Vibration Test Chambers 512L

,

Vibration Test Chambers for Automobile Parts

Product Description

HALT HASS & AGREE Vibration Test Chambers for Automobile & Parts



Product Description:

Ensure the ultimate reliability and durability of your automotive components with our specialized HALT, HASS, and AGREE Vibration Test Chambers. Designed to accelerate product development and identify potential weaknesses, these chambers provide comprehensive testing capabilities for the demanding automotive industry.

Key Features:

  • HALT (Highly Accelerated Life Testing):
    • Rapidly identify design flaws and operational limits.
    • Accelerated stress testing through combined temperature and vibration.
    • Step-stress testing to push products beyond their design limits.
  • HASS (Highly Accelerated Stress Screening):
    • Production screening to ensure consistent product quality.
    • Identify manufacturing defects and process variations.
    • Stress screening to eliminate early failures.
  • AGREE (Advisory Group on Reliability of Electronic Equipment):
    • Combined temperature and vibration testing to simulate real-world environmental conditions.
    • Compliance with industry standards for reliability testing.
    • Precise control of temperature and vibration profiles.
  • Customizable Chamber Sizes: Tailored to accommodate various automotive components and assemblies.
  • Advanced Control Systems: Precise control and monitoring of temperature, humidity, and vibration parameters.
  • Data Acquisition and Analysis: Comprehensive data logging and analysis capabilities for detailed test results.
  • Safety Features: Integrated safety mechanisms to protect test specimens and operators.
  • Compliance with Automotive Standards: Meets or exceeds relevant automotive industry standards (e.g., ISO, SAE).

Technical Specifications

Shaker Specifications



Rated Sine/ Random/ Shock Force

1,100 kgf/1,100 kgf/2.200 kgf

Armature Mass

11kg

Frequency Range

5-3.000 Hz

Inserts Size (Standard)

M8

Max./Continuous Displacement p-p

51 mm/ 51 mm

Load Attachment Points (Standard)

17

Max. Velocity

2.0 m/s

Natural Frequency-Thrust Axis

<3Hz

Max.Sine/ Random Acceleration

100/60g

Mac Vertical Load Support

300 kg

Armature Diameter

235 mm

Stray field @ 152 mm above table

≤1mT (10 gauss)

Fundamental Resonance frequency

2,500 Hz (nom.) ± 5%

Dimension LxWxH

940 mmx715 mmx780 mm

Allowable Armature Overturning Moment

300 Nm

Weight (Uncrated)

1.000 kg











Chamber

Dimensions (mm)

Capacity

 512L

Inner Chamber Dimensions

800×800×800mm (W width × D depth × H height mm)

Temperature Range

-40℃~+150℃

Cooling Rate

+20℃~-40℃ Average throughout the range: 2℃/min



Humidity Range

20%RH~98%RH

Overall Dimensions

1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions



Weight

1500kg



Applications:

  • Automotive electronic control unit (ECU) testing.
  • Automotive sensor and actuator testing.
  • Automotive component and assembly reliability testing.
  • Automotive system durability testing.
  • Research and development for new automotive technologies.

Benefits:

  • Accelerated product development cycles.
  • Improved product reliability and durability.
  • Reduced warranty costs and product recalls.
  • Enhanced product quality and customer satisfaction.
  • Compliance with industry standards.

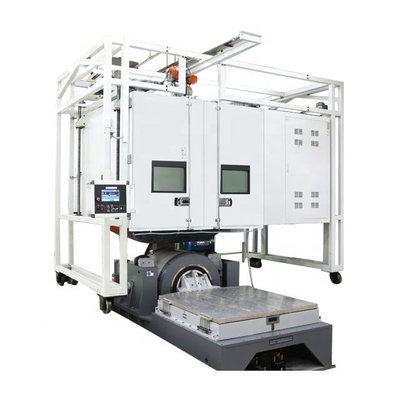

HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts 0

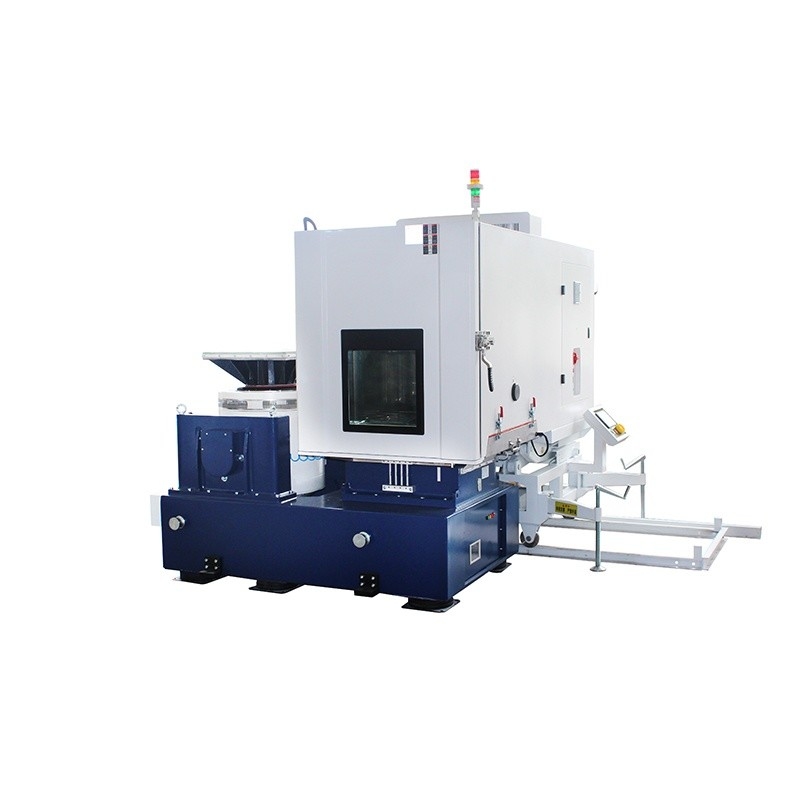

HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts 1

Why Choose Us:

We specialize in providing high-quality environmental and vibration testing solutions for the automotive industry. Our HALT, HASS, and AGREE Vibration Test Chambers are designed to meet the most demanding testing requirements, providing accurate and reliable results.

Contact Us:

Contact us today to discuss your automotive testing needs and request a personalized quote.
