Standard: | ASTM-D1148 | Function: | UV Accelerated Aging Tester |
---|---|---|---|
Control System: | Color LCD Touch Screen | Humidity Range: | 45%~90%R.H |
Power: | Electronic | Material: | SUS304 Stainless Steel Or A3 Board Baking Paint |
Temperature Range: | RT+10 °C~70°C | Temperature Fluctuation: | ±3°C |
High Light: | SUS304 uv weathering chamber,55Mm uv accelerated weathering tester,8 Lamps UV Aging Test Chamber |

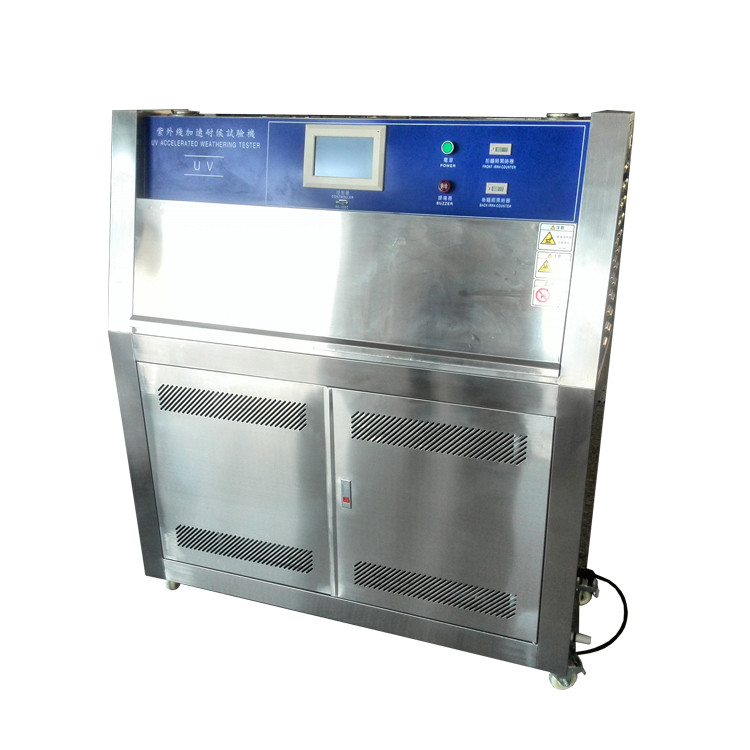

High Quality Plastic 8 Uv Lamps Climate Simulation Accelearated Weathering Testing Equipment
Application :
Weather accelerated uv aging test chamber is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products .the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.
It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.
Specification :
Model | ASR-2133A |

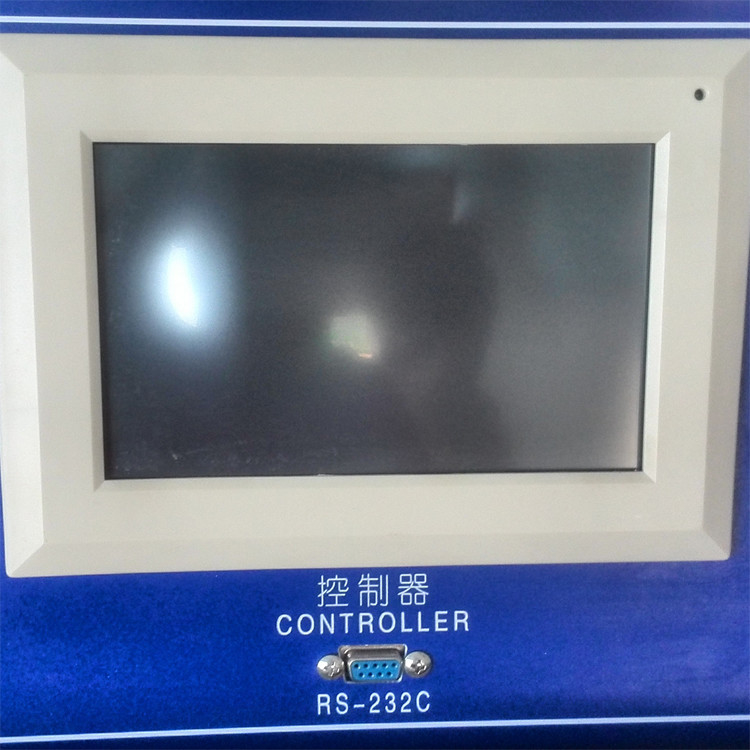

Control system | Color LCD touch screen |
Temperature range | RT+10 °C~70°C |
Temperature fluctuation | ±3°C |
Humidity range | 45%~90%R.H |
Distance between sample and lamp | 55 mm |
UV Wave length | UV-B Wave (280~315nm) or |
UV-A Wave (320~400nm) | |
Specimen size and quantity | 75x150 mm, 48 pcs |
Water and consumption | Distilled water, 8 liters / day |
Internal dimension | W1170xD450xH500mm |
External dimension | W1330xD550xH1480mm |
Power | AC 220V 50HZ 5KW |
Tube quantity | 8 lamps, imported from America |
Lamp Service Life | 1600 hours |
Weight | 150KG |
Function:
UV weathering test machine can simulate the sun, rain and dew to damage the material, the machine using UV lamp simulate the effect of sunlight, cold rain. Being tested materials are placed in a certain environment with the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Related introduction
1. UV aging test box contains UV irradiation and temperature control functions. Users can set the test time by themselves. The total test time is equipped with power outage maintenance function.The machine adopts 15W ultraviolet lamp tube as the light source, through simulating the ultraviolet radiation condition in the natural sunlight, carries on the accelerated weather resistance test to the material, obtains the weather resistance result of the material.The effective service life of the lamp tube can be about 1500 hours.
2, the company's unique structure design, beautiful and generous, more convenient for users to operate.
3, the box is made of stainless steel, durable.
Related introduction
1. UV aging test box contains UV irradiation and temperature control functions. Users can set the test time by themselves. The total test time is equipped with power outage maintenance function.The machine adopts 15W ultraviolet lamp tube as the light source, through simulating the ultraviolet radiation condition in the natural sunlight, carries on the accelerated weather resistance test to the material, obtains the weather resistance result of the material.The effective service life of the lamp tube can be about 1500 hours.
2, the company's unique structure design, beautiful and generous, more convenient for users to operate.
3, the box is made of stainless steel, durable.
Function:
UV weathering test machine can simulate the sun, rain and dew to damage the material, the machine using UV lamp simulate the effect of sunlight, cold rain. Being tested materials are placed in a certain environment with the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
