| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-MFY-01A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Application: | Negative Pressure Seal Tester Machine For Packaging | Warranty: | 1 Year |
|---|---|---|---|
| Vacuum Chamber Size: | 270mm*200 Mm Other Sizes Can Be Customized | Function: | Negative Pressure Seal Tester For Packaging Bags And Cans |
| Environmental Conditions: | Room Temperature(20±10)℃, Relative Humidity<85%, | Control Method: | Microcomputer Control, Automatic Test Procedure |
| Power: | AC220V, 50Hz | Vacuum Degree Range: | —90~0kpa |
| Highlight: | Vacuum Negative pressure seal tester,0.7MPa Vacuum sealability tester,50Hz Vacuum Seal Tester |
||

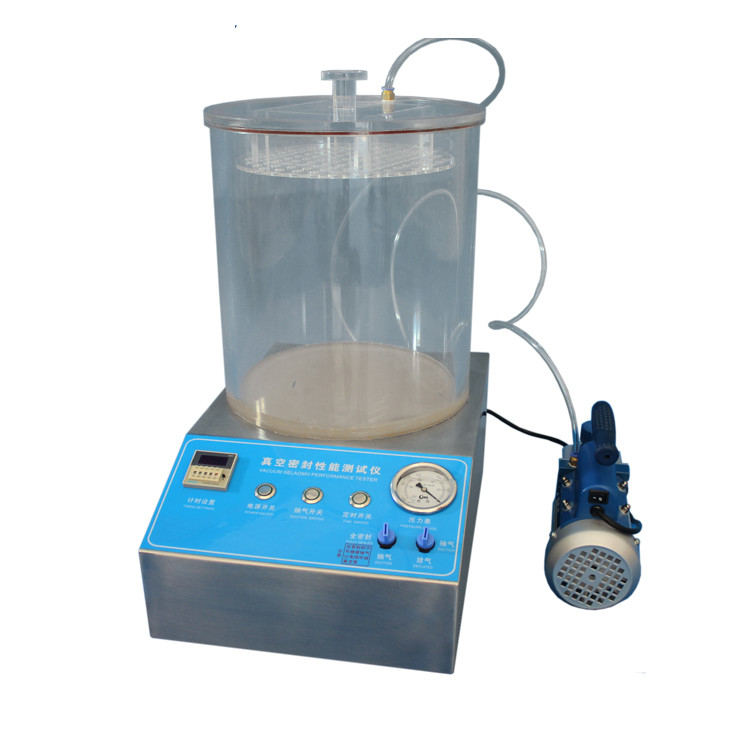

Negative Pressure Seal Tester For Packaging Bags And Cans Packaging Air Leak Tester
Application :
This machine use compression air to produce negative pressure by vacuum device to test the seal capability and processing technique of soft plastic packaging material.
It has advantages of easy operation, novel design, convenient to observe test result, especially to detect some tiny pole leak.
It is applicable in testing the seal of soft packaging in food and pharmaceutical industry, etc. It can test the seal capability of soft packaging accurately, which provides scientific date for relative technical requirement. It also can test the specimen which has done drop and compression test.
Standard:
GB/T 15171, ASTM D3078 -1994,
Parameter:
| Model | ASR-MFY-01A |
| Vacuum degree range | —90~0kpa |
| Vancuum precision | 0.1kpa |
| Resoultion | 0.1kpa |
| Vancuum chamber size | Φ270mm*200mm other size can be customized |
| Original air pressure | 0.7mpa(owned) |
| Control method | Microcomputer control, antomatic test procedure |
| Dimensions | Host:320*420*120mm,Sealed vacuum barrels:Φ300*3.5mm |
| Environmental conditions | Room temperature(20±10)℃,relatice humidity<85% |
| Power supply | AC220V±10%,50HZ |
| Package Size | 460*360*530mm |
| Net weight | 15kg |
| Gross weight | 24kg |
